Mk3p-1 Mjer 11 Pins General-Purpose Relay 10A 250VAC/28VDC 250VAC/7A

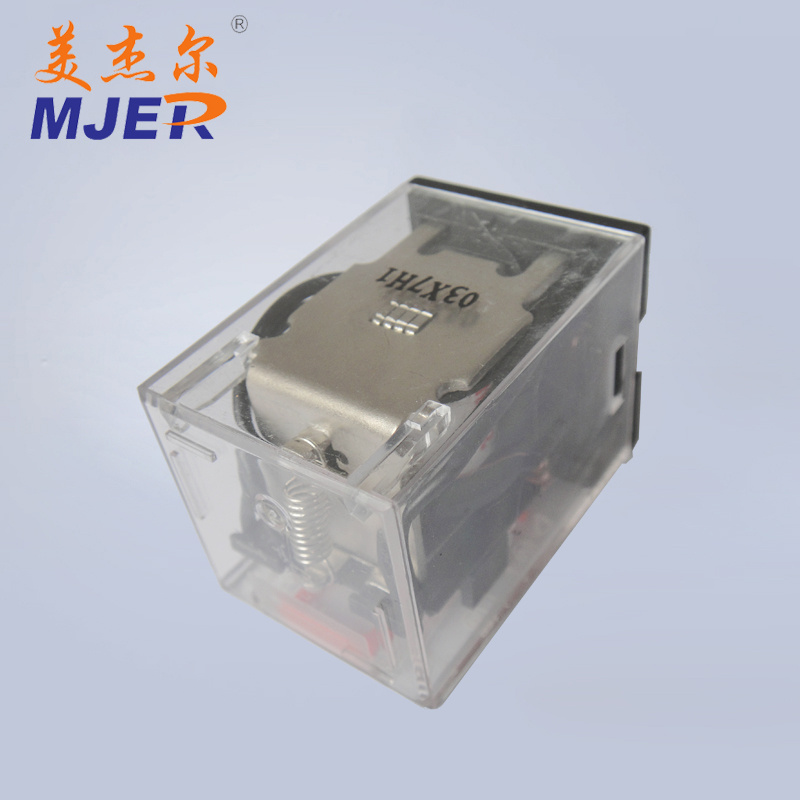

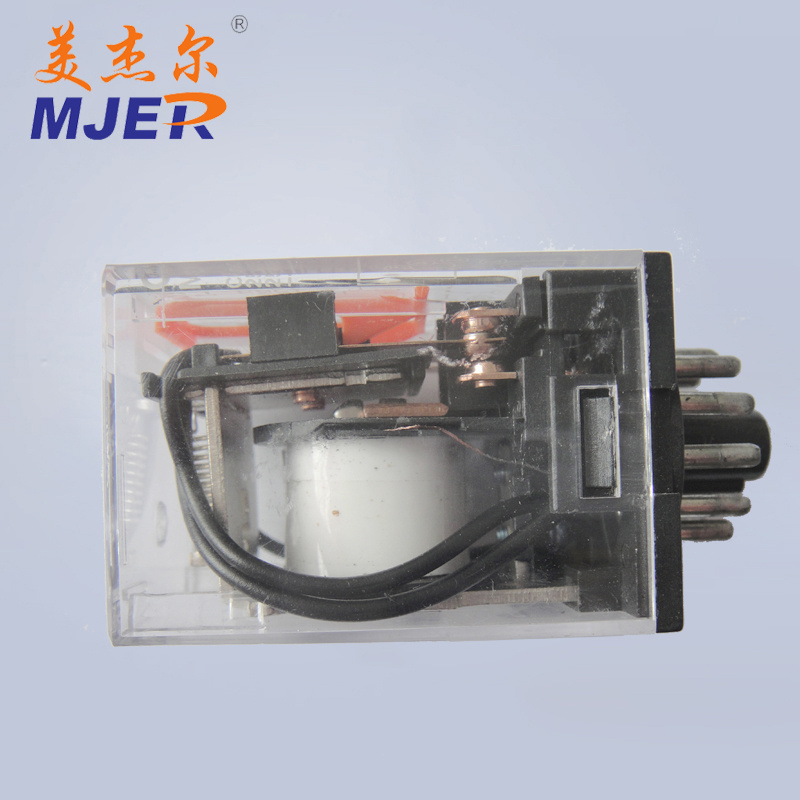

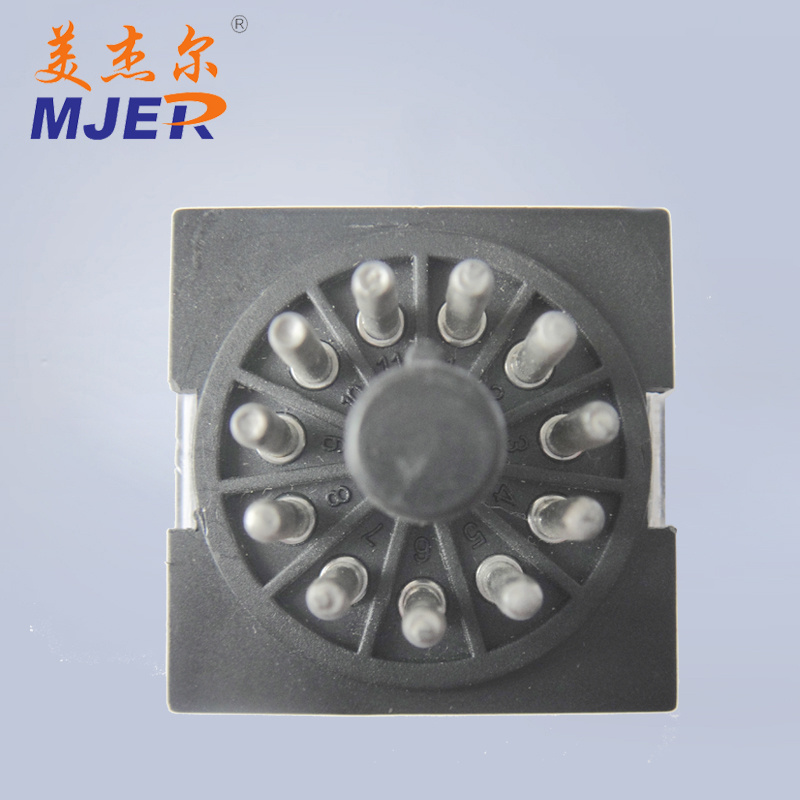

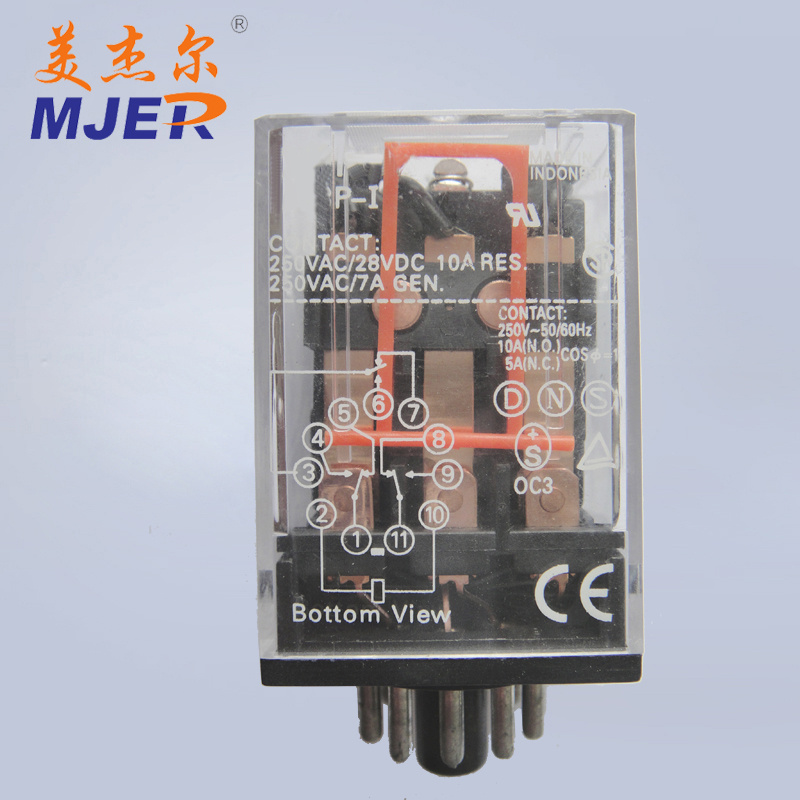

Name: Mk3p-1 Mjer 11 Pins General-Purpose Relay 10A 250VAC/28VDC 250VAC/7A
Brand: all-electronics-online.com
SKU: 814028755
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	US $ 3.5-5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MK3P-1
OEM:	Yes
Supply Voltage:	12/24VDC, 24/110/220/380V
MOQ:	5PCS
Lead Time:	15days
Guarantee:	Over 2 Years

Product Description

Product Description:

220VAC General-Purpose Relay with CE (MK3P-1)

Rated Voltage	Pick-up Voltage VDC (Max)	Drop-out Voltage VDC (Min)	Coil Resistance (Ω) ± 10%	Nominal oerating Power	Max Allowable Voltage
12VDC	9	1.2	96	1.5VV	110% of nominal voltage
24VDC	18	2.4	384	1.5VV	110% of nominal voltage
48VDC	36	4.8	1536	1.5VV	110% of nominal voltage
110VDC	82.5	11	8070	1.5VV	110% of nominal voltage
12VAC	9.6	3.6	19	2.7VA	110% of nominal voltage
24VAC	19.2	7.2	75	2.7VA	110% of nominal voltage
48VAC	38.4	14.4	300	2.7VA	110% of nominal voltage
220VAC	176	66	6270	2.7VA	110% of nominal voltage

General:

Relay is a kind of automatic switching component with isolation function, which is widely used in
remote control, remote measuring, telecom, automatic control, integration of machinery and
electrification, electric and electronic equipments. It's one of the most important controlling
components.

Generally, relays have the inductive organ (input part) that can reflect the input value (such as
current, voltage, power, impedance, frequency, temperature, pressure, speed, light etc.); have
the executive organ (output part) that has the capability of switching the controlled circuit "on" or
"off"; between the input and output parts, there is the medium organ (actuator) that can make
input value coupling-isolation and drive the output part.

As a kind of controlling component, generally, relay mainly has the following functions
1) To enlarge the range of control. E.g., when the controlling signal of a multi-contacts relay
reaches a certain value, according to the different forms of the contacts, it can synchronously
change over, close or open several circuits.
2) Enlargement. E.g., sensitive relays and medium relays can control a high-power circuit with
minute controlling power.
3) To integrate signals. E.g., when several controlling signals are put into a multi-winding relay in
the stated form, the relay can realize the expectant controlling function by analyzing the different
signals.
4) Automatization, remote control and monitoring. E.g., in automatic equipments, the relays and
other electronic components can constitute program-controlled circuit, realizing the automatic
operation

Applications:

Prepayment energy meter
Smart meter
Concentrated meter reading system
Street lamp control system
Compound switch, Combination switch
Automatic control device/ system
AMR system
Elevator control
