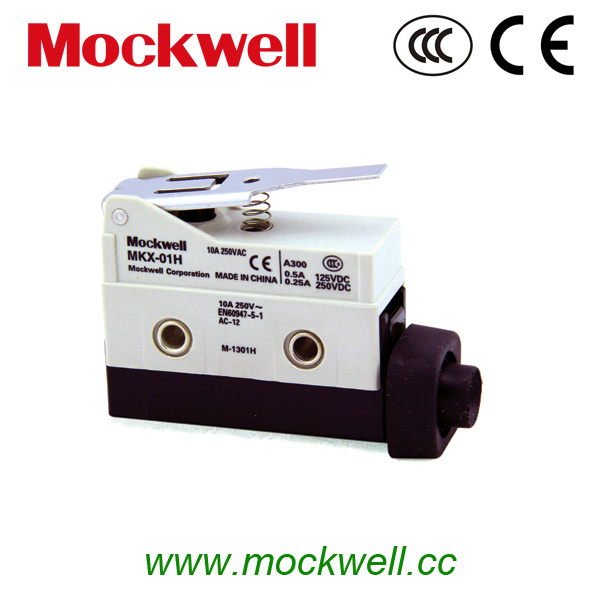

Mkx-01h High Utility Enclosed Limit Switch

Prod Model:	MKX-01H
Rated Current:	10A
Pressing Type:	Short Arm
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Industrial
Brand:	Mockwell

Product Description

High Utility Enclosed Switch
Enclosed Switches with Built-in Basic Switches for High Repeatability.
Virous of actuators,the operation position is adjustable.
Outer shell covered with intensive plastic,water-proof and oil-proof.The mechanical strenth is better than MNX type of micro swith,bear hitting.

Ordering information:

Model	Actuators	can be replacement of:
MKX-01H	Short hinge lever	D4MC-1020
MKX-02H	Long hinge lever	D4MC-1000
MKX-03H	Short hinge roller lever	D4MC-2020
MKX-04H	Long hinge roller lever	D4MC-2000
MKX-05H	One-way action short hinge roller lever	D4MC-3030
MKX-07H	panel mount plunger	D4MC-5000
MKX-08H	panel mount roller plunger	D4MC-5020
MKX-09H	Panel mount crossroller plunger	D4MC-5040

Technical parameter:

Ambient operating temperature	-10-80ºC
Ambient operating humidity	35-95%RH
Virbration resistance	0-55Hz,
Operating frequency	240times/minute max
Rated voltage	250V
Mechanical life	10,000,000times
Electrical Life	500,000times min
