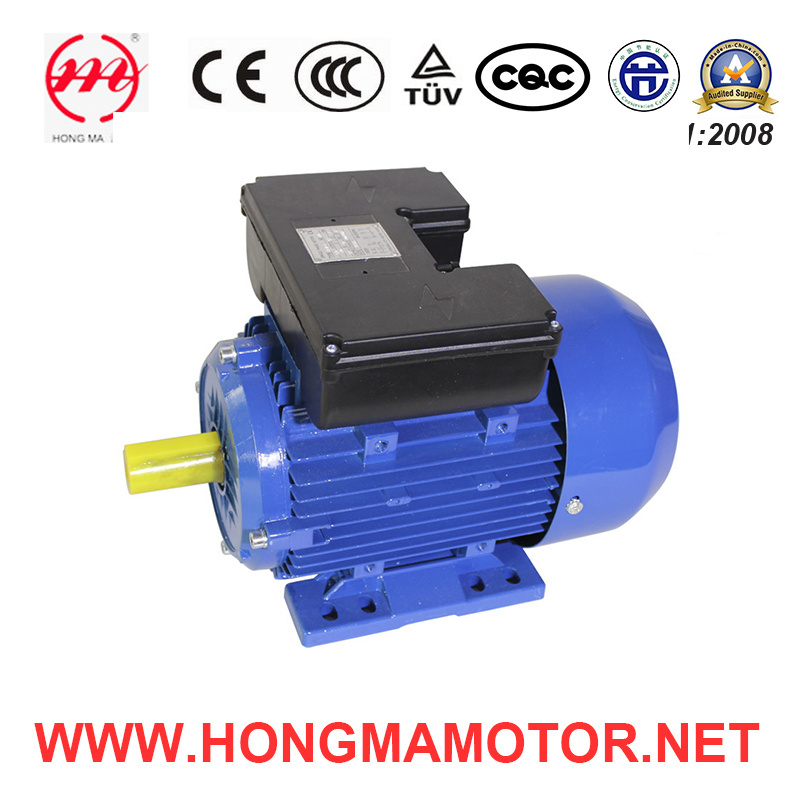

Ml (YL) Single Series/Ml Series Single-Phase Dyadic Capacitance Induction Motors
| Price: |
US $ 40-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
712-4-----562-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
H80mm~H132mm |
| Poles: |
2, 4, Poles |
| Rated Power: |
0.55kw-5.5kw |
| Frequency: |
50Hz, 60Hz |
| Insulation Class: |
B\F |
| Rated Voltage: |
220V240V |
| Protection Class: |
IP54 IP55 IP44 |
| Cooling Method: |
IC411 |
| Synchronous Speed: |
3000, 1500rpm |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Casing Protection: |
Protection Type |
| Species: |
Ml Series Single-Phase Dyadic Capacitance Inductio |
| Number Of Poles: |
2.4 |
| Starting Mode: |
Resistance Starting Capacitor Running |
| Brand: |
Hongma |
Product Description
ML Series Single-Phase Dyadic Capacitance Induction Motors ML series aluminum housing single-phase dual-capacitor asynchronous motors, with latest design in entirety, are made of selected quality materials and conforming to the IEC standard. ML motors have good performance, safety and reliable operation, nice appearance and can be maintained very conveniently, while with low noises, little vibration and at the same time of lightweight and simple construction. The composite performance is good, and the multiple of starting torque is 1.8~2.5. ML series Characteristics:Frame Size: H80mm~H132mmPower: 0.55~5.5KWSynchronous Speed: 3000, 1500rpmVoltage: 220/240VFrequency: 50HZ, 60HZProtection Class: IP44, IP54, IP55Insulation Class B; FAmbi. Temperature -20~+40 °CAltitude Above Sea Level: ≤1000M | TYPE | POWER | VOLTAGE | FREQUENCY | CURRENT | SPEED | EFF | POWER FACTOR | Ts/Tn |
| KW | V | HZ | A | RPM | % | COSΦ | |
| ML801-2 | 0.75 | 220 | 50 | 4.9 | 2800 | 73 | 0.95 | 1.8 |
| ML802-2 | 1.1 | 220 | 50 | 7 | 2800 | 75 | 0.95 | 1.8 |
| ML801-4 | 0.55 | 220 | 50 | 3.9 | 1400 | 69 | 0.92 | 1.7 |
| ML802-4 | 0.75 | 220 | 50 | 5 | 1400 | 71 | 0.95 | 1.7 |
| ML90S-2 | 1.5 | 220 | 50 | 9.1 | 2800 | 76 | 0.98 | 1.8 |
| ML90L-2 | 2.2 | 220 | 50 | 13.2 | 2800 | 77 | 0.98 | 1.7 |
| ML90S-4 | 1.1 | 220 | 50 | 7.2 | 1400 | 73 | 0.95 | 1.7 |
| ML90L-4 | 1.5 | 220 | 50 | 9.6 | 1400 | 75 | 0.95 | 1.7 |
| ML100L-2 | 3 | 220 | 50 | 18.1 | 2800 | 79 | 0.95 | 1.7 |
| ML100L1-4 | 2.2 | 220 | 50 | 13.85 | 1400 | 76 | 0.95 | 1.7 |
| ML100L2-4 | 3 | 220 | 50 | 18.6 | 1400 | 77 | 0.95 | 1.7 |
| ML112M-2 | 3.7 | 220 | 50 | 22.1 | 2800 | 80 | 0.95 | 1.7 |
| ML112M-4 | 3.7 | 220 | 50 | 22.4 | 1400 | 79 | 0.95 | 1.7 |
| ML132S-2 | 5.5 | 220 | 50 | 32.5 | 2800 | 81 | 0.95 | 1.7 |
| ML132S-4 | 5.5 | 220 | 50 | 32.9 | 1400 | 80 | 0.95 | 1.7 |

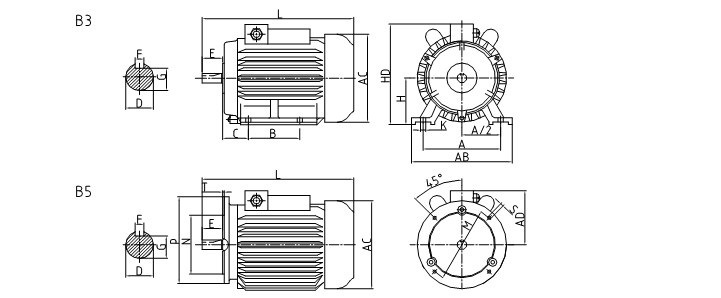

| Frame No. | Flange
No. | Pole | Mounting Dimensions | Overall Dimensions |
| | | | A | A/2 | B | C | D | E | F | G | H | KD | M | H | PD | RD | SD | T | AB | AC | AD | HD | L |
| 80 | FF165 | 2,4 | 125 | 62.5 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 165 | 175 | 150 | 210 | 355 |
| 90S | FF165 | 2,4 | 140 | 70 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 12 | 3.5 | 180 | 195 | 160 | 250 | 380 |
| 90L | FF165 | 2,4 | 140 | 70 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 12 | 3.5 | 180 | 195 | 160 | 250 | 405 |
| 100L | FF215 | 2,4 | 180 | 80 | 140 | 63 | 28 | 60 | 8 | 21 | 100 | 12 | 215 | 180 | 250 | 15 | 4 | 205 | 215 | 180 | 260 | 455 |
| 112M | FF215 | 2,4 | 190 | 95 | 140 | 70 | 28 | 60 | 8 | 21 | 112 | 12 | 215 | 180 | 250 | 15 | 4 | 245 | 240 | 190 | 285 | 475 |
| 132S | FF265 | 2,4 | 216 | 108 | 140 | 80 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 15 | 4 | 280 | 275 | 210 | 335 | 550 |
