| Prod Model: |
GPS Vehicle Tracking device TK303H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Coban GPS Tracker Tk303h |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC Coban GPS Tracker |
| Weight: |
65g |
| Feature: |
Internal Antenna, External SIM&SD Access |
| Engine Shut: |
Yes |
| Similar As GPS103A: |
Shut Engine off, Fuel Sensor, External Power off |
| GPRS Dual Protocol Communication: |
TCP / UDP Switch |
| Battery: |
GPS Internal Battery |
| Operating Principle: |
GPS Position, GSM Network Transmit |
Product Description

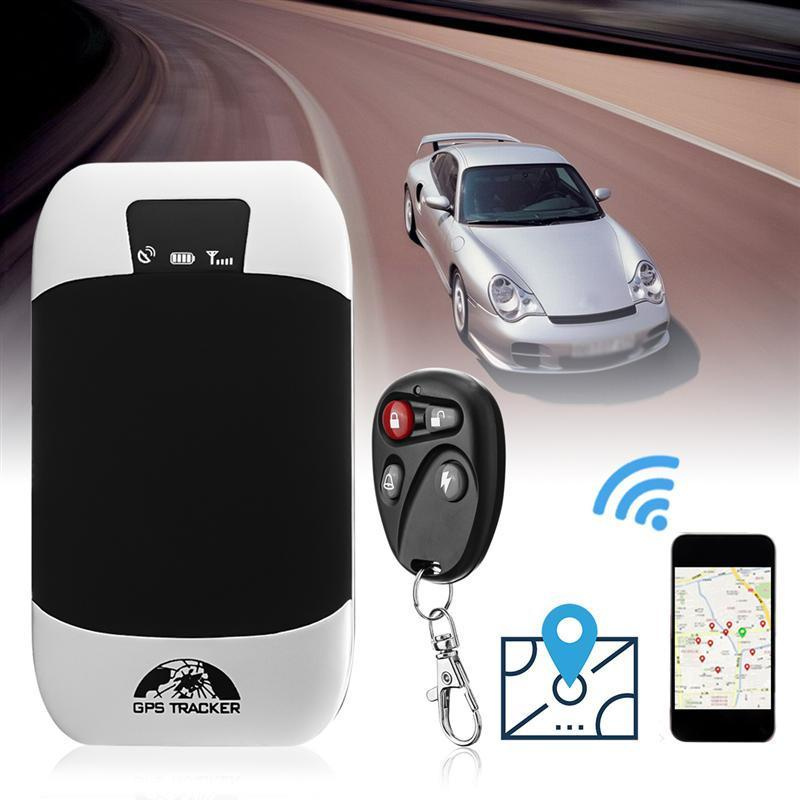

mobile apps Real Time Tracking GPS Tracker Tk303h with Relay Stop Car
2017.4.27
Model: GPS303H/I ,insert sim card without opening compare to GPS303F/G
H without remote controller ,I with
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker
2. Main Function Description
*Mini and waterproof design
*Built-in GSM, GPS antenna, Shock sensor,elegant appearance.

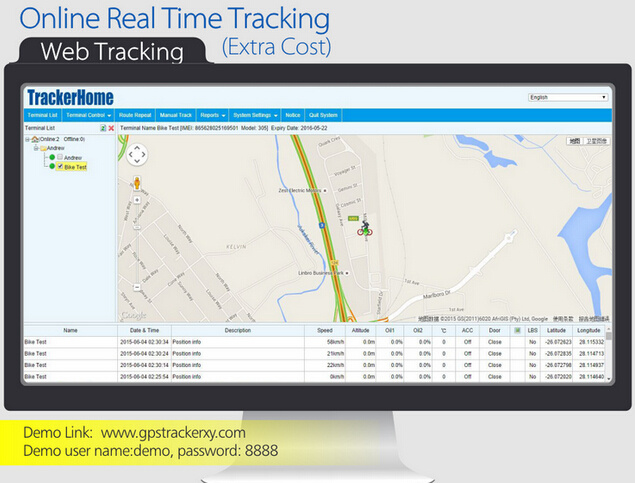

*Google maps GPS car tracking system
*Support fuel sensor for fuel level monitor
*Get location in real street/address name, send "address+pas Google maps GPS car tracking system
with remote controller GPS tracker sword to tracker.
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low battery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, Shock ALARM
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
New Functions:
1. ACC working inform when track with unlimited times upon time interval
2. Decide how many times of alarm message
3. Calibration of fuel sensor
4. Built in Acceleration Sensor Alarm
Optional accessories:
* Fuel sensor for monitor fuel
* Alarm siren
* SD card
4.application
Used widely for vehicle and car rental, Fleet management etc .
Specification: | Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
