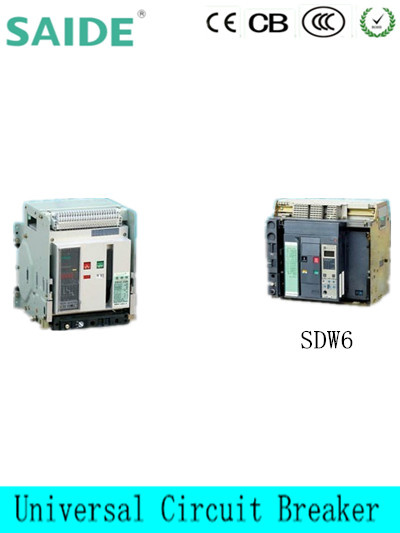

Model Dw45 Series Intelligent Air Circuit Breaker/Acb

Name: Model Dw45 Series Intelligent Air Circuit Breaker/Acb
Brand: all-electronics-online.com
SKU: 818847585
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 900-1000/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW45
Color:	White
Functional:	Overload, Undervoltage, Short-Circuit
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

1.Application

DW45 universal circuit breaker is mainly designed for distributing systems of 50/60Hz, 400/690V, 400~6300A. The purpose of this equipment lays in power distribution & protection against malfunction such as overload, undervoltage, short-circuit, etc.

DW45 universal circuit breaker is in compliance with GB14948.2 & IEC60947-2 standards, 3C approved.
2.Date

Model		DW45-2000		DW45-3200	DW45-4000	DW45-6300

Structural level max current		2000		3200	4000	6300

Rated current In(A)		400,630,800,1000,1250,1600,2000		2000,2500,3200,4000	4000	4000,5000,6300

Rated voltage Ue(V)		AC400,AV690		AC400,AV690	AC400,AV690	AC400,AV690
Rated insulation voltage Ui(V)		1000		1000	1000	1000

Rated voltage withstand voltage Umip(kV)		8000		8000	8000	8000
Rated ultimate short-circuit breaking capacity Icu(kA)		400V	80	100	100	120
		690V	50	65
Rated working short-circuit breaking capacity Ics(kA)		400V	50	80	80	100
		690V	40	50
Rated short period withstand current Icw(kA)		400V	50	80	80	85
		690V	40	50
Wiring type		Upper wiring & lower wiring		Upper wiring & lower wiring	Upper wiring & lower wiring	Upper wiring & lower wiring
Arc distance (mm)		0		0	0	0
working lifespan	Electrical	1000		500	500	500
	Mechanical	9000		4500	3000	1500
Power comsuption(W)		360		1200	1200	2000

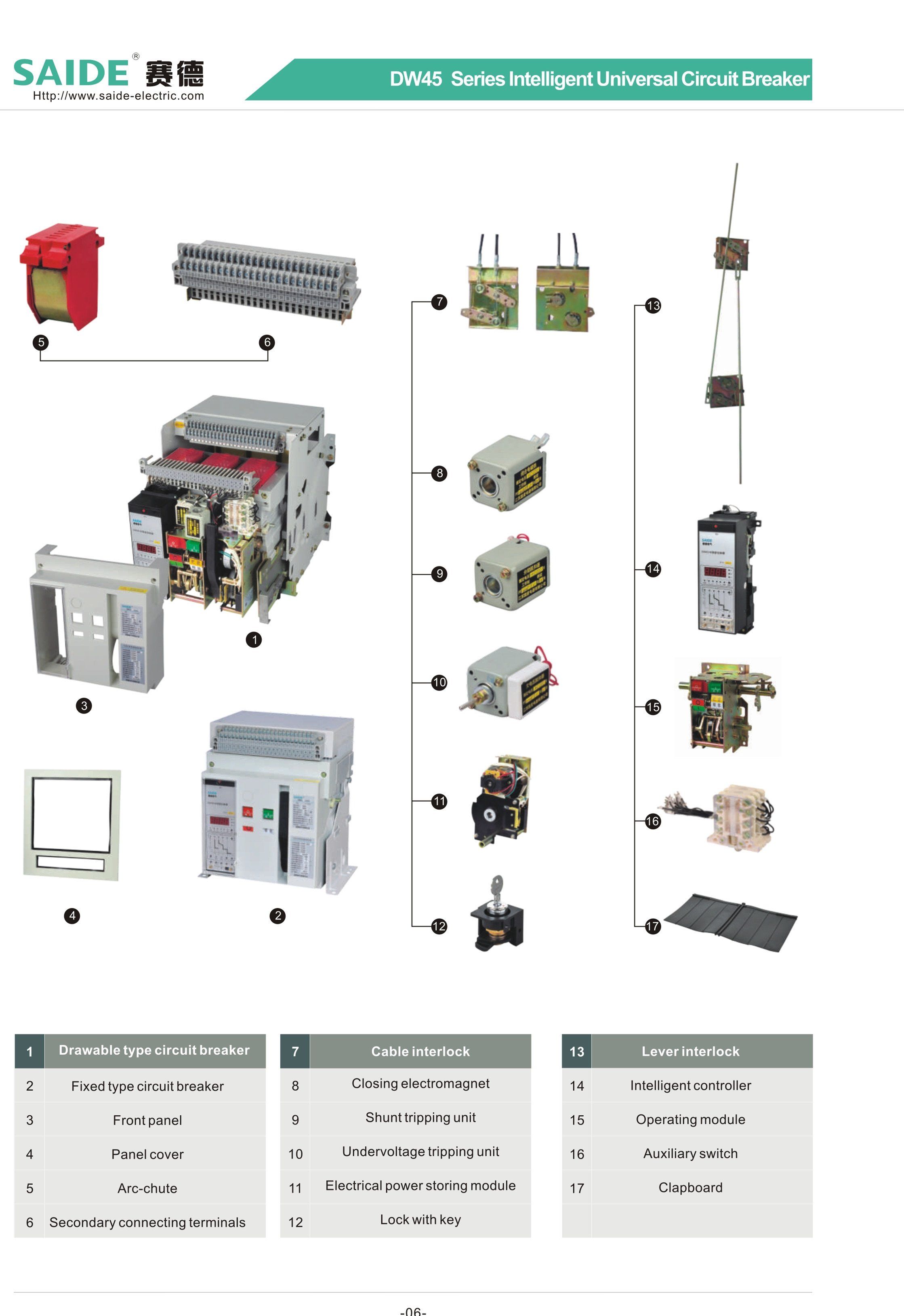

3.Catelog

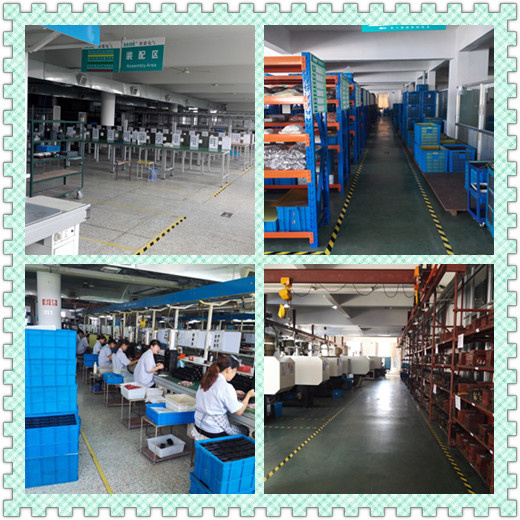

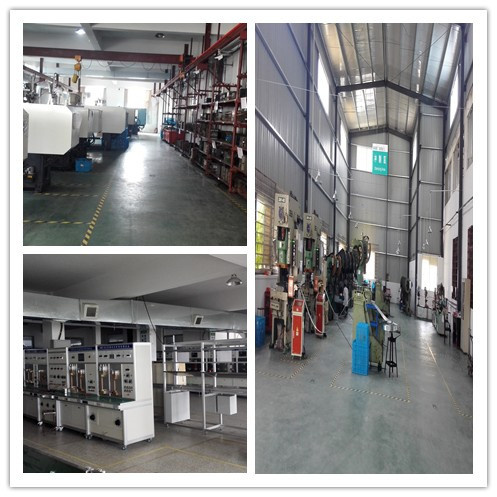

4.About Us

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
