Model La139 Series Pushbutton Switch

Name: Model La139 Series Pushbutton Switch
Brand: all-electronics-online.com
SKU: 749376855
Availability: InStock
Rating: 4.8 (74 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LA139
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	La139
Usage:	Start Button
Kind:	Single-pole on-off Switch

Product Description

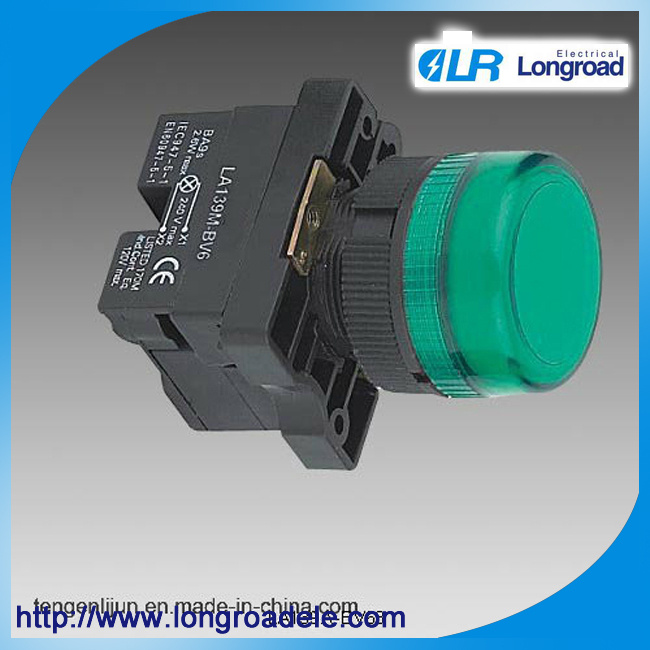

SIgnalling units Φ22 Ip40

Description	Scheme	Supply voltage	Color	Reference
Direct supply (1)
For using with incandescent bulb (included) BA 9s base fitting		130V 50/60Hz		LA139M-EV133
				LA139M-EV134
				LA139M-EV135
				LA139M-EV136
For using with incandescent bulb (included) BA 9s base fitting		≤250V 50/60Hz		LA139M-EV161
				LA139M-EV163
				LA139M-EV164
				LA139M-EV165
				LA139M-EV166
				LA139M-EV167
For using with incandescent bulb (included) E10/13 base fitting		≤250V 50/60Hz		LA139M-EV661
				LA139M-EV663
				LA139M-EV664
				LA139M-EV665
				LA139M-EV666
				LA139M-EV667

(1) Bulb types for using with direct supply: incandescent bulb U≤250V, max.power 3W, max.diameter length 28 mm.

For using with neon bulb (included) BA 9s base fitting	240V~50/60Hz 220/240V bulb 400V~50/60Hz 380/415V bulb	LA139M-EV443
		LA139M-EV444
		LA139M-EV445
		LA139M-EV446
		LA139M-EV447
	230V~50/60Hz 130V bulb	LA139M-EV453
		LA139M-EV454
		LA139M-EV455
		LA139M-EV456
		LA139M-EV457

Supply direct through resistor

For using with incandescent bulb (included) BA 9s base fitting		LA139M-EV171
		LA139M-EV173
		LA139M-EV174
		LA139M-EV175
		LA139M-EV176
		LA139M-EV177
BA 9s 6.3V/24V bulb supplied	220V~240V/6.3V 50/60Hz	LA139M-EV61
		LA139M-EV63
		LA139M-EV64
		LA139M-EV65
		LA139M-EV66
BA 9s 6.3V/24V bulb supplied	220V~240V/6.3V 50/60Hz	LA139M-EV71
		LA139M-EV73
		LA139M-EV74
		LA139M-EV75
		LA139M-EV76
Direct BA 9s	≤380V	LA139M-EV3361
		LA139M-EV3462
		LA139M-EV3561
		LA139M-EV3661
BA 9s, 130V Direct through resistor BA 9s,130V bulb supplied	220V 250V	LA139M-EV3371
		LA139M-EV3472
		LA139M-EV3571
		LA139M-EV36

Long Road Electric Co. Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric specialized in the SMC, DMC and PLASTIC materials energy meter boxes Manufacturing, International trade and service.

Long Road Electric Co, Ltd regards quality of products as life, Longroad Electric Co., Ltd has been granted ISO9001 management system certifications. The comprehensive product line has more than 100 models which have been approved by TUV, CE, CB, SGS, RoHS, SASO. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 70 countries and regions.

Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
