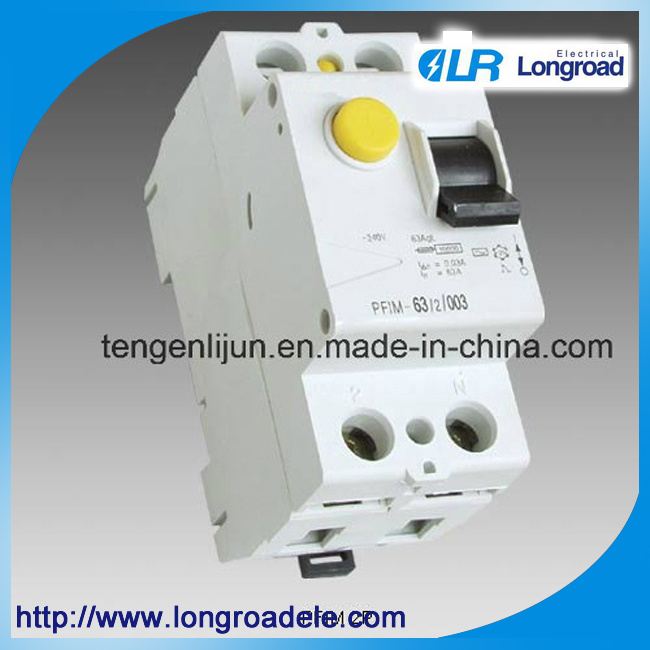

Model Pfim Residual Current Device

Prod Model:	PFIM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Pfim
Number Of Poles:	2p, 4p
Rated Current (a):	16, 20, 25, 40, 50, 63
Short Circuit Capacity (ICU):	3000A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CE
Structure:	Conventional Circuit Breaker
Poles Number:	2,4
Type:	RCCB

Product Description

Application
The Residual Current Device PFIM is in conformity with the standard of IEC61008.
It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
PFIM RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, guesthouses and families. It can be used in circuits of 1 phase 230V and 3 phases 400V 50/60Hz.

Number of Poles	2P, 4P
Rated Current (A)	16, 20, 25, 40, 50, 63
Rated Residual Operating Current (lΔn)(mA)	30, 100, 300, 500
Rated Residual Non-operation Current (lΔno)(mA)	≤0.5lΔn
Rated Voltage (V)	AC 230/240
Residual Current Off-time	≤0.1S
Short Circuit Capacity (Icu)	3000A
Endurance	≥4000
Protection Degree	IP20
