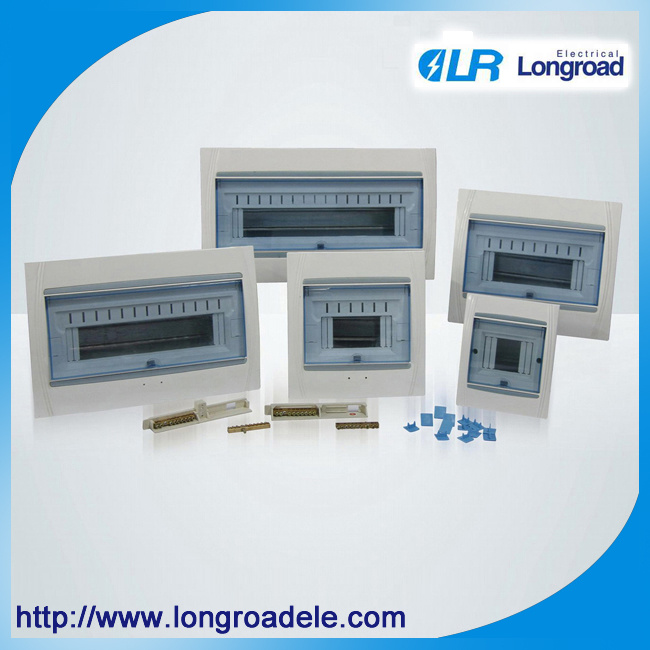

Model Sh Series Distribution Box

Prod Model:	SN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circuit:	AC of 50Hz
Rated Voltages:	220V and 380V
Model:	Sh
Ways:	4, 6, 9, 13, 16, 26, 32
Type:	Lighting
Brand:	Tengen/OEM

Product Description

1. General
+SH series of luxury lighting box is divided into two kinds, Wall inner mounted type and Surface mounted type. It is with plastic panel and iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing. This product is applicable to the modular terminal circuit with AC of 50Hz, rated voltages of 220V and 380V.
2. Features
+Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.
+The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position
+The distribution box is able to regulate the height automatically within a certain range from the outer wall.
+Surface mounted and Wall inner mounted
+Ways: 4, 6, 9, 13, 16, 26, 32

Way	L(mm)	W(mm)	H(mm)
4	137	161	82
6	208	208	95
9	261	208	95
13	334	208	95
16	390	208	95
26	334	416	95
32	390	416	95
