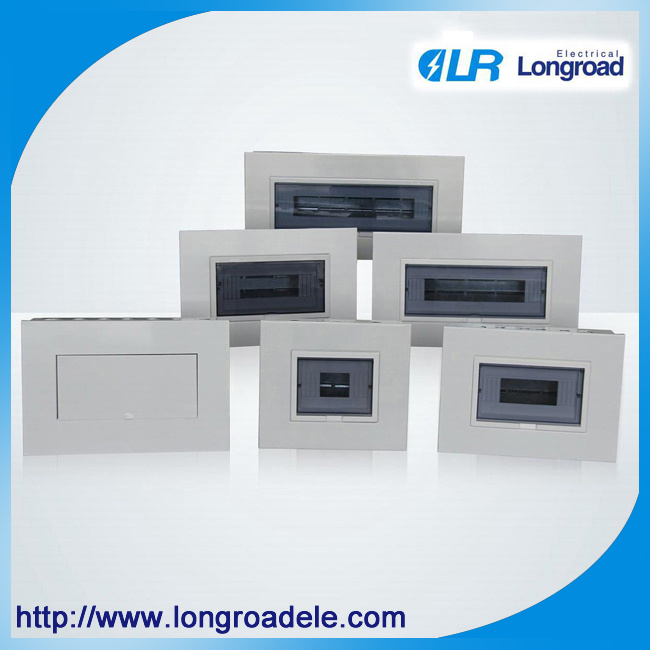

Model Tgps Distribution Box

Prod Model:	TGPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Tgps
Rated Voltage(V):	220V and 380V
Heigth(mm):	90
Units:	7, 10, 12, 16, 20, 24, 32, 40, 60
Type:	Lighting

Product Description

1. General
+TGPS series of luxury lighting box is divided into two kinds, Wall inner mounted type and Surface mounted type. It is with plastic panel and iron bottom. Mounting rails, wire, wiring terminal and electrical compoents. This product is applicable to the modular terminal circuit with AC of 50Hz, rated voltages of 220V and 380V.
There are three combinations of the TSPS series distribution box, sigle layer, double layters and three layers. If one unit is 18mm, one layer can be installed 20 units, and double layers can be installed 40 units, three layers can be installed 60 units.
2. Features
+Surface mounted and Wall inner mounted
+units: 7, 10, 12, 16, 20, 24, 32, 40, 60

Ways	L(mm)	W(mm)	H(mm)
7	270	222	90
10	324	222	90
12	360	222	90
16	432	222	90
20	504	222	90
24	360	454	90
32	432	454	90
40	504	454	90
48	432	674	90
60	504	674	90
