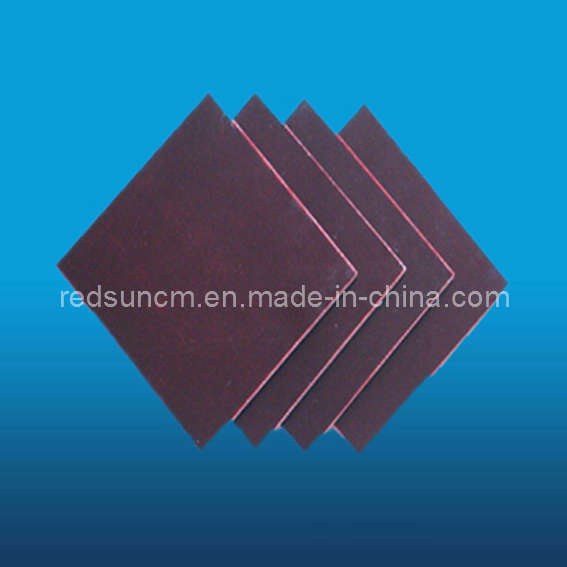

Modified BMI Glass Fabric Laminate

Name: Modified BMI Glass Fabric Laminate
Brand: all-electronics-online.com
SKU: 670391452
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electrical Base, Shell

Product Description

Temperature classification is H. High heat resistance and bonding strength as well as excellent electrical and mechanical properties. Used as the structural parts of insulating slot and wedge for Class H pulling motors and huge generators.

Nominal thickness mm	Tolerance mm	Nominal thickness mm	Tolerance mm
0.2	± 0.07	5.0	± 0.48
0.3	± 0.07	5.5	± 0.48
0.4	-	6.0	± 0.58
0.5	± 0.14	6.5	± 0.58
0.6	-	8.0	± 0.68
0.8	± 0.14	10.0	± 0.80
1.0	± 0.22	12.0	± 1.00
1.2	± 0.22	14.0	± 1.00
1.5	± 0.22	16.0	± 1.30
1.6	-	20.0	± 1.30
1.8	± 0.28	25.0	± 1.50
2.0	± 0.28	30.0	± 1.50
2.5	± 0.33	35.0	± 2.00
3.0	± 0.33	40.0	± 2.00
3.5	± 0.33	45.0	-
4.0	± 0.38	50.0	± 2.50
4.5	± 0.38
Note: 1. The other tolerances are negotiated by customer and supplier. 2. The tolerance of preferred thickness should adopt the bigger one if the one of preferred thickness for nominal thickness is not listed in the table. 3. Normal dimension: 960± 15mm× 1460± 15mm, 960± 15mm× 1960± 15mm

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
