| Prod Model: |
EP1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Frequency Modified Sine Wave Power Inverter |
| Output Waveform: |
Modified Sine Wave Output |
| Rated Power: |
720W-1440W |
| AC Charge Current Range: |
10A/20A |
| Battery Voltage: |
12V/24V |
| Frequency: |
50Hz/60Hz Auto Sensing |
| Protection: |
Overload, Short Circuit Protection |
| Display: |
LCD Display |
| Warranty: |
12 Months |
| Color: |
Red |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Home Theater |
| Brand: |
OEM or ODM |
Product Description

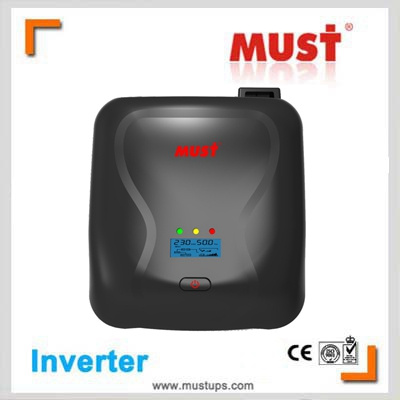

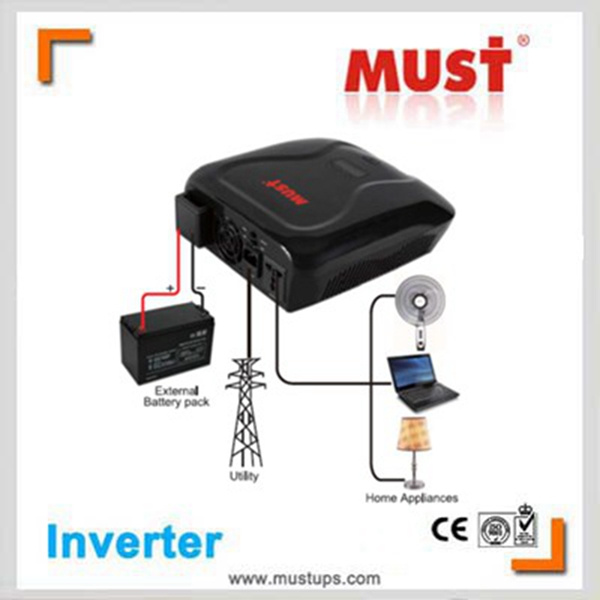

1.About the EP1000 series Low Frequency Power Inverter:EP1100 720W 1440W modified sine wave inverter applied to TV, stereos, laptops, desktop computers, and other home appliances. It will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
2. What's the main Features of EP1000 PK series?
. Charge current 10A/20A adjustable
. Double layer PCB board
. Compact size for convenient use
. Three-Steps intelligent charge controller
. With battery reverse protection function (optional)
. Home use, for DVD, TV, lights, and fans
. With battery cable 10AWG 60cm

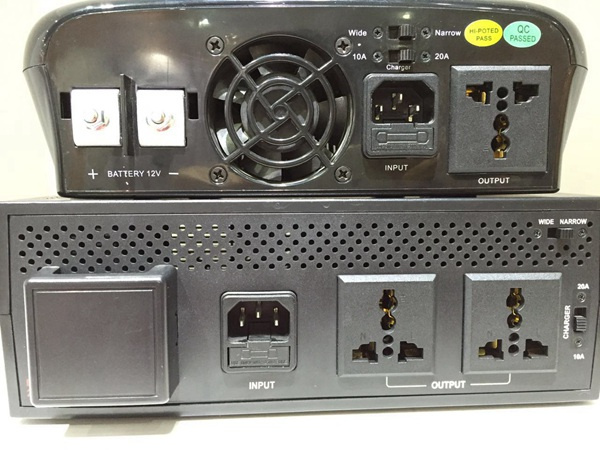

3. Back Terminals of EP1000:
1) DC input connector (Battery terminal)
2) AC input
3) Output receptacles
4) Input voltage range selector: input voltage range is definedin specification chapter, and output voltage is the same as input voltage in 'main' mode
5) Charge current selector: 10A/20A adjustable
4. Specifications of the EP1000| MODEL | EP11-1200 | EP11-2400 |
|---|
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Reted Power | 1200VA/720W | 2000VA/1440W |
| Waveform | Modifide Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 5OHz/60Hz±0.5 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 0.72 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC±0.3V | 21.0VDC±0.3V |
| Low Battery Cutoff | 10.0VDC±0.3V | 20.0VDC±0.3V |
| High Voltage Alarm | 16.0VDC±0.3V | 32.0VDC±0.3V |
| High Battery Voltage Recover | 15.0VDC±0.3V | 30.0VDC±0.3V |
| CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC±0.4V | 28.8VDC±0.4V |
| Charger Voltage (Vbat>12.5V) | 13.7VDC±0.2V | 27.4VDC±0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A | 32VDC ±0.8A |
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 246*253*87mm |
| Net Weight (kg) | 2.3 | 2.5 |
| Shipping Dimensions(W*H*D) | 320*332*127mm |
| Shipping Weight (kg) | 2.9 | 3.1 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
5. Payment & Shipping & Sample1) Payment: T/T (Telegraphic transfer), and Western Union
2.)Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea6. Our services24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.
(Heaven Lee
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.7. MUST POWER LIMITED Company Introduction:
-------Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
--------Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
--------Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.
Contact US:
--------Want to know more about our company?
--------Want to know more about our products? Want to know more about the Price, packing, Shipping and any discount? Dear Friend, Do not Hesitate. Leave a Inquiry! ! ! ! : -8. Why Always Must Power???1)Professional--Over 12 years Professional Power System Producing Experience
2)Reliable
3)Hi-tech--Two Advanced R&D Team
4)Certifications--Applied with CE, ISO 9001, Soncap,IEC etc
5)Quality guarantee--One year warranty9. Answers to the frequent questions: 1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
