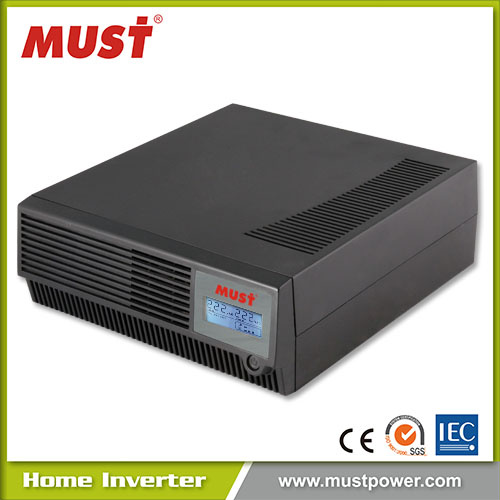

Modified Sine Wave Inverter 1000va 2000va 10A 20A

Prod Model:	PG1000VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Must
Wave:	Modified Sine Wave
Capacity:	1000va 2000va
Display:	Both LED & LCD
Weight:	2.5kg
Output Voltage:	110V~240VAC
Charge Current:	10A/20A
DC:	12V/24V
Smart Size:	Yes
Warranty:	1 Year
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Output Power:	401 - 500W

Product Description

Specifications


1.12V or 24V 1000va/2000va available
2.10A/20A adjustable charge current
3. CPU control
4. LED/LCD display
5. Hot in Pakistan

LCD/LED power inverter 1000va 2000va


1. Features
The PG series converts DC power into AC power. With a continuous output and compact design, the units sideal for running TVs, Stereos, Laptop and computers and other home appliancies. PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.

Super efficient, DC to AC conversion, minimizing charging losses
10A/ 20A charger
Input voltage range selection option
Fully automatic start operation
High frequency technology
Compact size and light weight
Provides critical overload protection
Eco-friendly & non-polluting (green device)
Advanced technology optimizes battery life

MODEL		PG500 VA	PG1000 VA		PG20 00  VA
CAPACITY		500VA/300W	1000VA/600W		2000VA/1200W
AC INPUT	Nominal Voltage	220/230/240VAC
	Input Voltage Range	90~280VAC
	Nominal Frequency	50/60Hz (Auto Detection)
Input Voltage Range Selector	Narrow	170~280VAC
	Wide	90~280VAC
INVERTER MODE OUTPUT	Voltage	230VAC +10/-18%
	Frequency	50/60Hz ±0.5Hz
	Waveform	Modified Sine-wave
	Efficiency (AC to AC)	> 95%
	Efficiency (DC to AC)	> 80%
TRANSFER TIME	Transfer Time ( AC to DC )	20ms (Typical)		20ms (Typical)
	Transfer Time (DC to AC)	20ms (Typical)		20ms (Typical)
BATTERY	Nominal Voltage	12V DC			24V DC
CHARGER	Charging Voltage	13.7+/-0.2V			27.4+/-0.4V
	Charging Current	10A max.
	Overcharging Protection	16V+/-0.4V			32V+/-0.8V
TRANSFER	Transfer Time	Typical 15-20ms, 40ms max
INDICATOR	Line Mode	Green LED blinks or lights steadily
	Battery Mode	Yellow LED lights
	Overload/fault	Red LED blinks or lights steadily
AUDIBLE ALARM	Low Battery Voltage in Battery Mode	Beeps every 2 seconds
	Overload	Beeps every 0.5 second.
	Fault	Beeps continuously
ENVIRONMENT	Temperature	0 ~ 40°C
PHYSICAL	Dimension (mm) DXWXH	255x80x224
	Net Weight (Kg)	2.0Kg	2.3Kg		2.5Kg
PROTECTIONS	Deep Discharge, Overcharge, Short Circuit, Overload, Battery Short, Over Voltage, Under Voltage.

  3.Troubleshooting

Problem	Possible Causes	Remedy
No LED display	Battery Weak	1.  Re-charge battery
	Battery defective	2.  Battery replacement.
	Power switch is not pressed	3. Press and hold power switch.
Mains normal but works in inverter mode	AC Input  missing Check AC input connection.
	2. Input protector is effective	2.  Reset the input protector.
Alarm buzzer beeps continuously	Overload	1.  Verify that the load matches the capability specified in the specs.
Back up time is shortened	Overload	1.  Remove some non-critical load.
	Battery voltage is too low.	2.  Charge battery for 8 hours or more.
