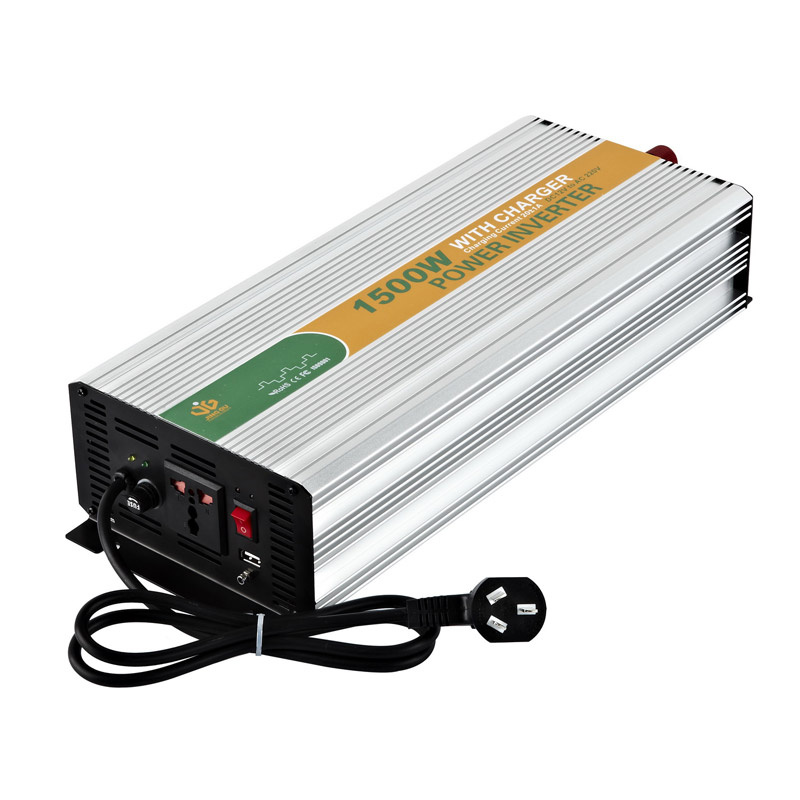

Modified Sine Wave Inverter 1500va
| Price: |
US $ 80-150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
JGM-1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgcm-1500W |
| Rated Power: |
1500W |
| Input Voltage: |
12VDC,24VDC |
| Output Voltage: |
110VAC,220VAC |
| Efficiency: |
50Hz, 60Hz |
| Wave Form: |
Modified Sine Wave |
| The Fuse: |
Built in |
| Protection: |
Low Voltage Alarm&Shut Down |
| USB Outlet: |
5V 500mA |
| Soft Start: |
Yes |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Brand: |
Jinggu |
Product Description
Specifications
Multifunction with more protection
Import power module main circuit
OEM service and custom- made
CE/ROHS/ISO9001
Modified sine wave inverter can convert DC power 12v/24v/48v to AC power 220v.
It is one type of convenient power converter.It adopts new high frequency switch,second frequency conversion technology and integrated module to make the volume and weight reduced.
Copared with traditional inverter,its volume and weight is only 1/5 to 1/10, and the conversion efficiency improved to more than 90%.It satisfies most of electricity demand.
High efficiency,low noise and moderate prices made it become the mainstream products in the market.
Used in the car is convenient,safe and reliable.
| 1500W Modified Sine Wave Invrter Technical Data |
| Item No. Function | JGM1500-121 | JGM1500-241 | JGM1500-122 | JGM1500-242 |
|
| Rated power | 1500W |
| Peak power | 3000W |
| Inupt voltage | DC12V | DC24V | DC12V | DC24V |
| Output voltage | 100-120VAC±5% | 210-240VAC±5% |
| Output frequency | 50±2HZ or 60±2HZ |
| Output waveform | Modified sine wave |
| Idle consumption | ≤0.7A | ≤0.4A | ≤0.7A | ≤0.4A |
| Converting efficiency | ≥90% |
| USB Output | DC5V 500mA(Optional) |
| Working voltage | DC10-15V | DC20-30V | DC10-15V | DC20-30V |
| Under-voltage warning voltage | DC10.5±0.3V | DC21.0±0.5V | DC10.5±0.3V | DC21.0±0.5V |
| Under-voltage protection voltage | DC9.5±0.3V | DC19±0.5V | DC9.5±0.3V | DC19±0.5V |
| Under-voltage auto recover voltage | DC12.0±0.3V | DC24.0±0.5V | DC12.0±0.3V | DC24.0±0.5V |
| Over-voltage protection voltage | DC15.5±0.5V | DC31.0±1V | DC15.5±0.5V | DC31.0±1V |
| Over-voltage recover voltage | lower than DC15V | lower than DC30V | lower than DC15V | lower than DC30V |
| Warning and indicating light function | Input revers polarity protection | The fuse will be burned,and the inverter will work again after replaced the burned fuse |
| Under-voltage protection | LED red light,warning,output closed(it will be automatic recovery after the voltage become regular) |
| Over-voltage protection | LED red light,output closed(it will be automatic recovery after the voltage become regular) |
| Over-load protection | LED red light,output closed(it will be automatic recovery after protection) |
| Over-temperature protection | LED red light,warning,output closed(it will automatic recovery after temperature lowered) |
| Short-circuit protection | LED red light,output closed(it will automatic recovery after protection) |
| Starting mode | Hard start |
| Cooling mode | The cooling fan will work when it with 30% load or inner temperature reach 50ºC |
| Working environment temperature | -20~+45ºC |
| Storage environment temperature | -30~+60ºC |
Wenzhou Jinggu Photoelectronics Technology Co., Ltd. is a focus on energy efficiency, wind, solar and other electrical power equipment product development, production, sales and service of the national high-tech science and technology enterprises. Major production: Sine wave inverter, car inverter, solar inverter, solar controller, LED photoelectric, AC / DC power supply, scenery power systems, photovoltaic equipment and accessories and other products. And provide project consulting, system design and technical support services. Products have been widely used in finance, communications, power, transportation, automobiles, elevators, residential, research institutes, manufacturing and military industries.
The company has perfect quality control, production management, engineering management, administered four management systems, in particular the quality system, we implement strict ISO9001 and CE certification standards, quality control throughout the entire production process, IQC, IPQC, FQC, in strict accordance with SOP tested products, and equipped with advanced testing equipment, after each batch of product must be shipped to the customer QC confirmed. The company's technology strength, advanced production equipment, has a group of experienced R & D engineers and marketing staff.
Since the early pioneering adhering to the "quality first development force, perfected the needs of customers" business philosophy, adhere to the high-tech science and technology, excellent quality-based, focusing on talent introduction and training, establish a sound management mechanism, to create high Performance management team, improve marketing and service network, the products sell well in more than 30 provinces and municipalities and OEM / ODM exported to Europe, America, Africa and Southeast Asia and other countries.
Future, Crystal Valley photoelectric all employees will uphold the "energy industry, high-efficiency power" development mission, and you look forward to join hands together to create a new, green, energy-efficient world.
