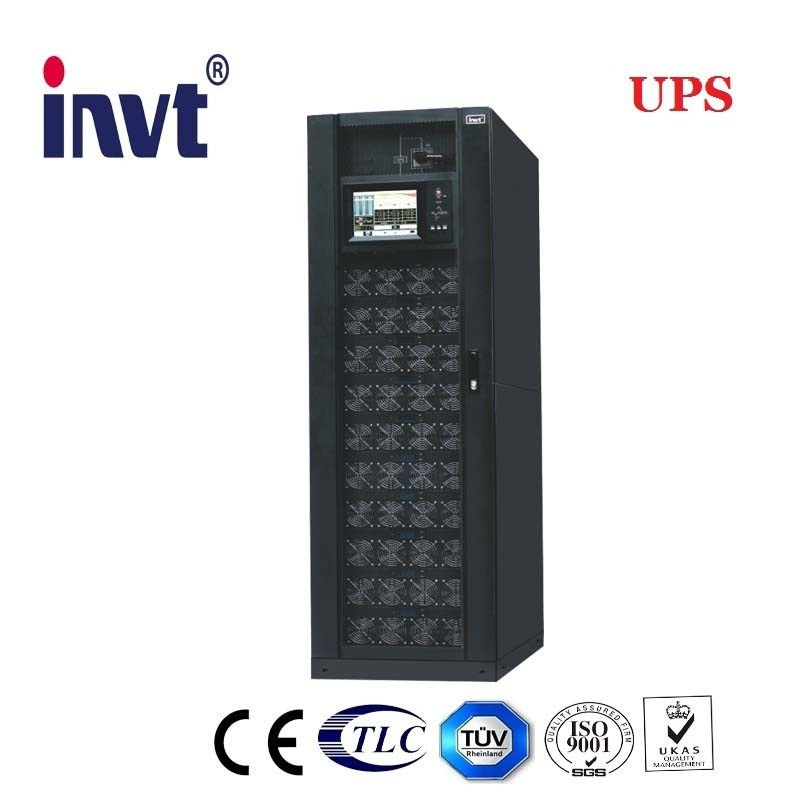

Modular Online 300kVA UPS (RM300/30X)

Prod Model:	RM300/30X
Output Power Factor:	0.9/1.0
Output Voltage:	380V/400V/415V
Certification:	Ceiso9001/TUV/ISO9001:2008/ISO1400`:2004
Power:	30kVA
Battery:	240VDC
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Invt

Product Description

RM Series Modular Online UPS 25-600kVA (380V/400V/415V)
The RM series modular UPS provides the most compact footprint of less than 2sq.m with maximum
capacity of 900kVA.With best reliability and high performance, it has been leading the domestic market for years.
RM series is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.
Independent LCD for Each Power Module

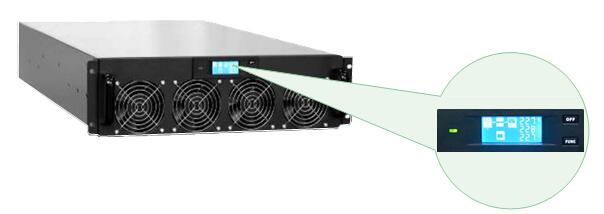

Each power module has an independent LCD, gives users' direct overview of status data and alarms in real time.

Friendly Interface
Provide graphical and text based information of alarms, status data, instructions that users can have more friendly and safer operation.

Isolated Air Flow

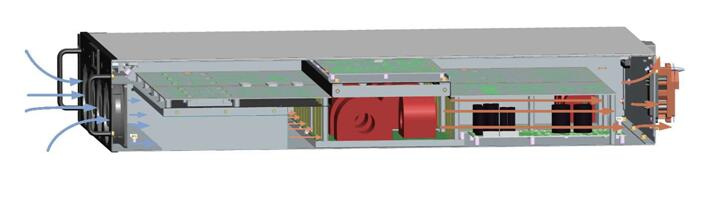

The dedicated and redundant hot-swappable power modules take the most unique structure design. In this design, the PCB boards and heat-sinkers are in two completely different layers, which allows the UPS run in dusty environments, significantly improving its stability and environmental adaptability.
Cooling air flows in the lower layer, keeping the upper PCB free of dust
One air flow channel ensures fans redundancy, even one fan fails, power module can run normally

Unique Design for High Reliability

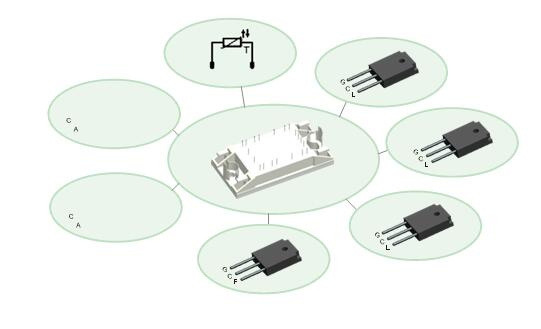

Instead of discrete IGBT and SCR components, RM series UPS uses modular IGBT and SCR in Rectifier and Inverter, bringing in extremely high reliability.
       All components in one module, less fault points, higher reliability
      All components integrated as one modular design, smaller disparity
      Less space needed, UPS with compact design and higher power design
      Integrated inner thermal sensors display IGBT inner temperature directly

High Density ,Modular, Scalable

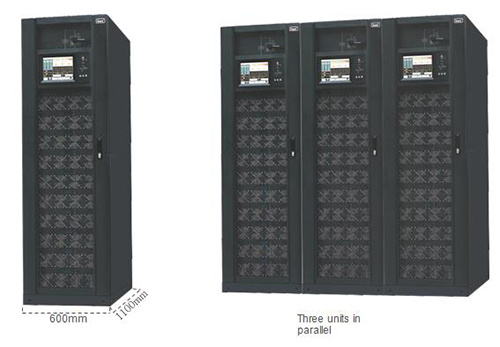

High power density, footprint for 300kVA is 0.66m², power density 409kW/m², saving valuable data center space
Scalable from 30kVA to 900kVA, max 30 power modules in parallel


 Inherently N+X redundant
Hot swappable power module and bypass & monitoring module
Additional charging module, extra charging current 50A×N for long time back up application

Comprehensive Monitoring Management

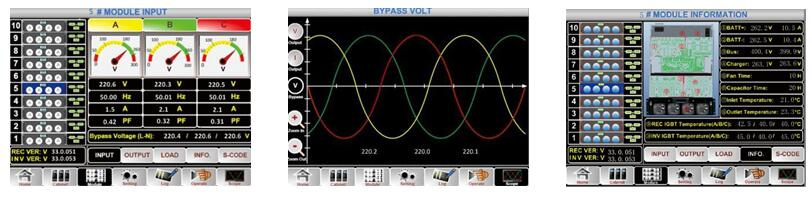

In each power module, information of critical components is monitored and displayed in real time, giving customers a view of inner status of the system and providing reminder information for maintenance.
   Maintenance reminder, running time of capacitors and fans displayed and recorded
   Comprehensive temperature monitoring for thermal abnormal detection
   Intelligent battery charger for long battery life

Critical Waveform Recording
 UPS can record and save the data of the main parameters automatically when faults happen  for further analysis.
 Can record data information and present as waveform for further analysis can easily spot the  causes of the failures, avoid future similar faults




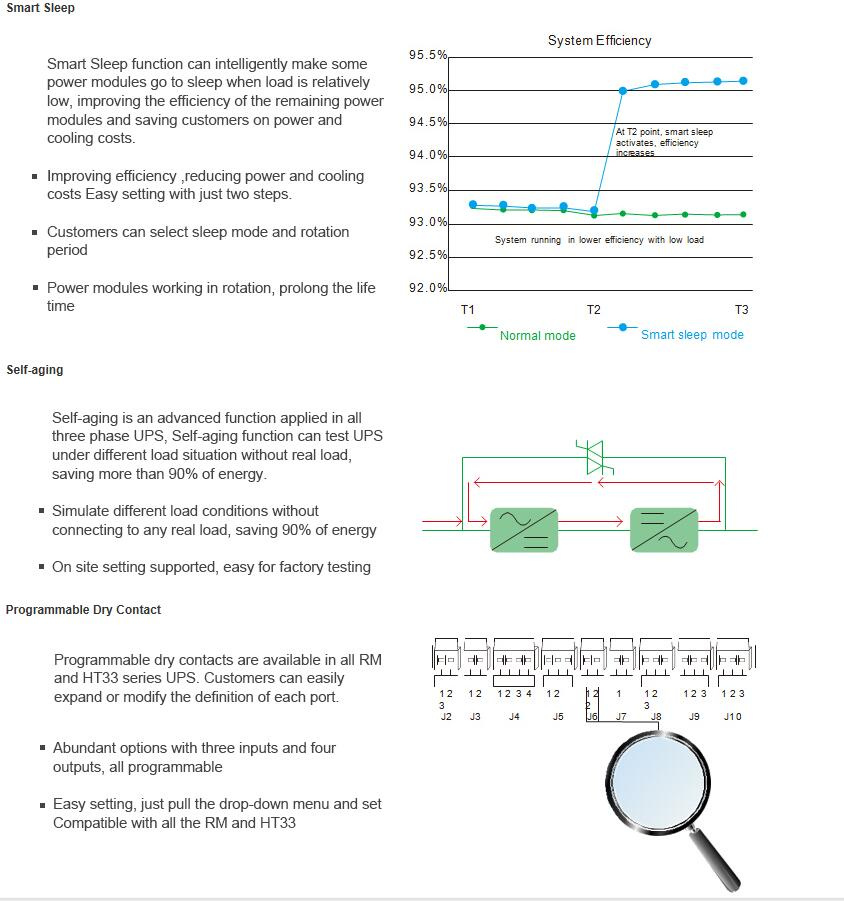

MODEL		RM600/30X	RM300/30X	RM180/30X	RM500/25X	RM250/25X	RM150/25X
Capacity		600kVA/540kW	300kVA/270kW	180kVA/162kW	500kVA/500kW	250kVA/250kW	150kVA/150kW
Power module		PM30X(30kVA/27kW)			PM25X(25kVA/25kW)
INPUT
Phase		3 Phase + Neutral + Ground,400V/415V(line-line)
Voltage range		304-478Vac (line-line),full load; 228V-304Vac (line-line),load decreases linearly according to the min phase voltage
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<3% @ 100% linear load
OUTPUT
Voltage		380V/400V/415V
Voltage regulation		1.5%
Power factor		0.9			1.0
THDu		THD<1%(linear load ),THD<5.5%(non-linear load)
Crest factor		3:1
Overload capability		110% for 1 hour; 125% for 10 min ;150% for 1 min; >150% for 200 ms
BATTERY
Voltage		±240VDC
Charge power precision		±1%
Charge power		20%*System Power
SYSTEM
System efficiency		Normal mode:95% ;ECO mode:99% ;Battery mode:95%
Display		10.4" color touch screen LCD + LED + Keyboard
IP class		IP20
Interface		Standard :RS232,RS485,Dry contacts, USB; Optional: SNMP, Expansion dry contact card
Operation/Storage temperature		0-40ºC/-40-70ºC
Relative humidity		0-95%(non-condensing)
Noise		72dB @ 100% load, 68dB @ 45% load (1 meter away)	65dB @ 100% load, 62dB @ 45% load (1 meter away)		72dB @ 100% load, 68dB @ 45% load (1 meter away)	65dB @ 100% load, 62dB @ 45% load (1 meter away)
PHYSICAL
Weight	Cabinet	660kg	220kg	165kg	660kg	220kg	165kg
	Power Module	PM30X:34kg			PM25X:32kg
Dimension (W*D*H) (mm)	Cabinet	2000*1050*2000	600*1100*2000	600*1100*1600	2000*1050*2000	600*1100*2000	600*1100*1600
	Power Module	PM30X/  PM25X:460*790*134

The RM series modular UPS provides the most compact footprint of less than 2sq.m with maximum capacity of 900kVA . With best reliability and high performance, it has been leading the domestic market for years. RM series is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.
