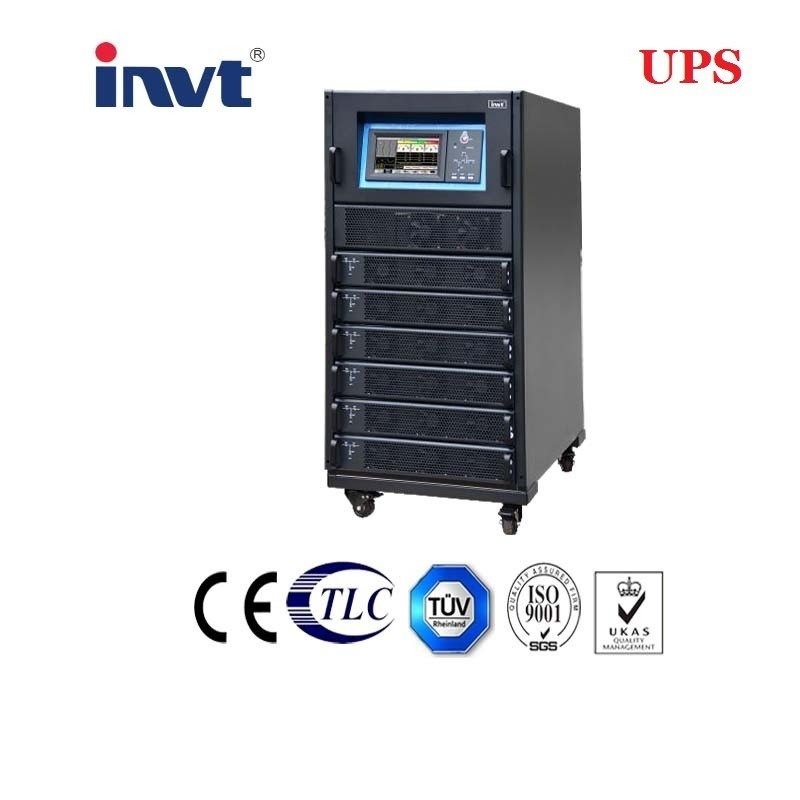

Modular Online UPS 10-90kVA (RM060/10X)

Name: Modular Online UPS 10-90kVA (RM060/10X)
Brand: all-electronics-online.com
SKU: 829452375
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM060/10X
Output Power Factor:	0.8/0.9
Output Voltage:	380V/400V/415V
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Invt

Product Description

The rack modular, scalable, hot-swappable, online double conversion UPS ranging from 10 to 90kVA, with its flexible
configuration of 3/3, 3/1 and 1/1, compact structure, is the ideal choice for small and medium data center.

Features:

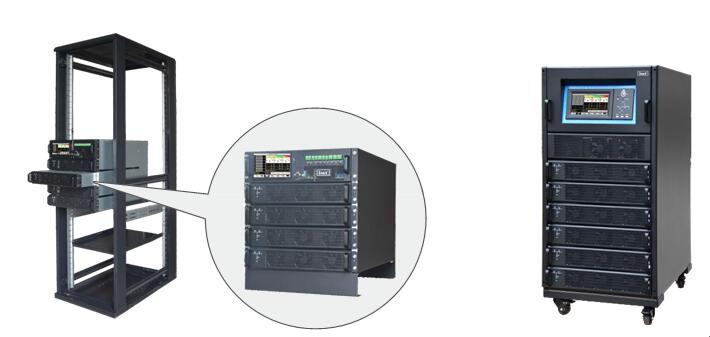

Rack modular design
Modular design, compatible with 19" standard rack cabinet, convenient to be integrated with servers.

High power density
10/15kVA power module in 2U height, saving great amount of space, easy for capacity expansion

Integrated solution for data center
UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center

Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery

Flexible configuration
The system can be configured to 3/3, 3/1 and 1/1 without derating

Friendly interface
7" touch color LCD with graphic display, more information displayed and easier for customer to operate

Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency

Self-aging mode
Energy internal circle technology, system can run with full load ,saving more than 90% energy

MODEL		RM060/10X	RM040/10X	RM030/10X	RM020/10X	RM090/15X	RM045/15X	RM030/15X
Capacity		60kVA/60kW	40kVA/40kW	30kVA/30kW	20kVA/20kW	90kVA/90kW	45kVA/45kW	30kVA/30kW
Power module		PM10X(10kVA/10kW)				PM15X(15kVA/15kW)
INPUT
Phase		3P+ N + G (380/400/415V)
Voltage range		304-478Vac (line-line),100% load; 228-304Vac, load derated from 100%-75% linearly
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<4% @ 100% linear load
OUTPUT
Voltage		3 phase:380/400/415V 1 phase:220/230/240V
Voltage regulation		1.5%
Power factor		1.0
THDu		THD<1%(linear load ),THD<5.5%(non-linear load)
Crest factor		3:1
Overload capability		110% for 1 hour; 125% for 10 min ;150% for 1 min; >150% for 200 ms
BATTERY
Voltage		±240VDC
Charge Power		20%*System Power
Charge voltage precision		±1%
SYSTEM
System efficiency		Normal mode:95% ;ECO mode:98% ;Battery mode:94.5%
Display		7.0" Color touch screen LCD + LED + Keyboard
IP Class		IP20
Interface		Standard :RS232,RS485,Dry contacts; Optional: SNMP
Operation/Storage temperature		0-40ºC/-25-70ºC
Relative humidity		0-95%(non-condensing)
Noise		56dB @ 50% load (1 meter away)
PHYSICAL
Weight	Cabinet	85kg	51kg	55kg	42kg	85kg	55kg	42kg
	Power Module	15.3kg				15.5kg
Dimension (WDH) (mm)	Cabinet	4857511033 (21U)	485697575 (11U)	485751575 (11U)	485697398 (7U)	4857511033 (21U)	485751575 (11U)	485697398 (7U)
	Power Module	43659085 (2U)

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
