Mold Temperature Controller Oil Type

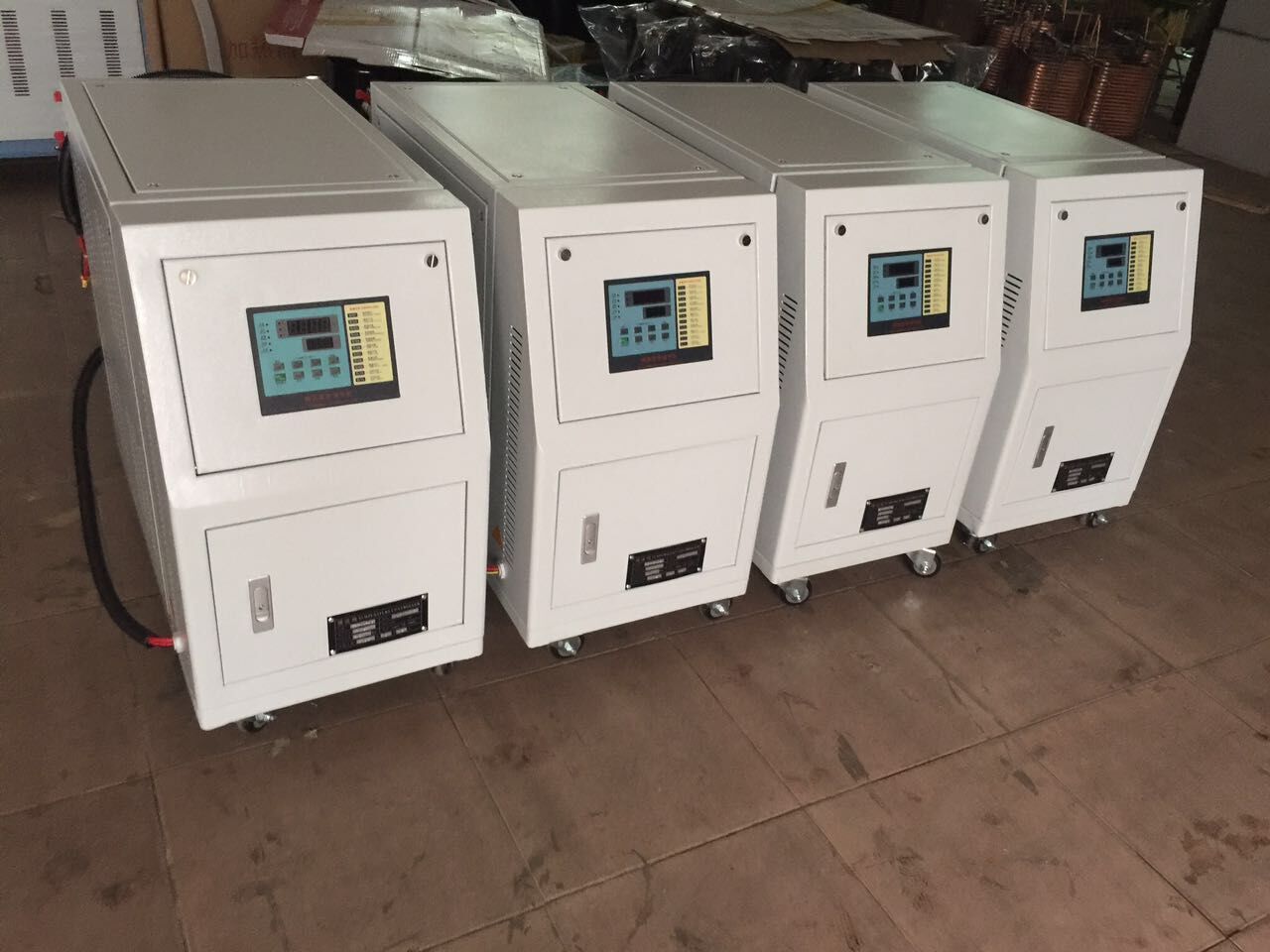

Name: Mold Temperature Controller Oil Type
Brand: all-electronics-online.com
SKU: 720735032
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FST-3-0
Heating Type:	Oil
Color:	Black
Type:	Temperature Controller
Usage:	Air Conditioner, Drying Equipment
Control Type:	Digital
Material:	Stainless Steel

Product Description

FEATURES:
*The temperature control adopted Japanese. Germany, Taiwan. Precise and reliable, if can control within +- 1º C and save electricity over 35%;
*Two sets of electric heater cylinder made from stainless steel;
*Emplaying supeb imported components, with longer terms of service;
*Rapid heating and cool off speeds, temp kept stable at times;
*Complete with safety protection and indication system.

Auto drain sir system
Main circult-breaker
Purmp reverse protect and direct lamp
Alarm overheat thermostat
By-pass circuit
Overheat thermostat and direct lamp
Oil shortage protect and direct lamp
Specifications	Oil Type
Model	FST-3-0	FST-6-0	FST-9-0	FST-12-0	FST-6H-0	FST-12H-0
Control Range	normal-160& ordm; C				nomal-200& ordm; C
Voltage	3PHASE 380v 50Hz or 60Hz
Cooling Methold	Indirect Cooling
Fluid	Heat Transfer Oil
Heating Capacity KW	3	6	9	12	6	12
Pump Power	0.375	0.375	0.375	0.75	0.375	0.75
Max Pump Pressure KW	60	60	60	90	60	90
Max pump Capacity Kg/cm	1.5	1.5	1.5	2.0	1.5	2.0
Cooling Water Pipe/inch	1/2	1/2	1/2	1/2	1/2	1/2
Process Fluid Pipe/inch	1/2*4	1/2*4	1/2*6	1/2*8	1/2*4	1/2*8
Exter Net Dimens ion LWH(mm)	650340580	650340580	750400700	750400700	650340580	750400700
Weight	58	58	75	95	58	75

SIMI ENGINEERING LIMITED is one of the pioneers to manufacture plastic injection molding auxiliary equipments in China, specializing in designing, developing, manufacturing, sales & service. Our mission is to satisfy every client with best quality, considerate service, quick response. We have continuously designed and developed the series of auxiliary equipments including crushing/granulating series, heating/cooling series, mixing series, drying/dehumidifying series, conveying series, agglomerating series, milling series. We attach great importance to every details to cooperate with our customers in business and offer clients as good quality & service as possible.
