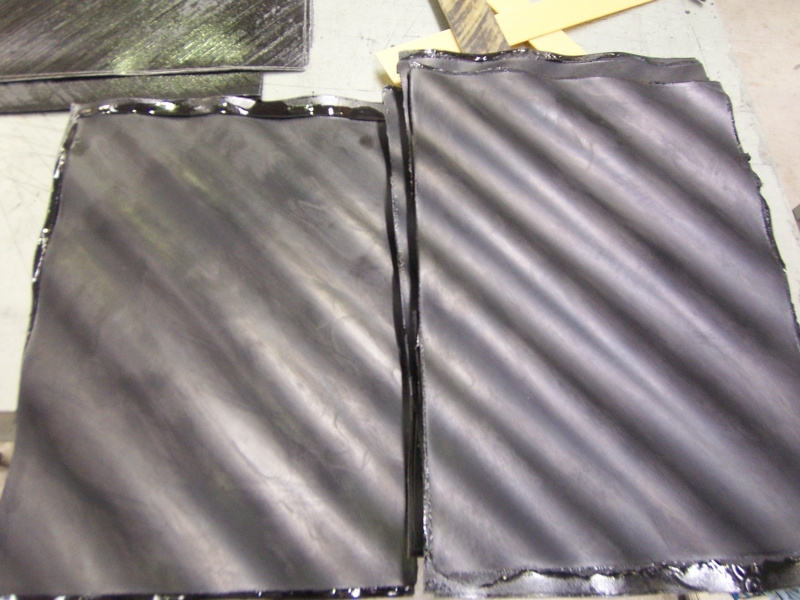

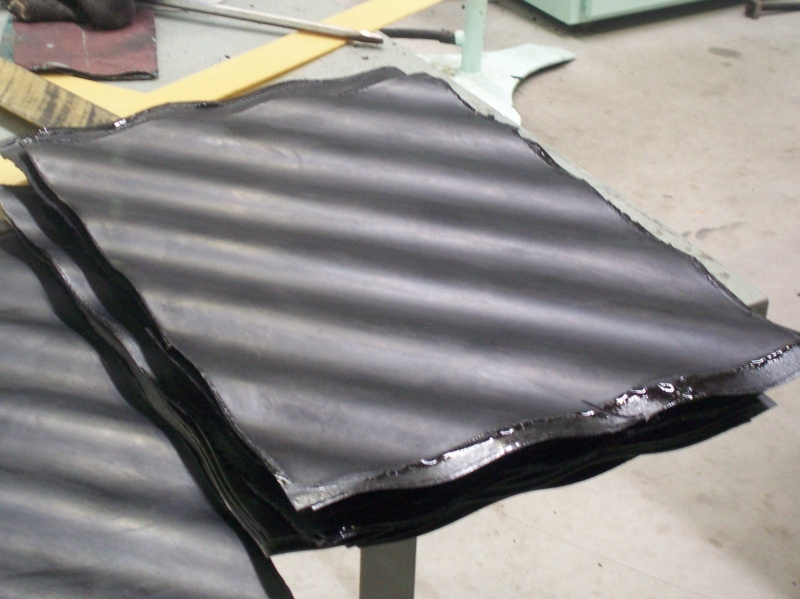

Molded Glass Fabric Ripple Spring

Molded Glass Fabric Ripple Spring
Price: US $ 500kg
Trade Terms: FOB,CFR,CIF
Min Order: 20kg
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: Top ripple spring, side ripple spring, D341, D342
Markets: North America,South America,Southeast Asia,Eastern Asia,Western Europe
Size: Narrow Sheet
Application: Generator
Chemistry: Organic Insulation
Material: Fiberglass
Thermal Rating: F 155
Maximum Voltage: 20KV~100KV
Certification: ISO10012, Ohsas18001, ISO14001, Cnas
Color: Black
Brand: Dongfang

Product Description

D341 ripple spring consists of high-strength, less-weft glass cloth impregnated with modified
cyanate resinpressed under high temperature and high pressure.

D341 possesses excellent mechanical property and anti-permanent deformability. Its permanent deformability is small at high temperature. It is used as fixed piece in stator slot in large generating sets.

The surface should be flat and smooth, free of air bubbles, impurities and reasonably free of other small imperfections. The edges of sheet shall be tidy and be free of delaminations and cracks.

D341 possesses excellent mechanical property and anti-permanent deformability. Its permanent deformability is small at high temperature. It is used as fixed piece in stator slot in large generating sets.

Ripple spring be cut according to drawing, then need to be heated at 110~120ºC for 2 hours to dry.

Product should  be flat and smooth, free of air bubbles, impurities and reasonably free of other small imperfections. The edges of sheet shall be tidy and be free of delaminations and cracks.

     D341 possesses excellent mechanical property and anti-permanent deformability. Its permanent deformability is small at high temperature. It is used as fixed piece in stator slot in large generating sets.

No.ItemUnitValue
1ApperanceThe surface should be flat and smooth, free of air bubbles, impurities and reasonably free of other small imperfections. The edges of sheet shall be tidy and be free of delaminations and cracks.
2Change rate of wave crest after heat press(150±3ºC,24h)K1%21
3Change rate of wave crest after thermal aging
(150±3ºC,168h)K2
%25
4HardnessMPa/mm0.5
5Resilence at room temperature
0.45mm pressure
MPa0.65
6Densityg/cm31.8~2.0
7Glass fabric content%70±5
8Insuation classºC180
