| Prod Model: |
CEM9-4 |
| High Breaking Capacity: |
25ka/40ka |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CE |
Product Description

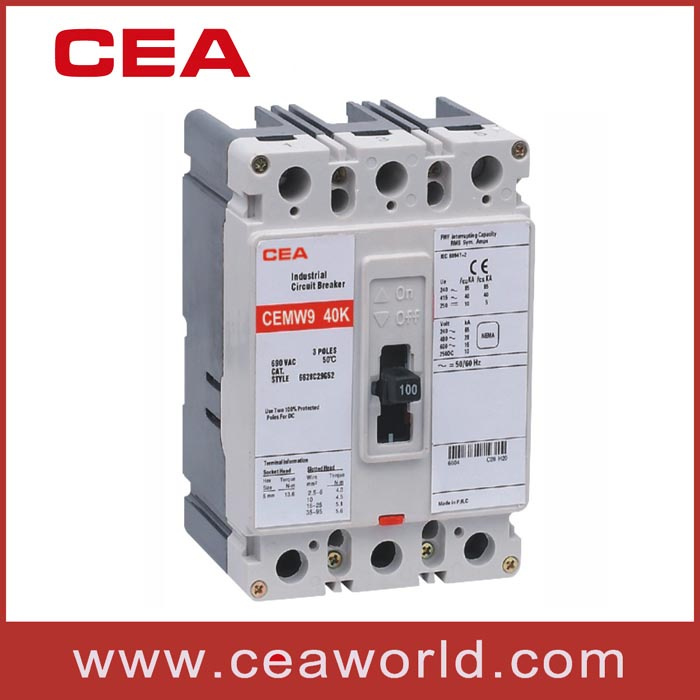

Molded Case Circuit Breaker (CEM9-4)
| type | CEM9-100 | CEM9-225 CEMW9-225 | CEM9-400 CEMW9-400 | CEM9-630 CEMW9-630 |
| rated current(A) | 16----100A | 16-----225A | 63-----400A | 315-----630A |
| No. of poles | 2 | 1 , 3 | 3 | 3 |
| rated voltage Ue(V) | AC 380V-690V | AC 380V-690V | AC 380V-690V | AC 380V-690V |
| rated insulation voltage Ui(V) | AC690V | AC690V | AC690V | AC690V |
| short sircuit interrupting capacity Icu/Ics AC 690V | | 14/7 | 35/18 | 35/18 |
| short sircuit interrupting capacity Icu/Ics AC 500V | | 14/7 | 35/18 | 35/18 |
| short sircuit interrupting capacity Icu/Ics AC 440V | 21/10 | 50/25 | 100/75 | 100/75 |
| short sircuit interrupting capacity Icu/Ics AC 415V | 25/13 | 70/70 | 100/75 | 100/75 |
| short sircuit interrupting capacity Icu/Ics AC 380V | 25/13 | 70/70 | 100/75 | 100/75 |
| short sircuit interrupting capacity Icu/Ics AC 230V | 65/33 | 100/100 | 200/150 | 200/150 |
| short sircuit interrupting capacity Icu/Ics DC 250V | 10/5 | 20/10 | 20/10 | 20/10 |
Company Information:
Founded in 1999, Fato Group International Limited Company is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P. R of China.
The Group, comprising more than 10 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff. During the past 12 years, we invested abundant resources in both research and development and employee training programs. The company was ranked in the front of 100 tops of wenzhou private enterprises. " CEA" is named as a famous trademark in domestic and over-seas markets. Our company has took the lead in applying IS09001 Quality Management System. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of Circuit Breakers, Contactors, Relays, Starters, Switches, Panel Meters, Fuses, Mec-hanical Instruments, Wire & Cable and Electrical Accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can keep us survive and succeed in today's highly competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed. Just Tell Us Your Requirements and Let Us Do The Rest For You!
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
