Momentary Miniature Micro Switch Actional Control

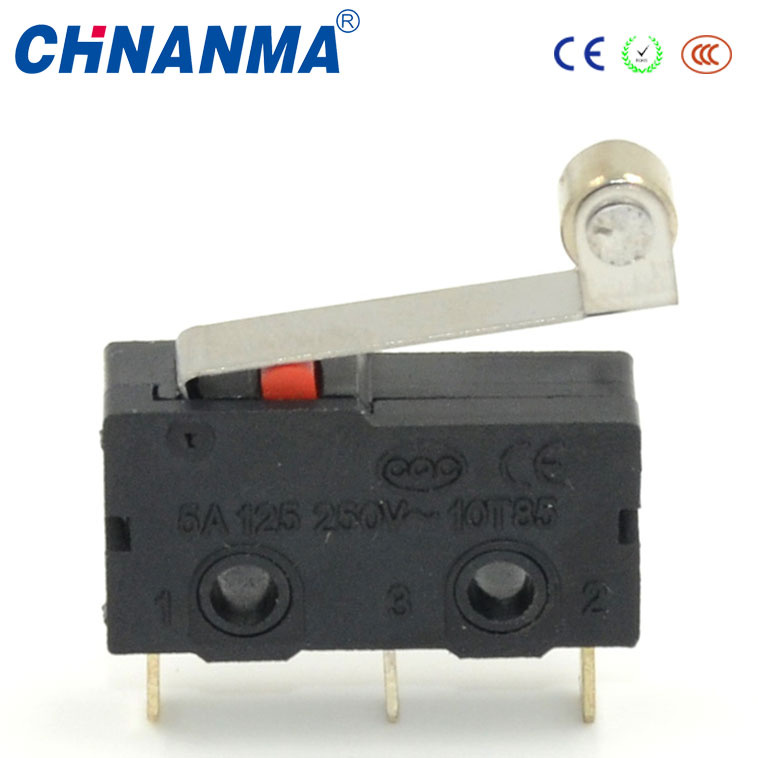

Name: Momentary Miniature Micro Switch Actional Control
Brand: all-electronics-online.com
SKU: 771591485
Availability: InStock
Rating: 4.5 (121 reviews)

Price:	US $ 0.5-0.8/Piece
Trade Terms:	FOB,CFR,DAT
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NM-1-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	ABS Plastic
Rating:	6A,250V
Color:	Green, Black , Grey or on Request
Operating Temperature:	-25-+85 Degrees

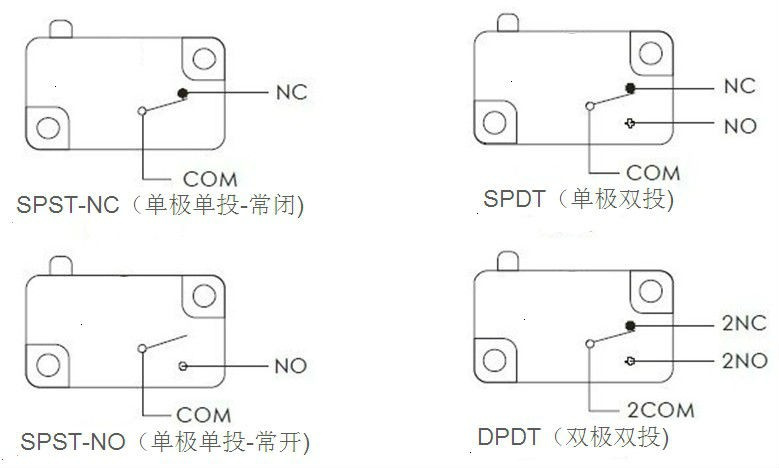

Kind:	Single-Pole on-off Switch
Pressing Type:	Spring Roller
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	DC
Breaking Form:	Single Type
Application:	Domestic and Industry Electric Appliances
Brand:	Chnanma

Product Description

Features:

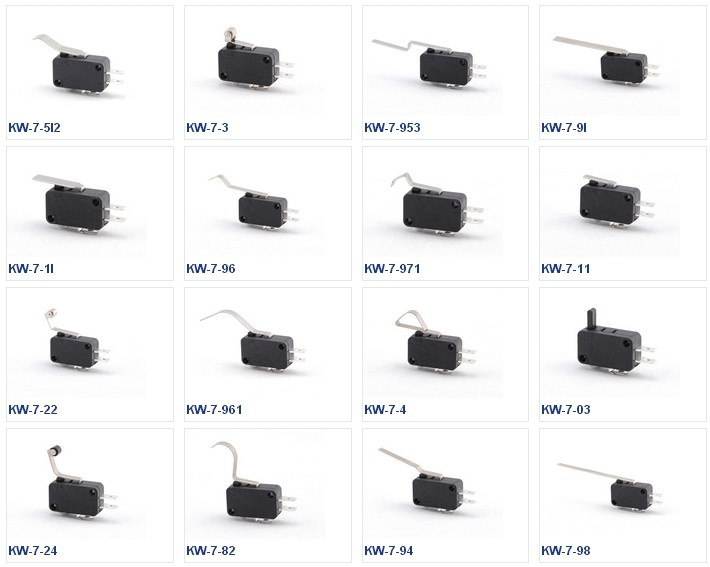

Various levers and terminals are available for choice.
Various operating force are available.
Snap action, compact design, suit for small space.
Long operating life, high reliability, which could save the cost.
Various rating and temperature resistance degree are available.
CCC,CE,UL,VDE approvals.

Application:
Home appliance,Electronic device,Automation equipment,Communication equipment,Auto electronic, Instrument and meter,Sprayer machine,Water pump, Game machine, Air conditioner, Electric tool etc.

Rating		3A,8A,16A / 250VAC , 125VAC 0.6A / 125VDC 0.3A / 250VDC
Initial contact resistance		≤ 25mΩ
Initial insulation resistance ( At 500V DC)		≥ 100mΩ
Dielectric strength	Between non-consecutive terminal	1000Vrms,50/60Hz,1min
	Between current carrying and non-carry metal parts	1500Vrms,50/60Hz,1min
	Between ground and each terminal	1500Vrms,50/60Hz,1min
Max.shock resistance	Mechanical durable	1000m/s2
	Malfunction	300m/s2
Vibration resistance		10-55Hz , 1.5mm double amplitude
Expected life	Mechanical	20000000
	Electrical	100000
Ambient temperature		-25 to +85 °C
Ambient humidity		90%RH max
Operating frequency	Mechanical	60 times/min
	Electrical	25 times/min
Operation speed		0.01mm-1m/s

Packaging & Shipping
1) Packaging
100 pieces / inner box , 1,000 pieces / Carton

50 pieces / inner box , 500 pieces / Carton

Measuring 49 *38.5*53.5 cm

2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T,PayPal

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.

FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

More information of our products, please do feel free to contact us.

Reply will be available within 24 hours. Thanks!

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
