| Prod Model: |
G5DXX-XX1800F05-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP67 |
| Max. Current: |
5A |
| Max. Voltage: |
250VAC |
| Electrical Life: |
≥ 50,000 Cycles or 100,000 Cycles |
| Mechanical Life: |
10,000,000 Cycles or 1,000,000 Cycles or 50,000 Cy |
| Terminal Type: |
Wires Leads From Side (500mm) |
| Operating Force: |
1800gf Max W/O Lever |
| Lever Type: |
Roller Lever |
| Circuit Code: |
Spdt Spst Spst-Nc Spst-No |
| Housing Material: |
Pet, 94V2 |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Duplex Type |
| Pressing Type: |
Push Rod |
| Application: |
Home Appliance,Automatic Equipments,Power Tools |
| Brand: |
Zing Ear |
| Certification: |
UL cUL ENEC CQC |
Product Description
Key Specifications/Special Features:
. Tight Configuration,Small Contact Gap , Snap Action
. Long Life, High Reliability
. Global Safety Approvals
. Variety of Terminals
. Wide Range Operating Force
. Wide Range Temperature Grade
. With Optional PTI Grade
. Variety Used in Home Applicances, Electronic Equipments, Automatic Machines
. Communication Equipments
. Variety of Levers

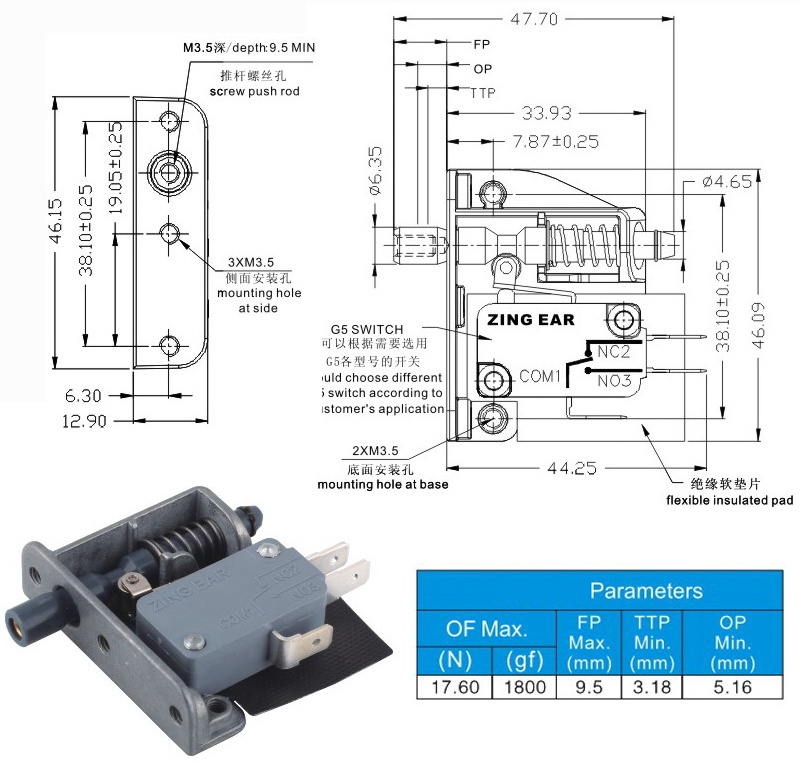

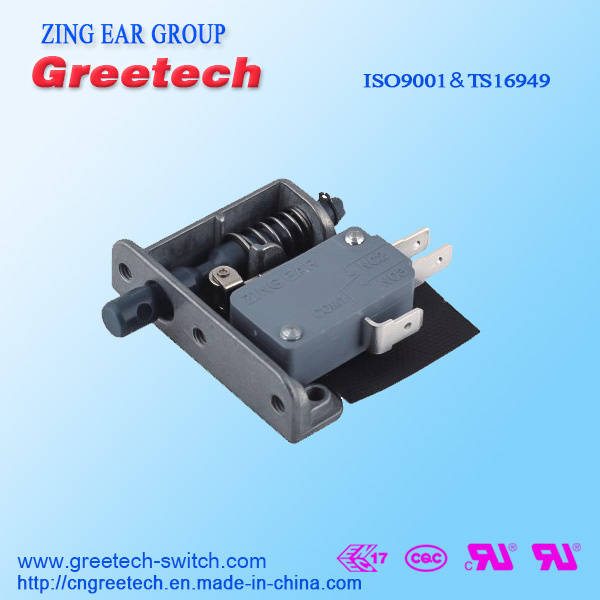

Drawing & Picture & Parameters
Packaging & Delivery:
. Pack out : 1000pcs/ctn
. Gross weight : about 8.0/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days
Parameters:
| Rating | P1 | ENEC: 0.1A 125/250V 48VDC 5E4
UL:0.1A 125/250VAC 48VDC
Gold Plated Contact Optional |
| ,05 | ENEC:5A 125/250VAC
UL:5A 1/8HP 125/250VAC |
| 10 | ENEC :10(2)A 125/250 VAC u25T125
UL:10. 1A 1/4HP 125/250 VAC
NOTE:only with "OF" over "250gf" |
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 120 cycles/minute |
| Contact Resitance | 100MΩ Max |
Insulation Resistance
( at 500VDC) | 100MΩ Min |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) |
| Storage Temperature | (-40°C~ +125°C/85°C) |
| Storage Humidity | 85% RH max |
| Service Life | Electrical | 10,000~100,000cycles
(Depend on part number) |
| Mechanical | 1,000,000cycles |
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Business Partners:
Trade Shows & Customers Visiting:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
