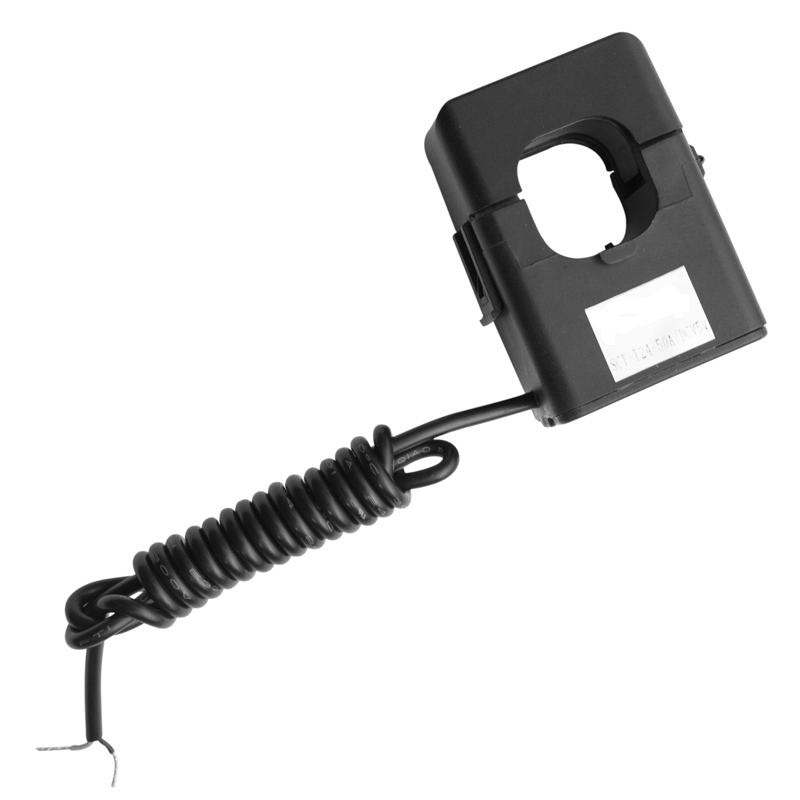

Monitor Split Core Sensor Current Transformer 24mm

Name: Monitor Split Core Sensor Current Transformer 24mm
Brand: all-electronics-online.com
SKU: 701526995
Availability: InStock
Rating: 4.7 (66 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Diameter:	24mm
Input Current:	0-300A AC
Output:	Ma,Mv ,0.333V ,1A,5A
Withstand Voltage:	2.5kv/1mA/1min
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Split-Core AC Current Sensor XH- SCT-T24
φ24mm Opening With 100 To 300 Amp Rating

Description:
Jiangyin Spark XH-SCT-T24 Series split-core current senses AC current from 100 to 300 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Specifications:
Maximum continuous primary current 300 A AC
Current Ratio: 3000: 1
Output: 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15Cto 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
