Monocrystalline Silicon Differential Pressure Transducer

Monocrystalline Silicon Differential Pressure Transducer
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: PC90D
Supply: Constant Voltage / Constant Current
Operating Temp.: -40ºC-85ºC
Medium Temp.: -50ºC-125ºC
Output Voltage: 60~140mv
Zero Temp. Coefficient: ±0.05%Fs/ºC
Full Scale Span Temp. Impact: -0.2±0.03%Fs/ºC
Temp. Hysteresis: <±0.05%Fs
Pressure Hysteresis: <±0.025%Fs
Long-Term Drift: <±0.05%Fs/Year (Constant Temp.)
Material Of Diaphragm: 316L
Thread Type: 2 3/16-16uns, M56×1.5, 55-16 British Thread

Product Description

Features
Imported ultra-high stability differential pressure die
High accuracy and excellent stability
Static pressure error within ±0.1%FS/10MPa
Patented double overpressure protection diaphragm design
Unilateral overpressure limit of up to 40MPa
Constant current/constant voltage excitation
316L stainless steel all welded integrated structure

Applications
Differential pressure transmitter core component
Differential pressure flow transmitter core component

Overview

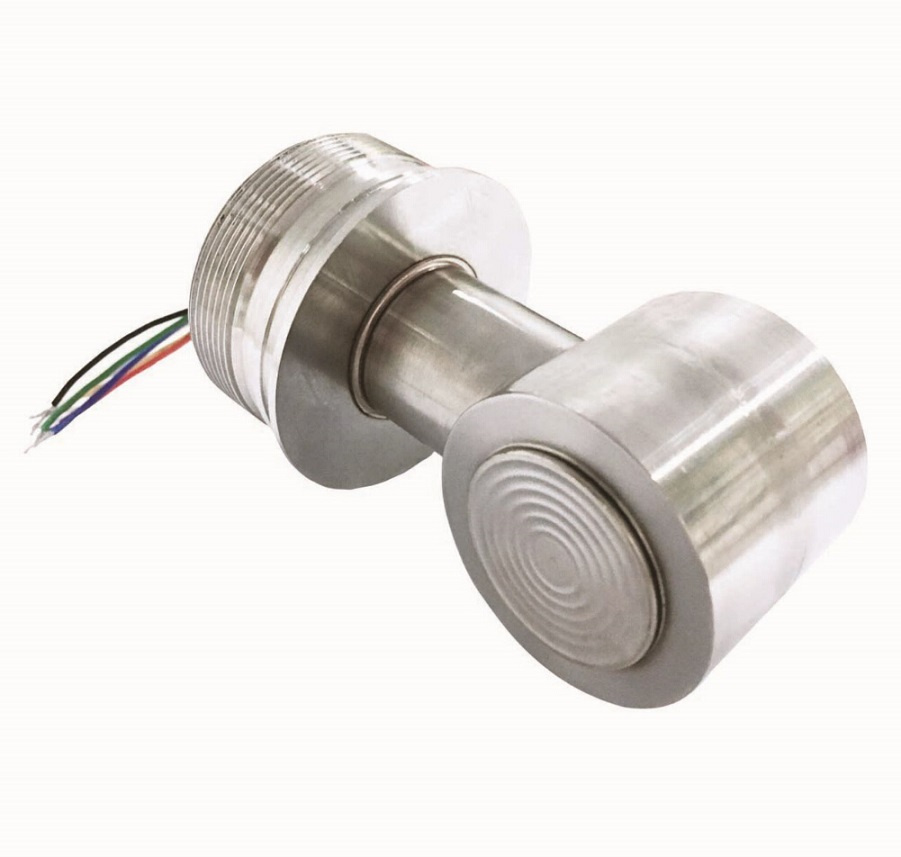

PC90D Monocrystalline Silicon Differential Pressure Sensor is a kind of differential pressure sensor designed with overpressure protection function. The differential pressure sensitive core element adopts high performance piezoresistive silicon chip, which is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Diaphragm of different materials isolates measuring medium and differential pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive media. Differential pressure sensor converts the measured differential pressure signal into millivolt voltage signal proportional to its linearity by external constant current or constant voltage excitation.

Performance parameters

SupplyConstant voltage / constant current
Operating temp.-40ºC-85ºC
Medium temp.-50ºC-125ºC
Output voltage60~140mV
Zero temp. coefficient±0.05%FS/ºC
Full scale span temp. impact-0.2±0.03%FS/ºC
Temp. hysteresis<±0.05%FS
Pressure hysteresis<±0.025%FS
Long-term drift<±0.05%FS/Year (Constant temp.)
Nonlinearity<±0.1%FS(Typical)
Static pressure impact<±0.1%FS/10MPa
Diaphragm materialStainless steel 316L

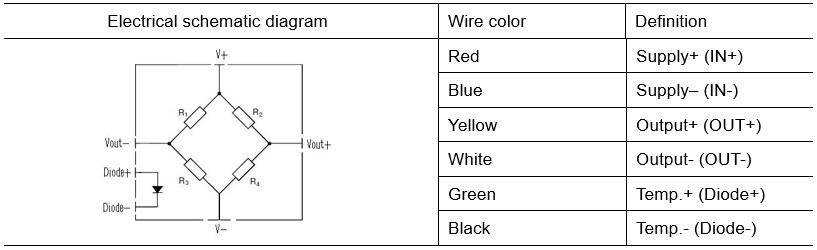

Electrical connection

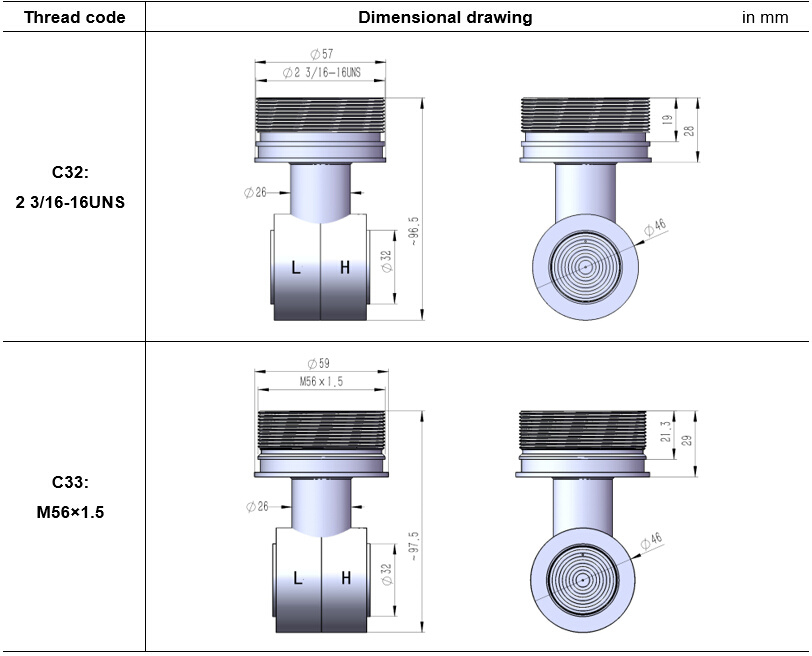

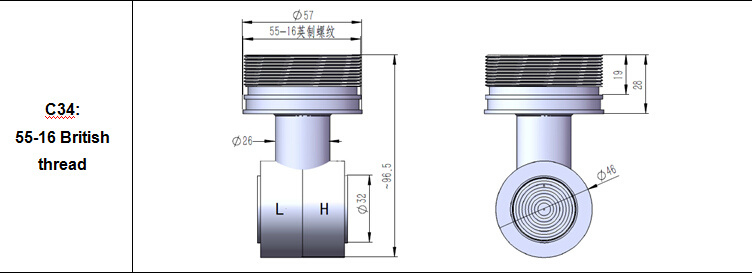

Structure & dimensions





Pressure range selection

CodePressure rangeUnilateral overpressureStatic pressure
2k0-200Pa~2kPa200kPa7MPa
6k0-600Pa~6kPa16MPa25MPa
40k0-1kPa~40kPa16MPa40MPa
100k0-1.5kPa~100kPa16MPa40MPa
250k0-2.5kPa~250kPa16MPa40MPa
1M0-10kPa~1MPa16MPa40MPa

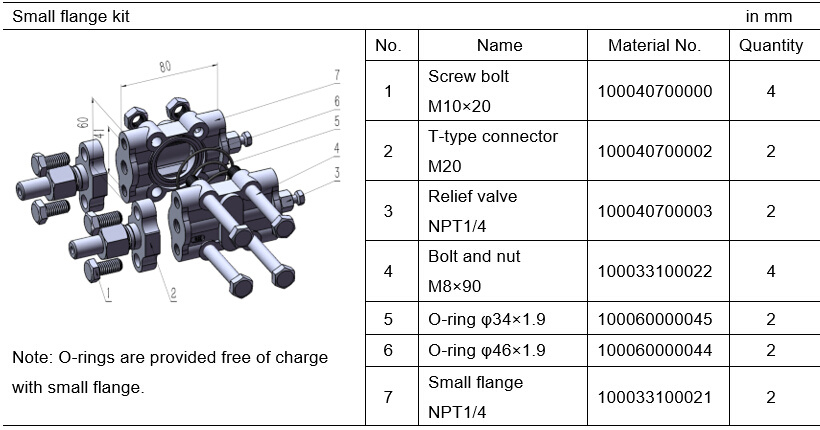

Accessories




How to order

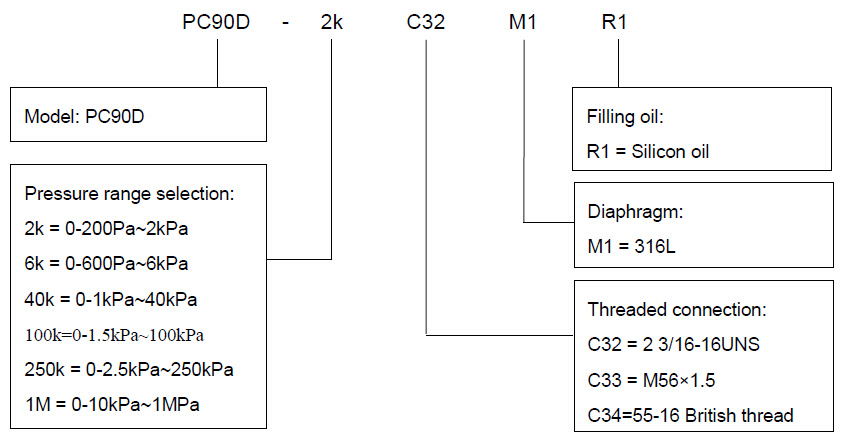

Example: PC90D-2kC32M1R1
The model is PC90D. The pressure range is 0-200Pa~2kPa. The thread is 2 3/16-16UNS. The material of diaphragm is stainless steel 316L. The filling oil is silicon oil.

Ordering tips:
Accessories need to be ordered separately.
