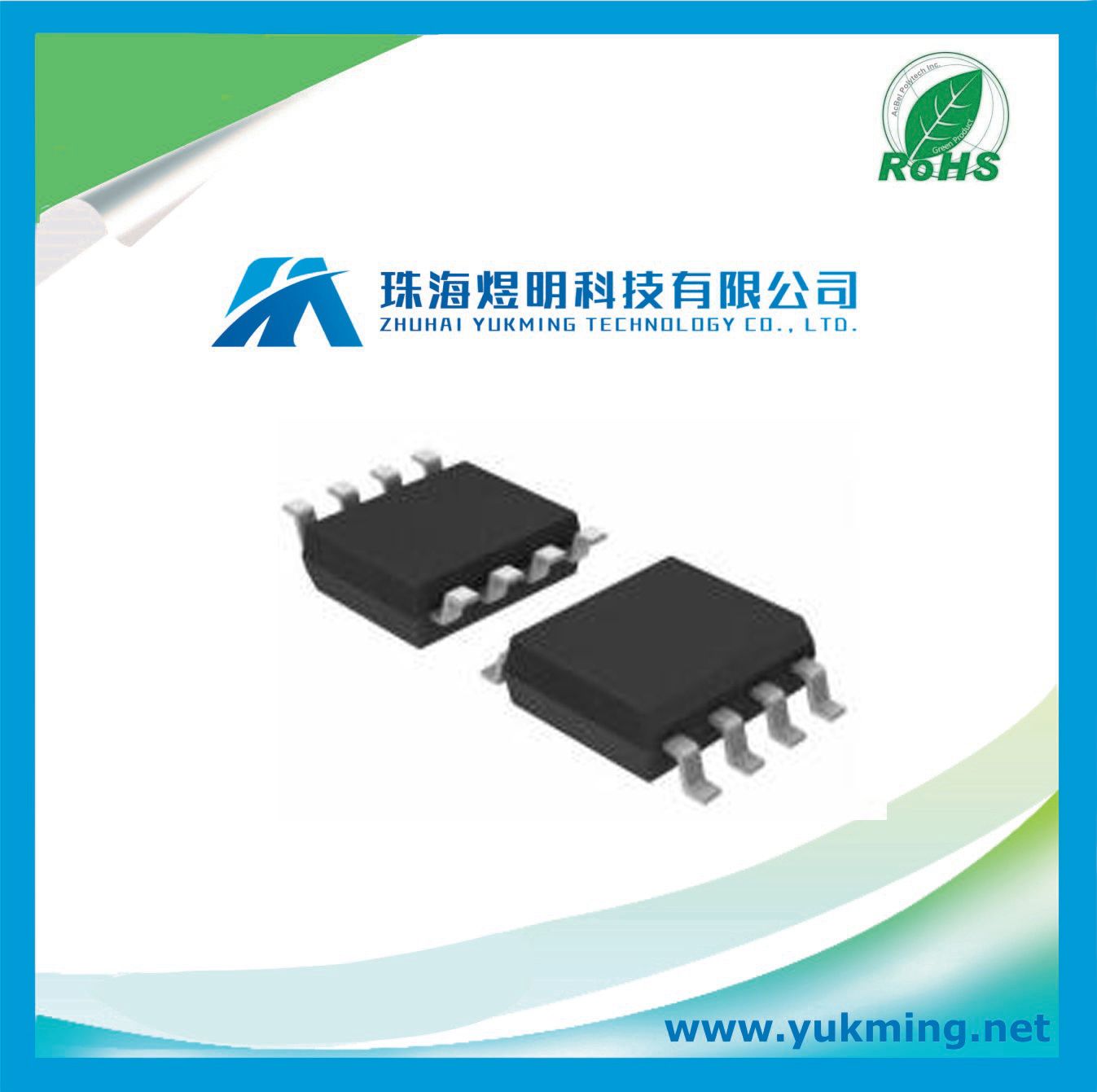

Monolithic IC Ap1509-Adj Integrated Circuit for Stepdown DC/DC Converters

Name: Monolithic IC Ap1509-Adj Integrated Circuit for Stepdown DC/DC Converters
Brand: all-electronics-online.com
SKU: 799804385
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 0.247/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AP1509-ADJ
Output Voltage:	3.3V, 5V, 12V and Adjustable Output Version
Adjustable Version Output Voltage Range:	1.23V to 18V+4%
Fixed Switching Frequency:	150kHz +15%
Operating Voltage:	22V
Output Load Current:	2A

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

The AP1509 series are monolithic IC designed for a stepdown DC/DC converter, and own the ability of driving a 2A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes feedback control having good line and load regulation without external design. Regarding protected function, thermal shutdown is to prevent over temperature operating from damage, and current limit is against over current operating of the output switch. If current limit function occurs and VFB is down below 0.5V, the switching frequency will be reduced. The AP1509 series operates at a switching frequency of 150KHz thus allow smaller sized filter components than what would be needed with lower frequency switching regulators. Other features include a guaranteed +4% tolerance on output voltage under specified input voltage and output load conditions, and +15% on the oscillator frequency. The output version included fixed 3.3V, 5V, 12V, and an adjustable type. The chips are available in a standard 8-lead SOP-8 package.

Features
• Output Voltage: 3.3V, 5V, 12V and Adjustable Output Version
• Adjustable Version Output Voltage Range, 1.23V to 18V+4%
• 150KHz +15% Fixed Switching Frequency
• Voltage Mode Non-Synchronous PWM Control
• Thermal-Shutdown and Current-Limit Protection
• ON/OFF Shutdown Control Input
• Operating Voltage can be up to 22V
• Output Load Current: 2A

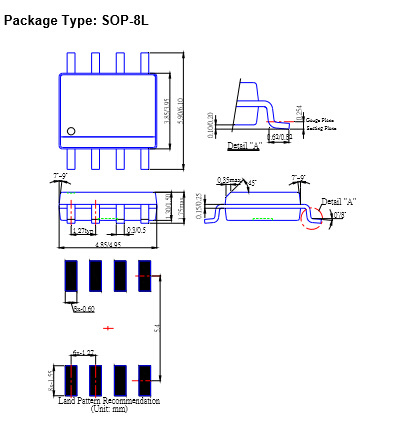

• SOP-8L Packages
• Low Power Standby Mode
• Built-in Switching Transistor On Chip
• SOP-8L: Available in "Green" Molding Compound (No Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)

Applications
• Simple High-Efficiency Step-Down Regulator
• On-Card Switching Regulators
• Positive to Negative Converter
