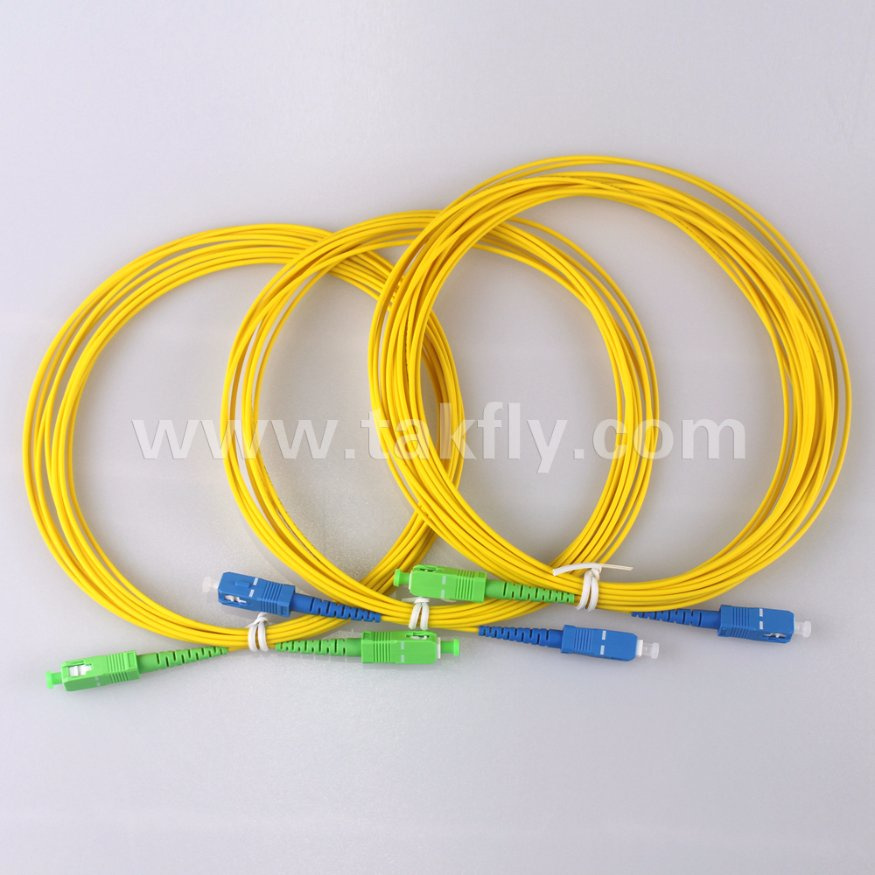

Monomodo Single Mode LSZH Sc-Sc Fiber Optic Patchcord

Name: Monomodo Single Mode LSZH Sc-Sc Fiber Optic Patchcord
Brand: all-electronics-online.com
SKU: 684590141
Availability: InStock
Rating: 4.3 (122 reviews)

Price:	US $ 1.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM 3.0mm patchcords
Product:	Fiber Optic Patchcord
Mode:	Single Mode
Inertion Loss:	0.2dB
Return Loss:	45dB
Color:	Yellow or Customized
Operation Temperature:	-40~75
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	CCC
Sheath Material:	LSZH

Product Description

Monomodo Sm 3.0mm LSZH Sc-Sc Fiber Optic Patchcord

Description:
Sm 3.0mm LSZH Sc-Sc Fiber Optic Patchcord-Jumper

mainly used between the device and the device, fiber link connection between the device and the patch panel to provide multiple types of fiber, including multi mode 62.5/125,50/125,QuintillionOM3, OM4, and single mode 9/125 PC, UPC, APC .etc

Features
SC-SC UPC 9/125 Singlemode Fiber Optic Patch Cord
using prefabrication, highquality parts, ceramic ferrule and optical fiber, optical performance provides excellent control of the plant, with a low insertion loss and emission loss, easy installation and fast.

Standard
ISO/IEC 11801

Applications
Communication, local area network, fiber to the home, digital high-definition monitor, and other fields.

Performance

Performance & Specifications
Fiber Type		SM		MM
Normal Fiber OD		125±0.2um		125±0.2um
Connector Type		SC,FC,ST, E-2000, LC, MU	MTRJ	SC,FC,ST, E-2000, LC, MU	MTRJ
Insertion loss(Typical)		0.2dB	0.4dB	0.2dB	0.4dB
Insertion loss(Max)		0.3dB	0.5dB	0.3dB	0.5dB
Return Loss(Typical)	PC	50dB	35	-
	UPC	55dB	-	-
	APC	65dB	-	-
Mating Durability(500 C)		0.2dB
Temperature Stability		0.3dB
Operation Temperature		-25°C~+70°C
Storage Temperature		-25°C~+70°C
