| Prod Model: |
60038 |
| Certificate: |
SGS |
| Weight: |
21.7-22.7kg |
| Self-Discharge: |
Low |
| Maintenance: |
Free |
| Product Name: |
60038 |
| Battery Handle: |
Yes |
| Positive Plate: |
Lead |
| Case: |
ABS |
| Terminal: |
Cooper |
| Delivery: |
25 Days After Receive Deposit |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description
Product Introduction:
Product advantage:1.There are all active compoment in lead paste, keep the long life for battery.
2.Battery is decorated with delicate colorful cartons, raise the products level.
3.Add activator benefit positive plate in electrolyte.Product Parameter:| Battery Specification | Battery Characteristics |
| Nominal Capacity | 12V | Capacity | 20hr | 130AH |
| Nominal Capacity(2hr) | 110AH | 5hr | 120AH |
| Dimensions | L(mm) | 355 | 3hr | 115AH |
| W(mm) | 173 | 2hr | 110AH |
| H(mm) | 190 | Open-circuit Voltage | 12.72-12.80 |
| TH(mm) | 190 | Charging Voltage(V) | Float Charging | 14.5-15 |
| Weight(kgs) | 21.7-22.7 | Cycles V | 16.3-16.8 |
| Container Material | ABS | Max Discharging Current(A) | 550A(5S) |
| Internal Resistance(mΩ) | ≤15 | Max Charging Current(A) | 16A |
| Capacity at different temperature | 40ºC | 102% | Remain Capacity(2hr) | 1 Months | 90% |
| 25ºC | 100% | 3Months | 80% |
| 0ºC | 85% | 6 Months | 60% |

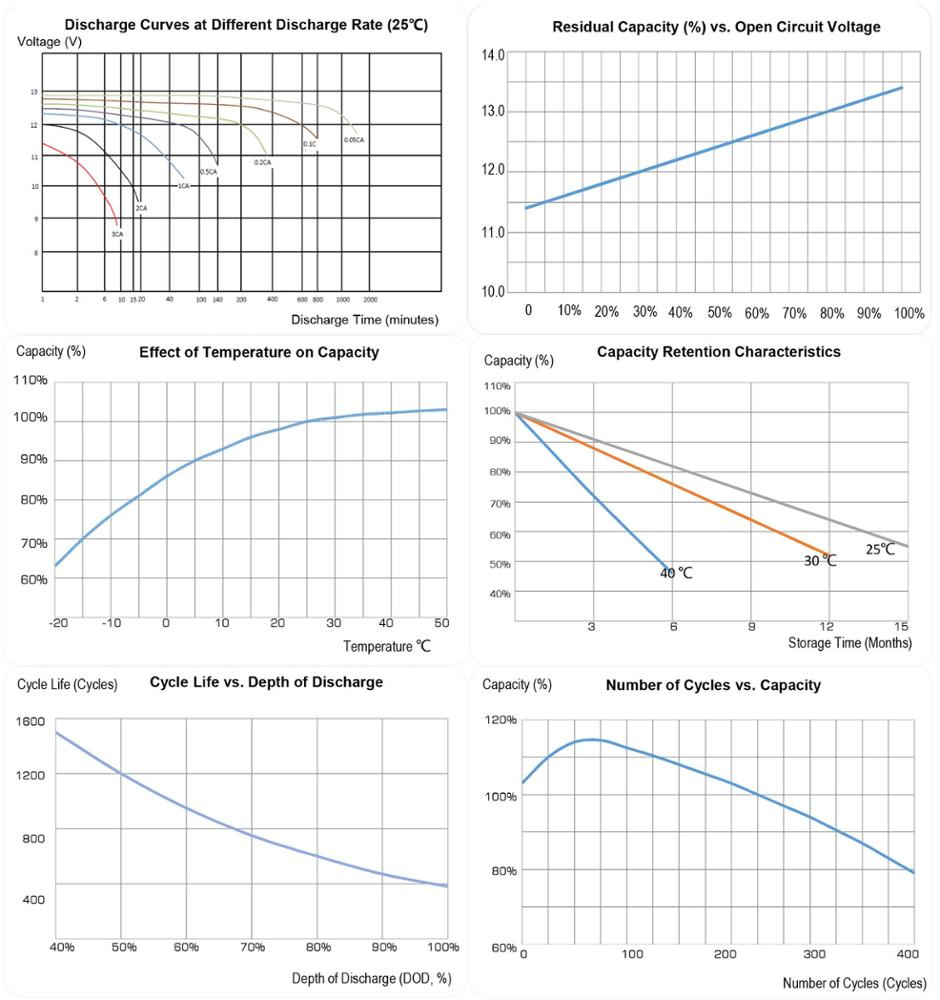

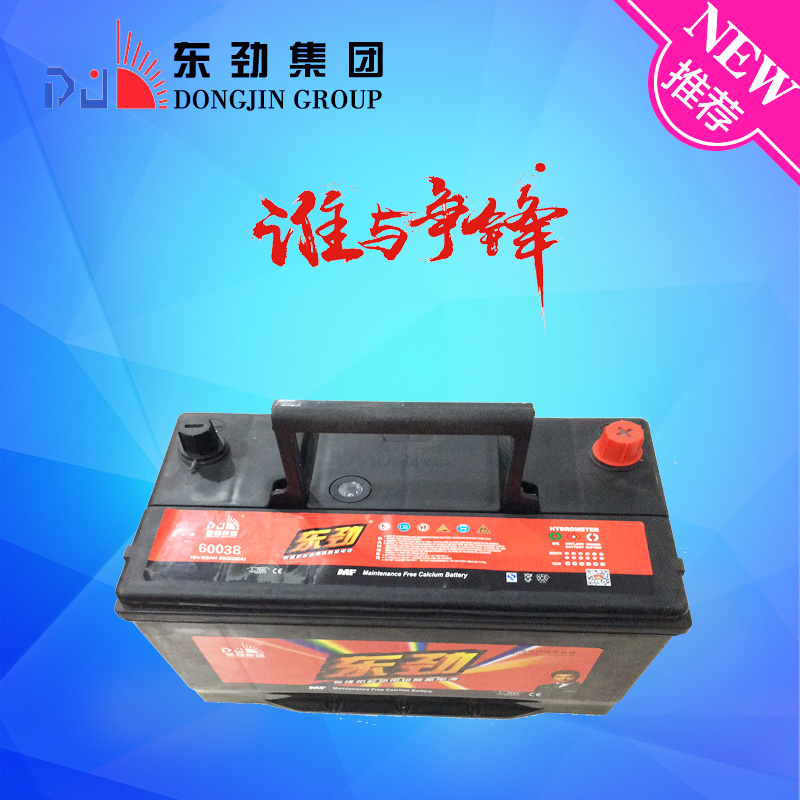

| Charging Curve | Battery Picture |
12V110(4pcs/set)
Phase I:The maximum charging current is 1.7A,voltage gradually increase to 14.4V.
Phase II:Charging voltage gradually increases from 14.4V to 14.7V,when charge current gradually decreases to around 0.40-0.50A,converted to float (trickle)charge.
Phase III:Constant charge Voltage13.75V. |
Relate Products:| Model | Voltage | Capacity | Dimension(mm) | Weight |
| 54017 | 12 | 45 | 205 | 173 | 188 | 188 | 14 |
| 78690 | 12 | 95 | 263 | 181 | 185 | 185 | 16.9 |
| G31 | 12 | 110 | 330 | 175 | 225 | 240 | 24.5 |
| 56618 | 12 | 72 | 274 | 175 | 188 | 188 | 17 |
| 55415 | 12 | 66 | 283 | 172 | 172 | 172 | 16.5 |
| 95D31 | 12 | 80 | 300 | 173 | 198 | 219 | 21 |
| 95D31 | 12 | 75 | 300 | 173 | 198 | 219 | 20.1 |
| 58043 | 12 | 85 | 314 | 175 | 190 | 190 | 19.5 |
| 60038 | 12 | 110 | 355 | 173 | 190 | 190 | 21.7 |
| MF90 | 12 | 90 | 355 | 173 | 190 | 190 | 20 |
| 6QW110 | 12 | 120 | 380 | 175 | 188 | 188 | 23 |
Company Profile:Dongjin Group, found in 1993, specialize in research, development, manufacturing and sales of lead-acid battery including globally known KINON and DONGJIN brand batteries. In 2012, our company establish factory in Jiangxi covered area of more than 200, 000, and in 2016 start the biggest battery production factory in Bangladesh with totally area more than 40000 square meters.
With independent R&D team, company have adopted advanced production equipment and testing methods, and effectively guarantee the quality of products, products with high capacity small volume, light weight, long lifespan, high performance, with excellent performance won the majority of consumer recognition and dependence. Widely used in automobiles, electric vehicles, electric power, telecommunication, UPS system, EPS system, security, electric tools, emergency lighting and etc. Fields.
Company Show:
FAQ:1.Q:May I take some samples to test before placing thhe order?
A:Yes,we can send a sample to you for test.
2.Q:Can you put my logo on the unit?
A:Yes,we can satisfy you to put the logo on the unit.
3.Q:Why your price competitive?
A:Because the lead plate,battery case ect,all battery accessories all from our produce.
4.Q:Can the price be cheaper?
A:Yes, you will be offered a good discount for big amount.
