| Prod Model: |
BC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
22 mm |
| The Temperature: |
55c to 350c |
| Power: |
12.5W |
| Colour Of Variable Resistor: |
Green or Brown |
| Resistance Wire Of Adjustable Resistor: |
Round a Flat Wire |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Fuse Resistor |
| Shape: |
Round |
| Brand: |
L&G |
Product Description

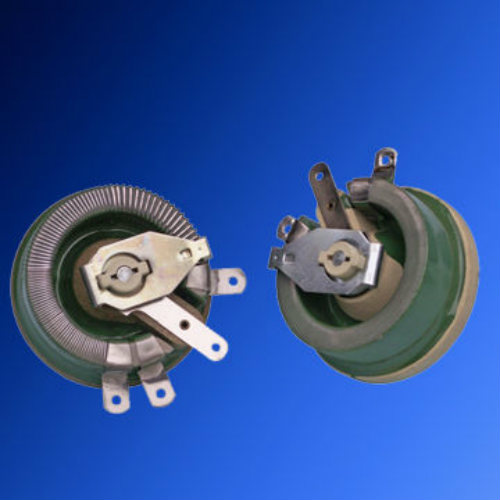

More shaft length and shape are available
High power, stable resistance
Packaged in boxes
For more detail information, you can download the PDF specification below
Specifications
Rotary Variable Resistor,Adjustable Load Resistor
1.Professional resistor manufacturer
2.Strict production process
3.OEM&ODM
Rotary Variable Resistance /Adjustable Load Resistor/Slide Rheostat
Production
name |
BC1 variable resistor,variable wirewound resistor ,power potentiometer |
Power rating |
25W-3000W |
Resistance value |
1Ω-10KΩ |
Resistance tolerance |
±5%,±10% |
Features
|
1.High power rating,resistance to humidity, resistance value in great adjustable range.
2.Widely used in educational modeling,load simulations,industiral machinery RPM adjustment,
voltage and current adjustment,instruments,and automated control installations, ect.
3.Can provide the knob with customers requirement.
|
Common
specification |
25W,50W,100W,150W,300W,500W,1000W,1500W,2000W,2500W,3000W ect. |
Performance
|
Test item |
Test condition |
performance |
Insulation
resistance |
JIS-C-5261 6-1
500V DC |
100 MΩ Min |
Dielectric
withstanding
voltage |
JIS-C-5261 7-1 1000V DC
60s Between terminal and axis |
Free or appearance or
structural irregularity |
Terminal
strength |
JIS-C-5261 6-5 3kg 30s |
Free or appearance or
structural irregularity
ΔR≤±(2%+0.1Ω) |
Vibration |
JIS-C-5261 6-6 1.5m/m
10-50-10 HZ/min 2H each |
Free or appearance or
structural irregularity
ΔR≤±(2%+0.1Ω) |
Load life |
JIS-C-5261 7-7
|
Free or appearance or
structural irregularity
ΔR≤±(5%+0.1Ω) |
Full gyration
angle |
JIS-C-5261 6-1 |
300±5°C |
Flame
retardation |
100%-600% rated power load |
US UL-94 flame retardation
test V-0 grade noncombustible |
Cooperation partner |
SAMSUNG,LG, TAIDA,CHANGHONG,TCL,KONKA ,ECT |
NOTE |
1. For customer specifications,please contact us to discuss the details.
2. Different power rating owning multi weight ,dimension and packing .
3. More details, please contact us. |
Sample:
1. Free charge sample: Could provide(less than 5 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
