Mosfet Lm7812CT of Fairchild Semiconductor Electronic Component

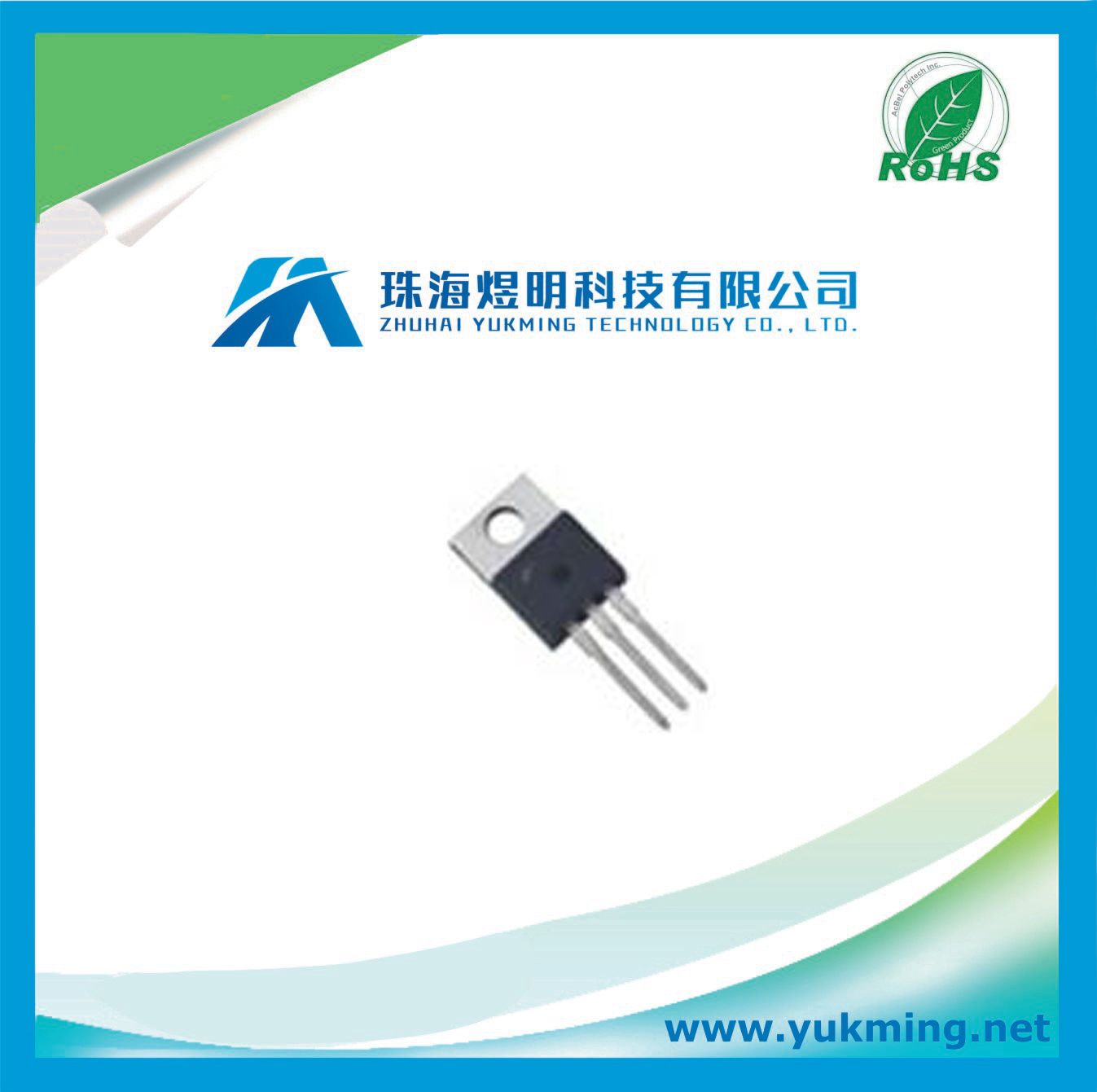

Name: Mosfet Lm7812CT of Fairchild Semiconductor Electronic Component
Brand: all-electronics-online.com
SKU: 796671405
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 0.156/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM7812CT

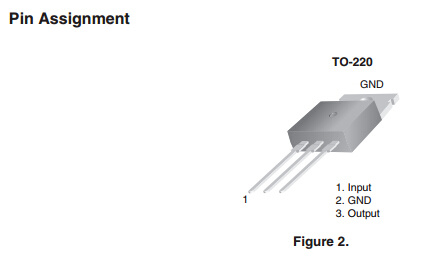

Package:	to-220-3

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Linear Regulator

DESCRIPTION
Standard Regulator Pos 12V 1A 3-Pin(3+Tab) TO-220AB Rail

Don't let unpredictable voltage levels ruin your circuit! Use this standard LM7812CT linear regulator from Fairchild Semiconductor to control your voltage levels! It has an overall accuracy of ±4 %. Its typical dropout voltage at current is 2@1A V. This voltage regulation device's single output can produce a current up to 1 A. By working with a maximum input voltage of 35 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 12 V, this is power management at its best. Users like the load regulation of 240mV and line regulation of 240mV. This product comes in rail packaging to keep individual parts separated and protected. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

Features
Output Current up to 1A
Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating Area Protection

Specifications
EU RoHS Compliant
Type Standard
Number of Outputs 1
Output Type Fixed
Output Voltage (V) 12
Polarity Positive
Maximum Output Current (A) 1
Maximum Input Voltage (V) 35
Typical Dropout Voltage @ Current (V) 2@1A
Accuracy (%) ±4
Line Regulation 240mV
Load Regulation 240mV
Maximum Quiescent Current (mA) 8
Special Features Short Circuit Protection|Thermal Protection
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Rail
Mounting Through Hole
Package Height (mm) 9.4(Max)
Package Length (mm) 10.67(Max)
Package Width (mm) 4.83(Max)
PCB changed 3
Tab Tab

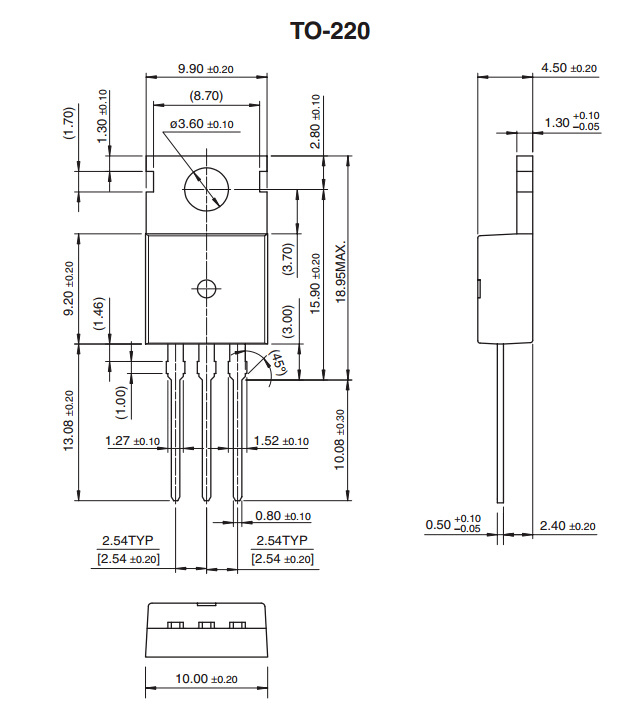

Standard Package Name TO-220
Supplier Package TO-220AB
Pin Count 3
Lead Shape Through Hole
