Mosi2 Heating Element for Furnace

Name: Mosi2 Heating Element for Furnace
Brand: all-electronics-online.com
SKU: 719832072
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	US $ 0.5-30/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSAM
Color:	Grey
Temperature:	1700c 1800c
Delivery Time:	3-10 Days
Features:	High Temperature Resistant
Size:	Customize
Usage:	Furnace, Kiln
Diameter:	3/6 4/9 6/12mm
Length:	0.5-100
Brand:	Mission
Product Name:	Mosi2 Heating Element for Furnace

Product Description

MoSi2 Heating Element Specifications
1. 1700C and 1800C MoSi2 heating elements.
2. U, W, UL, WLshapes can be made
3. Very fast delivery and competitive price

MoSi2 Heating Element for Furnace is our main product. As a professional manufacturer of ceramic products, Mission has been working in this field for 5 years. Thanks to the support of our exalted customers and laborious employee. Our enterprise is developing fast. It's our duty to provide high quality products and good service to our customers.

MoSi2 Heating Element Specifications
1. 1700C and 1800C heating elements.
2. U, W, UL, WL all shapes can be made
3. Very fast delivery and very competitive price

Mission MoSi2 Heating Elements Introduction

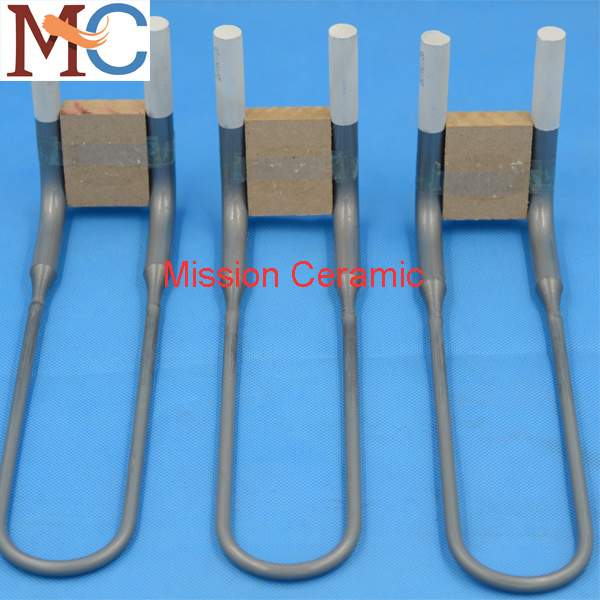

1. MoSi2 heating elements is a kind of resistance heating element made from Molybdenum Disilicide.
2. It's mainly used in high temperature furnaces and kilns as heaters.
3. It can be used in air and various gases environments.
4. Working temperature of MoSi2 heating element is 1300C to 1800C.
5. Widely used in the industries of metallurgy, glass, ceramic refractory,crystal electronic device, industrial furnace manufacture, etc

Types of Mission MoSi2 Heating Elements

1. Accoring to temperature: 1700C and 1800C
2. According to Shape: U, W, I, UL, WL, Spiral types.

Standard diameter of Mission MiSi2 heating elements.
(Hot zone dia / Cold zone dia)
3/6mm, 4/9mm, 6/12mm, 9/18mm, 12/24mm.

Different Working Temperature in Different Atmosphere.

Atmosphere	The Maximum Using Temperature of Element
Atmosphere	1700 Grade	1800 Grade
NO₂,CO₂,O₂,Air	1700°C	1800°C
He,Ar,Ne	1650°C	1750°C
SO₂	1600°C	1700°C
CO,H₂	1500°C	1600°C
WetH₂	1400°C	1500°C
DryH₂	1350°C	1450°C

How to order Mission MoSi2 Heating Elements

1. Confirm the temeprature type, 1700C or 1800C.
2. Confirm the shapes. like U, W, I, UL, WL, Spiral,

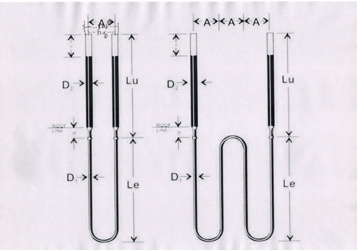

3. Con firm the size, Hot zone diameter (D1), Cold zone diameter (D2), Hot zone Length (Le),Cold zone length (Lu), Shank space (A). (see the drawing)

If you are interested in our MoSi2 heating element. please contact with us for detail information.

Zhengzhou Mission Ceramic Products Co., Ltd
No.11 Zhengshang Road, Zhengzhou, Henan, China
Tel: 86-371-56689683
Mob:86-152-8681-8691
Fax: 86-371-67103091

Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013.

Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.

Our main products as bellow.

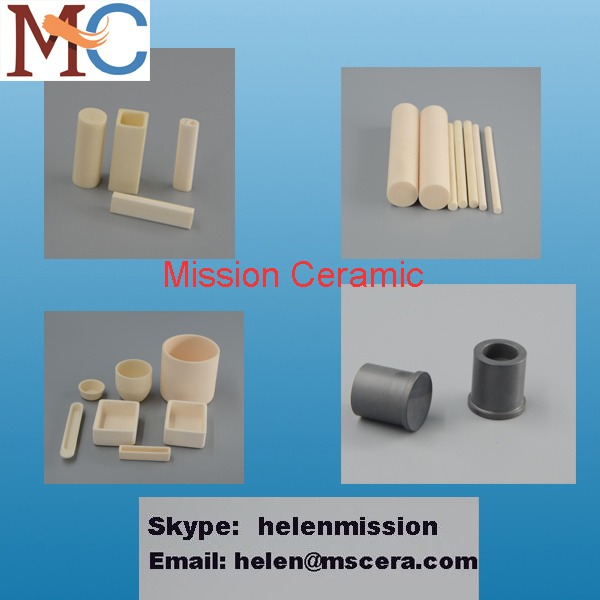

1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your

Design.

2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.

3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.

4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.

5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.

6. Heating elements, including MoSi2 heating element and MoSo2 heating element.

If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
