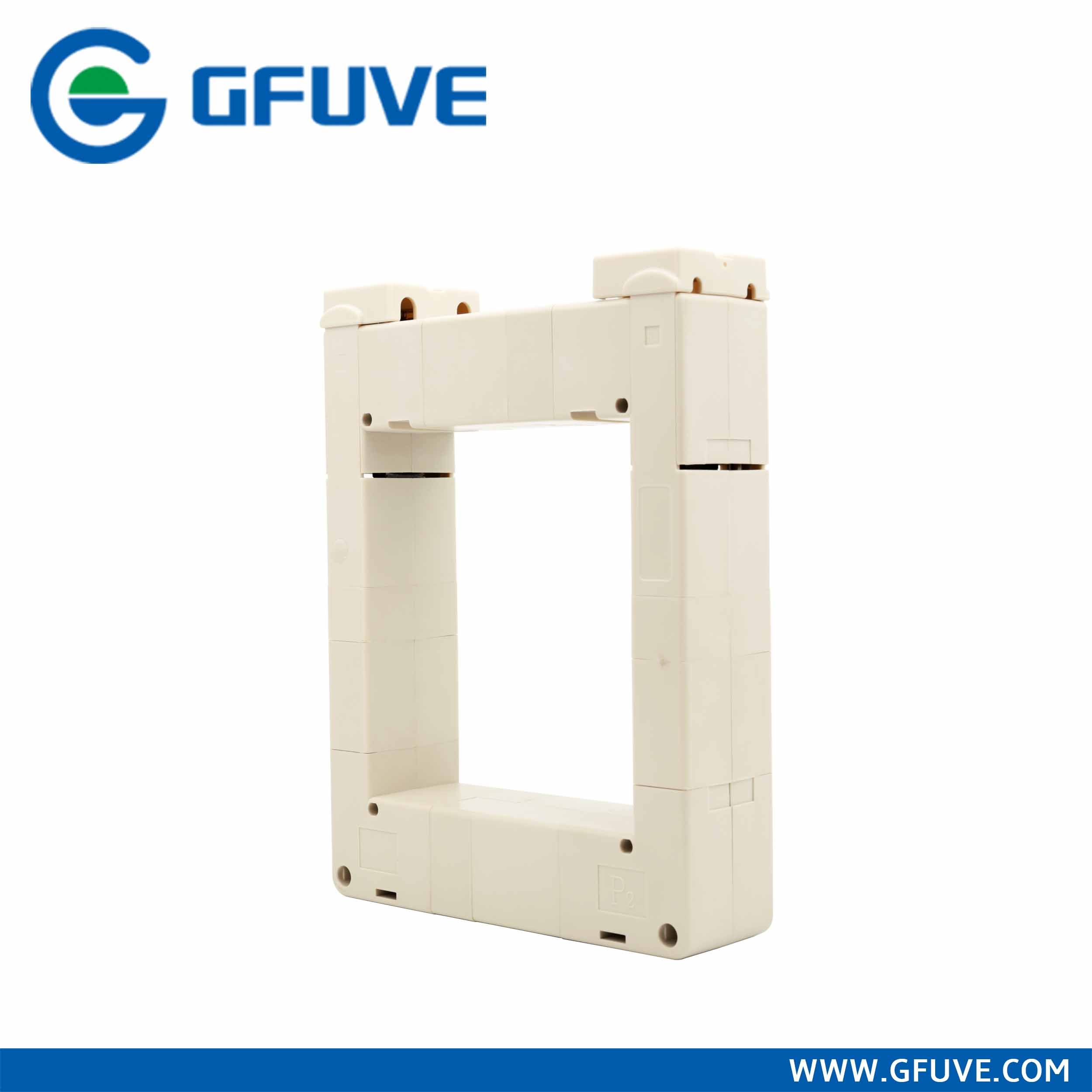

Most Cost-Effective Busbar Split Core Current Transformer

Name: Most Cost-Effective Busbar Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 721599902
Availability: InStock
Rating: 4.5 (122 reviews)

Price:	US $ 200/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZCK120
Standards:	IEC/En60044-1 & IEC61010-1 & IEC61869-2
Ratio:	1000: 1 or 2000:1 , Customized
Overload Withstand:	1.2 Times Rated Current Continuously
Accuracy:	0.2%, 0.5 %, 1%
System Voltage:	720V(0.72kv)
Output Signal:	10mA-200mA AC Optiona 333mv AC or 100mv-2V Optiona
Frequency Range:	40 Hz-500 Hz
Output:	Standard 2.5 Meter Cable
Max. Jaw Opening:	16 mm
Weight (G):	60
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Especificaciones
Split Core Transformador de Corriente también se llama Transformador de Corriente de División o Transformador de Corriente Abierto. Se aplica principalmente para el proyecto de la renovación del sistema eléctrico con la instalación fácil, ninguna necesidad de quitar la barra primaria, también se puede funcionar enciendiendo sin la utilización normal de la electricidad de los clientes. se puede usar para ayudar a los clientes a renovar proyectos y mejorar la eficiencia para que se ahorren los recursos humanos, las materiales y los financieros.
Esta serie se puede aplicar con el probador de relé, los medidores y dispositivos de medición.

Features
1. Fácil instalar o quitar con energía encendido
2. Estable y fiable
3. Proporción se puede ser personalizado
4. Diverso tamaño para satisfacer la instalación de las diferentes busbar

MAS INFORMACION POR FAVOR CLICK NUESTRA WEBSITE: http://gfuve.com/

SIEMPRE ESTAMOS DISPONIBLES DE SU NECESIDAD

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
