Most Patch Cord for Automobile

Name: Most Patch Cord for Automobile
Brand: all-electronics-online.com
SKU: 764692445
Availability: InStock
Rating: 4.8 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1355532-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China(Mainland)
Transmission Medium:	Single-Mode
Number Of Cores:	Multi-Core
Brand:	Huiyuan

Product Description

MOST Patch Cord

1. Description

MOST auto standard association was established by BMW, Daimler Chrysler, Harman/Becker and OASIS Silicon Systems in 1998. MOST(Media Oriented System Transport), using POF as transmission medium, has been widely used in automotive infotainment systems, because of its advantages like high-bandwidth, anti-vibration, anti-electromagnetic interference, less using quantity than traditional copper wire and easy to use. MOST25 was firstly used in BMW 7 Series in 2001, and now MOST technology has been applied in 94 models.
We have various Plastic Optical Fiber Cables for Auto Multi-media, Industrial Control Data Communication etc...Products include MOST-1355426, MOST-1355752, MOST-1355531, MOST-1355532, MOST-1355868 etc...

2. Technical Parameters

Item	Parameters	Unit	Numerical value
POF	Clad Diameter	um	1000±60
1^st Jacket	Material		Polyamides
	Diameter	mm	1.51±0.05
	Color		Black
2^nd Jacket	Material		Polyamides
	Diameter	mm	2.3±0.1
	Color		Orange
Cable	Splicing Loss	dB	≤ 3.0
	Numerical aperture		0.5
	Application wavelength	nm	650
	Incident angle	°	≤60
	Cable Length	m	1~100
	Minimum Bending Radius	mm	23
	Storage Temperature	ºC	-40~85
	Operation Temperature	ºC	-40~85
	Stretch-added loss	dB	≤0.5 (0~80N)

3. Applications

Digital broadcast;
Vehicle-mounted telephones;
GPS navigation system;
Video monitoring system;
Interactive safety system;
Multimedia entertainment system.

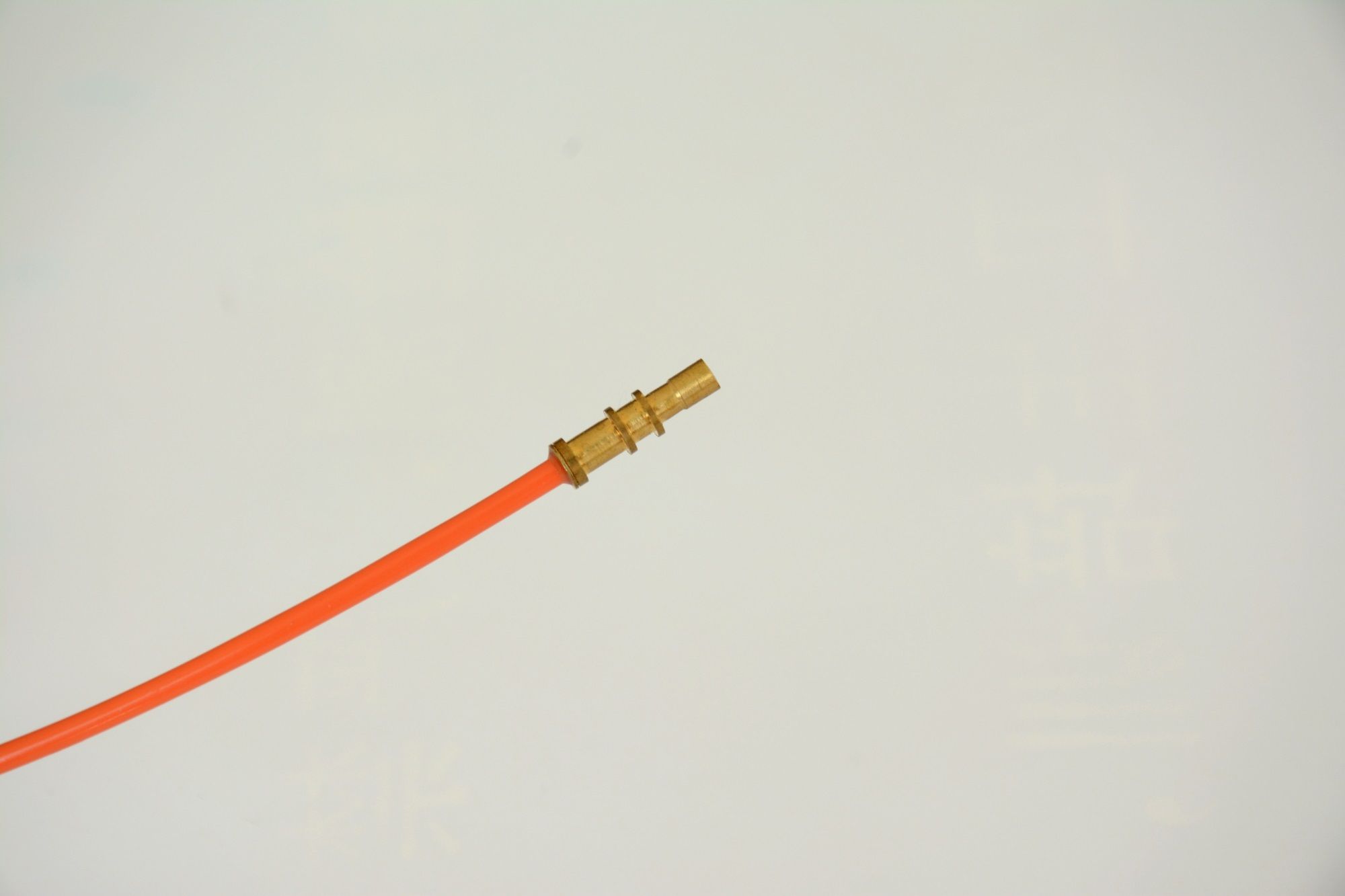

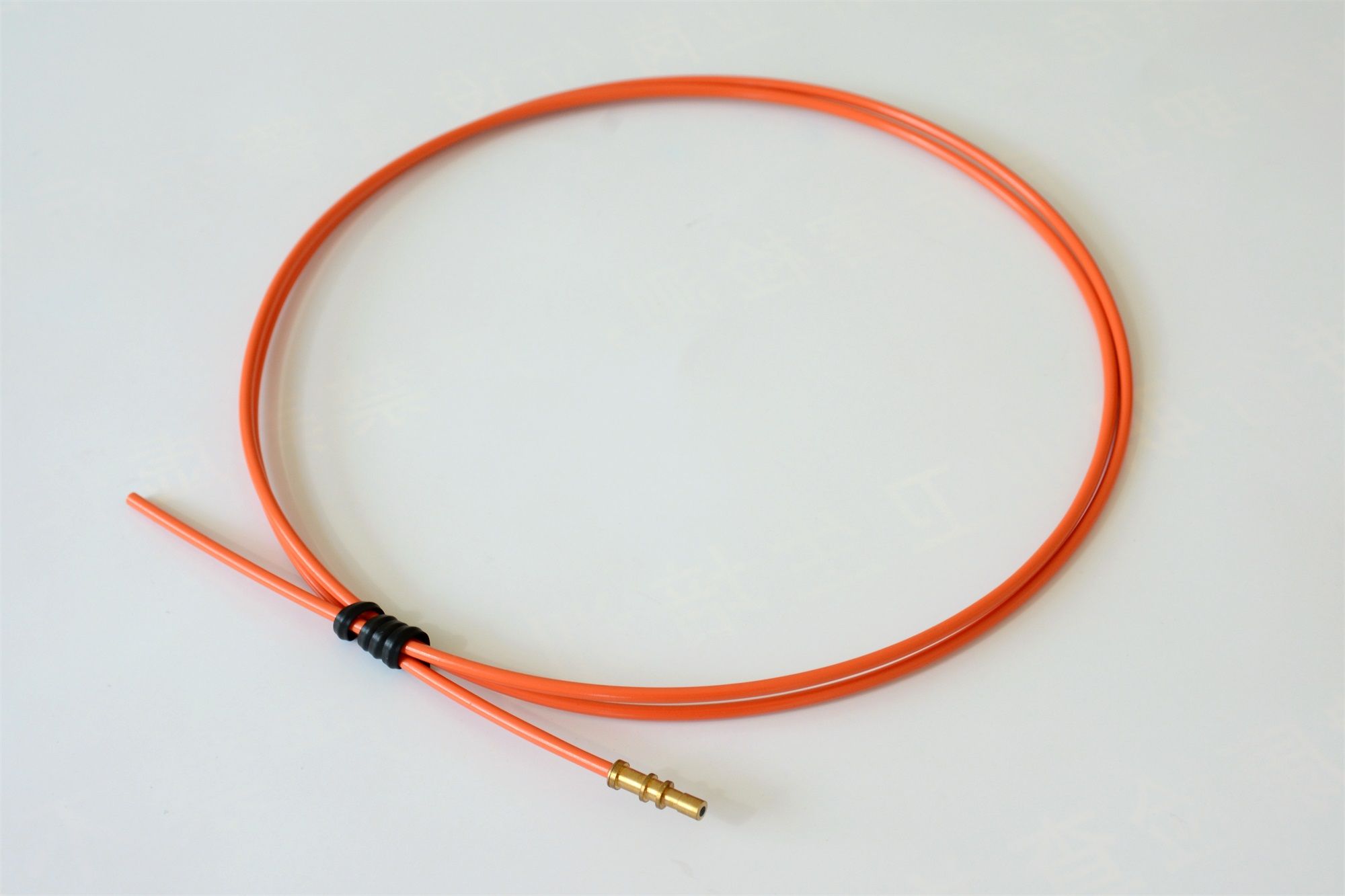

5. Product Pictures

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
