| Prod Model: |
TK116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk116 |
| Color: |
Black |
| Weight: |
45 G |
| Voltage: |
12VDC/24VDC/36VDC |
| Dimension(mm): |
79.5(L)X38.5(W)X13.5(H) |
| GPS Frequency: |
1575MHz |
| Battery Capacity: |
200mAh |
| Operating Temperature: |
-20ºC~70ºC |
| GPS Positioning Accuracy: |
5-15m (Depend GPS Signal) |
| GSM Positioning Accuracy: |
About 200 M (Depending on Density of Base Stations |

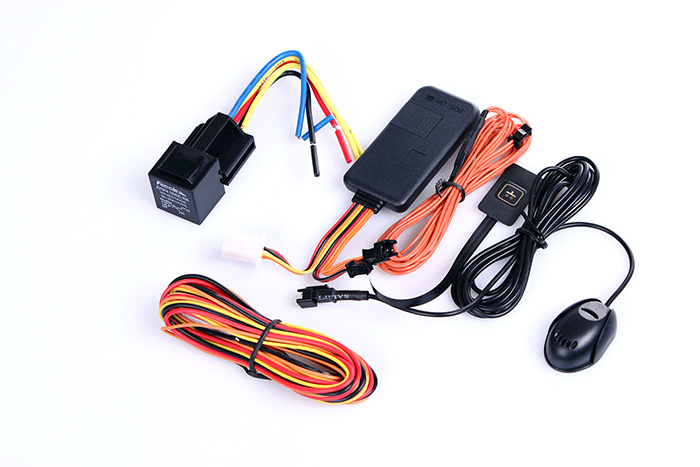

Product Description
PRODUCT FEATURES:Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Wide Input Voltage:6-36V DC.
GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
Keelin Tracking Service Platform, Keelin APP Client, SMS query
Built-in battery, Power disconnect alarm & Low battery alarm.
Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
Supports ACC status checking and vehicle status notifying.
Relay to remotely control the vehicle.
. SOS button for SOS call.
MIC to remotely monitor.
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
- PLATFORM/APP:
- Real-time Tracking
- Route Play Back
- Cut Oil (Need Relay)
- SOS Alarm (Need SOS Cable)
- Listen (Need Microphone)
- Vibration Alarm
- Collision / Falling Alarm
- Speed Alarm
- Geo-fence Alarm
- Power Disconnect Alarm
- Low Battery Alarm
- FUNCTION EXTENSION:
- 1. Default interface: Microphone input port for remote monitoring
- 2. Can be extended: ADC input port , used for temperature and oil detection
- 3. Can be extended: External lithium battery port ,used for long battery life
- 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
- TK116 extensible function
Delivery:Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty:All products have been strictly Quality Checked in house before packing.
All products have been well packed before shipping.
One year warranty is provided for all models. We will bear maintenance cost during warranty.
Whenever you will visit eelink you will be every time able to see new variety of gps tracking solutions. Very few online stores specialize in selling gps tracking solutions and that's eelink which specializes in selling such best gps tracking devices has become one of the best online stores for many people looking for gps tracking solutions at an affordable price.
Voltage | 12VDC/24VDC/36VDC |
Work current | <30mA@12V |
Standby Current | <10mA@12V |
GPS positioning accuracy | 5-15m (Depend GPS signal) |
GSM Positioning Accuracy | About 200 m
(Depending on density of base stations) |
GPS Frequency | 1575MHz |
GSM Frequency | 850/900/1800/1900MHz |
Hot/Warm/Cold Start time | <3s,<15s,<60s |
Battery Capacity | 200mAh |
Dimensions (mm) | 79.5(L)X38.5(W)X13.5(H) |
Operating Temperature | -20ºC~70ºC |
Operating Humidity | 20%~80%RH |
Weight | 45 g |
