Moten Steel Temperature Oxygen Probe

Name: Moten Steel Temperature Oxygen Probe
Brand: all-electronics-online.com
SKU: 799744155
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	US $ 9.5-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KR
Installation Type:	Oxygen Probe
IP Rating:	Oxygen Probe

Product Description

Technical indicators:

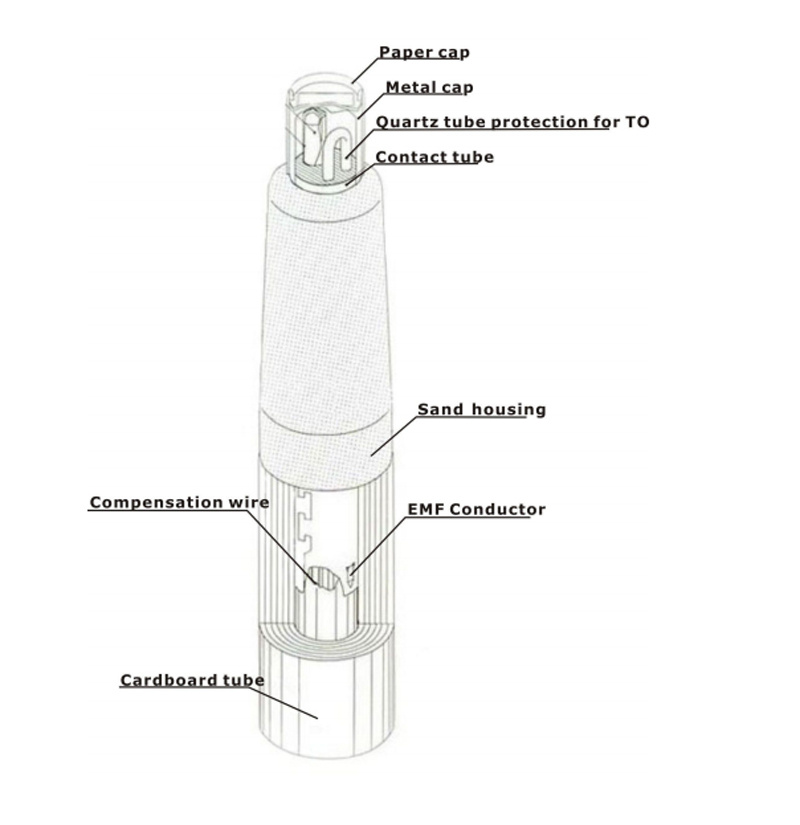

1.The dimensions:

Probe Diameter:OD 30 mm ID 18mm Length: L=800mm ~1300mm

Description: the probe structure size can be designed according to users' requirements from 800mm to 1300mm

2.Temperature measuring:

Thermocouple wires :accord with GB/T18304

Accuracy: 1554 °C at Pa Point 0~±1°C

Measurement range: 1540 °C ~ 1750 °C

Tolerance: 3°C

Measuring Time: 2-3s

3.Oxygen activity :

Range: 1~1000ppm

Tolerance: >150ppm, 5ppm <20ppm, 0.5ppm

Measuring Time: 4-5s

4.Oxygen electrical potential:

Range: -300~+300mv

Reproducibility:2mv at 1600°C

Measuring Time: 4-5s

Type	Model	Max temperature(°C)
S	TO-S	1760
R	TO-R	1760
