| Prod Model: |
MJ-301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
1.9g/cm3 |
| Size: |
1220X1020mm |
| Thickness: |
1-50mm Available |
| Delievery Time: |
Within 7-10 Working Days |
| Tensile Strength: |
More Than120 MPa |
| Appliction: |
for Motor & Generator |
| Samples: |
Free Samples Are Welcome |
| Formation Methods: |
High Temperature and High Pressure |
| Thermal Expansion Rate: |
Greater Than 70% |
| Customizable: |
Yes |
| Application: |
Motor |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Maximum Voltage: |
10KV~20KV |
| Thermal Rating: |
According to The Impregnated Varnish |
| Color: |
Pink/Red/White |
| Brand: |
Mj |
Product Description
Feature:
Solve the long-term operation of motor slot wedge looseness
Ensure that the motor can run reliably
Extend motor service life
Important significance to the motor & electrical industry technology progress
Application:
AC and DC motor and generator groove strip
Coil end insulation cushion block
Kinds of electrical equipments
The thermal expansion rate is greater than 70%
------------------------------------------------------------------------------------------------------------------------------
We Accept All Kinds of Payment
------------------------------------------------------------------------------------------------------------------------------
Our company covers an area of about 5000 square meters, construction area of about 2200 square meters.
------------------------------------------------------------------------------------------------------------------------------
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
------------------------------------------------------------------------------------------------------------------------------
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 tons of Insulation Varnish. Production is Strictly Under Control.
------------------------------------------------------------------------------------------------------------------------------
10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed Machining Components.
------------------------------------------------------------------------------------------------------------------------------
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
------------------------------------------------------------------------------------------------------------------------------
Our Business Scope Is All Over The World, A. O. Smith Is One of Our VIP Customers.
------------------------------------------------------------------------------------------------------------------------------
FAQ:
(1) Can you give me a discount price?
It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) How can I get a sample?
Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
| Basic information |

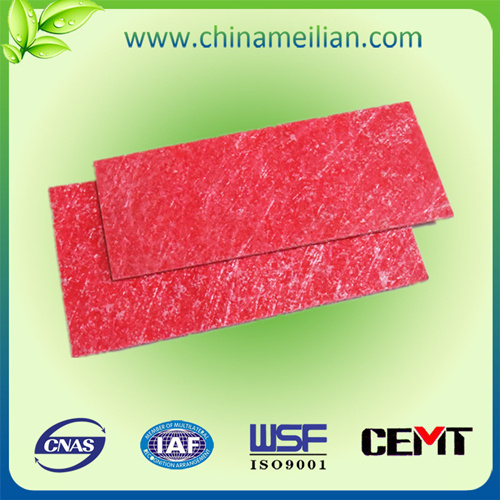

| Product name | Thermal Expansion Fiberglass Sheet/Strip/Pad |
| Item No. | MJ-301 |
| Brand | MJ |
| Material | Alkali free fiberglass |
| Grade | With the same grade of the impregnate varnish |
| Technical Performance |
| Density | ≥1.4g/cm 3 |
| Appearance | Light pink, white, surface smoothly, cutting edges neatly, without layer and impurities |
| Sheets Thickness | 0.1-50mm |
| Size | ≥1220x980mm |
| Formation methods | High temperature and high pressure |
| Water absorption | ≤1.0% |
Thermal Expansion Rate(Thickness Direction)
30min/130°C
30min/180°C | ≥50%
≥80% |
| Reference Standard | GB/T1303.1-1998 |

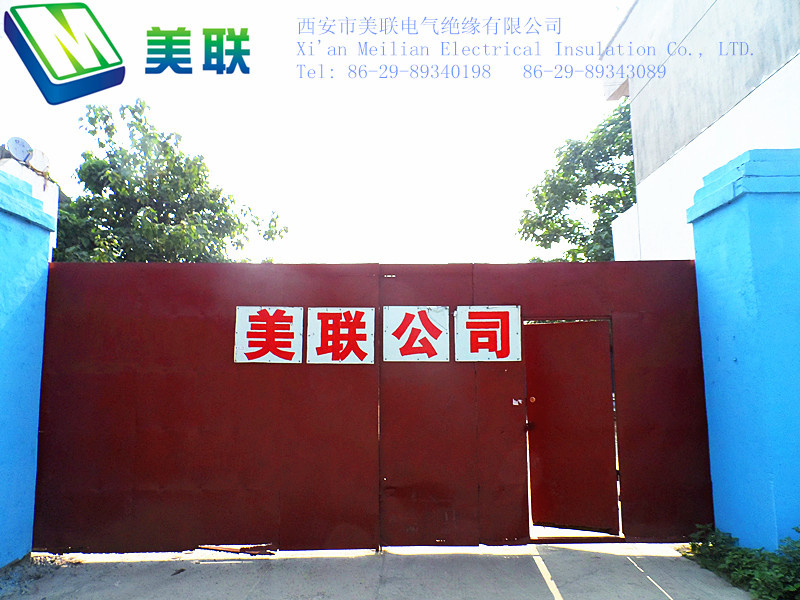

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

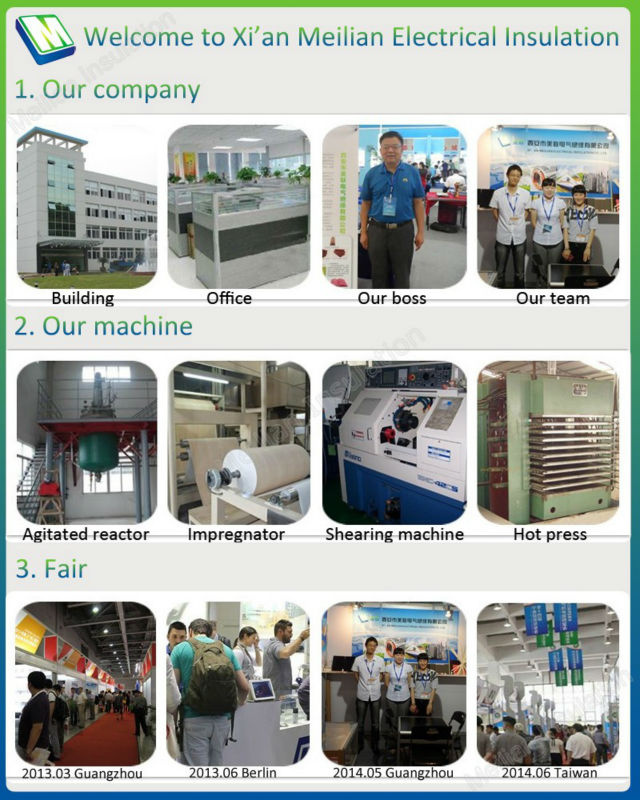

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
