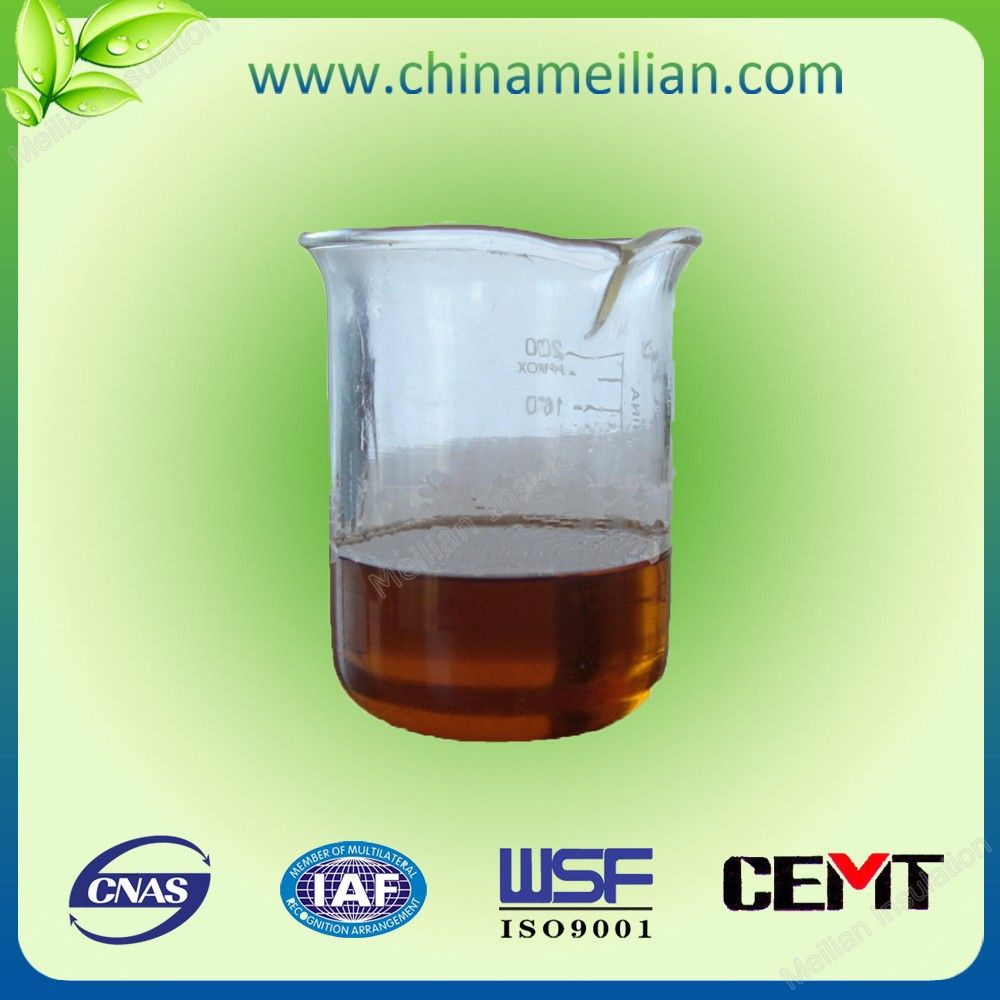

Motor Insulation Impregnating Varnish Material

Name: Motor Insulation Impregnating Varnish Material
Brand: all-electronics-online.com
SKU: 785873295
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 11000-13000/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-1059
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	1.14G/Cm3
Solid Content:	55%+2%
Samples:	Free
Formation Methods:	High Temperature and High Pressure
Appliction:	Motor & Generator
Delivery:	7-10 Working Days
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Chemistry:	Hybrid Insulation
Material:	Silicone
Thermal Rating:	H 180
Maximum Voltage:	>100KV
Type:	Insulating Paint
Brand:	Mj

Product Description

Feature:
· High dielectrical property
· Good heat, cold and corrosion resistance
· High mechanical strength
· Strong adhesion

Application:
For impregnating insulation of coils for pulling motors on railway
Coating insulation of valve plate for lightning arrester
Impregnating Grade H motors and any electric coils.

Basic Information
Product name	Heat-Resistant Polyester Impregnating Varnish
Item No.	MJ-1059
Brand	MJ
Material	Polyster resin and additives
Grade	Grade H
Technical Specification
Appearance	Transparent liquid, no impurity and Insoluble particles
Density	1.14g/cm 3
Viscosity, by viscosimeter. No.4, at 23±2°c	90-120S
Solid Content	55 ±2 %
Film drying time	≤1 h
Cureablity of thick film	Not less than S1, U1, 13.2 Uniform
Bolding strength at room temperature	≥80 N
Electric strength: At room temperature At 200±2°C After immerson In water	≥80 MV/m ≥40 MV/m ≥40 MV/m
Volum resistivity: At room temperature At 200±2°C After immerson in water	≥1x10 5 MΩ@m ≥1x10 3 MΩ@m ≥1x10 4 MΩ@m
Storage period	6 Month

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
