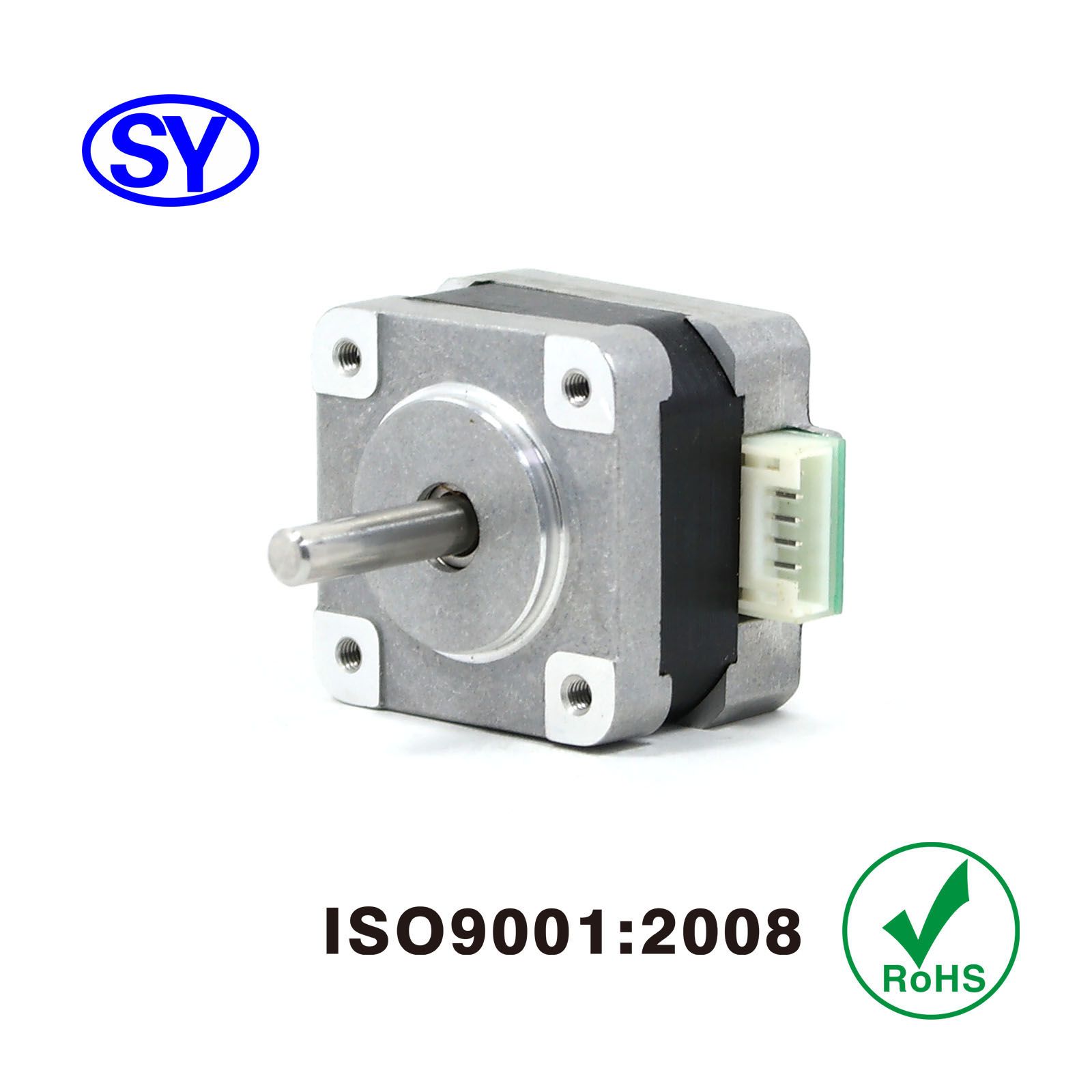

Motor Length 35mm 1.8 Degree NEMA14 Stepper Motor

Motor Length 35mm 1.8 Degree NEMA14 Stepper Motor
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: 35BYGH501-B-17
Model Number: 35 Bygh501-B-27
Step Angle: 1.8 Degree
Holding Torque: Larger Than 120mnm (17 Oz-in)
Motor Length: 24mm
Shaft: Round Shaft (Customizable)
Connectors: Plug-in, Lead Wires
Payment Term: 30% Deposit, 70% Balance Before Shipment
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Electromechanical
Operate Mode: 2 Phase-8 Parts
Certification: CE
Brand: Shengyang

Product Description

Motor Length 23MM 1.8 Degree NEMA14 Stepper Electrical Motor


Features:

Low lnertia

Small Size

High Acceleration


Product Description:

1. Specifications:

Motor Model: 35 BYGH501-B-27

Step Angle: 1.8° ± 5% full step, no load

Holding Torque: ≥ 120mNm (17 oz-in)

Resistance per Phase: 30 ohm

Inductance per Phase: 21 mH

Shaft End Length: 17 mm (0.67 in)

Shaft: Round Shaft

Connectors: Plug-in

Ambient Temperature: -24º C - +60º C

Relative humidity: 90% MAX

Resistance Accuracy: ± 10%

Insulation Resistance: Larger than 100mΩ 500V DC

Dielectric Strength: 600V AC for 1S, leakage current less than 1mA

2. Note:

Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.


3. Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.

About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001: 2008 quality system, all products can be customized, welcome to contact us for more details.

Contacts: Ms.Rita Law
Mobile: (+86) 13631101993

Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.

Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.

Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.

With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.

Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.

As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
