Motor Protector / Motor Protection with Stable Functions

Name: Motor Protector / Motor Protection with Stable Functions
Brand: all-electronics-online.com
SKU: 696552485
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	(CDD1-1, 2)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Insert
Function:	Overloading, Phase Failure
Certification:	CCC
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

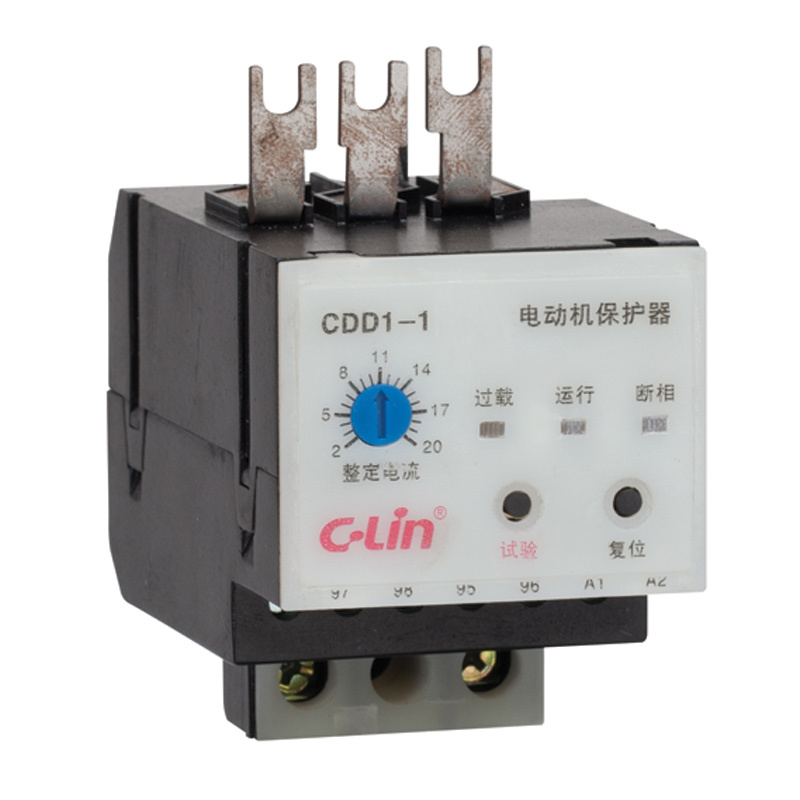

Motor Protector / electrical protector
HHD Series motor protector can be used in the circuit of alternating current 50Hz, rated working current 380V.
Motor control circuit can be formed by combining motor protectors with switching apparatus like AC contactors. When the abnormal working states(such as phase failure, overloading, three-phase unbalance, overvoltage, undervoltage, short circuit etc. ) emerge in the main circuit of motors, motors can be protected quickly and reliably by breaking switch and disconnecting three-phase power.
HHD Series motor protectors conform to GB14048.4 standard and got CCC approval.

Product name	Motor protector
Model number	CDD1-1, 2
Working power	AC220, AC380V 50Hz
Current range	1: 2-20A; 2: 8-40A
Protection function	phase failure, overloading
Setting mode	potentiometer static setting
Display mode	working state is indicated by LED
Contact form	1NC
Contact capacity	3A AC380V(resistance)
Outline dimension	CDD1-1: 508188.5mm
	CDD1-2: 56.587102.5mm

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
