| Prod Model: |

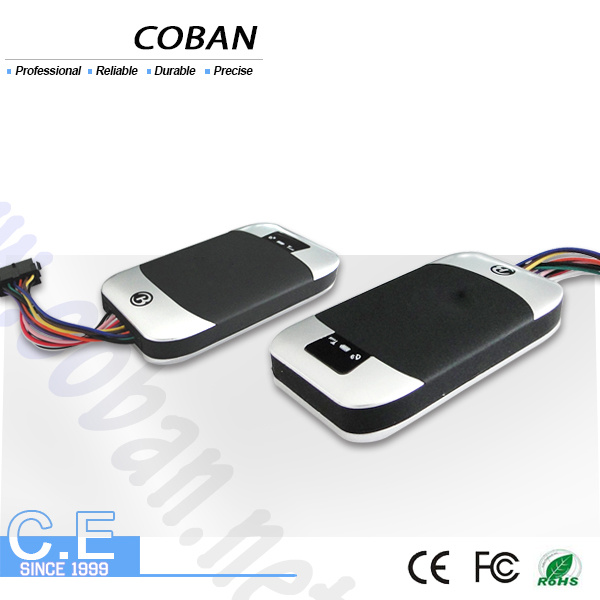

Motorcycle GPS303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Back Up Battery: |
Chargeable 3.7V 500mAh Li-ion Battery |
| Map: |
Realtime Google Maps |
| Band: |
850/900/1800/1900MHz |
| Applied For: |
Motorcycle, Vehicle |
| GPS Sensitivity: |
-159dBm |
| For Car Security: |
GPS Tracking&Cut Car Engine |
| Easy To Install: |
Internal GPS&GSM Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Certification: |
ISO2000 |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban / Baanool |
Product Description
Top quality, fast delivery in 3 days and one year warranty.
How is working ?
Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example google earth) which will show where exactly the unit is located.
With some little setup, you can also have the device to send the data directly to a computer through GPRS and display its location on a map with our bundled software for real-time location tracking. our online software tracking platform is:www.gpstrackerxy.com
Main Features:
Condition:
Color: Black
Size: 8.9cmx5.0cmx1.6cm(3.5"x1.97"x0.63")
Weight: 65g
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
Handheld and Vehicle purpose.
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Used widely for person, vehicle and other moving objects tracking.
Functions:
1.Input sim card, Turn on the device, Support to set 5 admin number monitor the GPS device.
2. Single Locating
3. Auto track continuously
* Track with limited times upon time interval
* Smart track upon time and distance interval
4. Location based service (LBS)
5. Automatic update positions of vehicle turns
The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function works only in GPRS mode.
6.Absolute street address by SMS
7. Track mode
8. Voice Monitor
9. GPS drift suppression
10. External power off alarm(suitable B,C,D model)
11. Storage
12. Data load
13. SOS Alert
14. GPS blind Spot alert
15. Movement alert
16. Geo-fence
17. Multi-area management
18. Low battery alarm
19. Sleep Mode
20. Forward the third parties' message
21. Charges Inquiry
22.Cut off oil/power system(suitable C,D model)
23.Function of Remote controller(ONLY for GPS303D)
24. ACC working alarm(Suitable B,C,D model)
25. Door Alarm (Suitable C,D model)
26.Fuel alarm(Suitable C,D model)
27.Alarm without GSM network service(suitable C,D model)
28.TCP/UDP Switch
29. Configure parameters by USB
Use optional USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial configuration file with notepad, operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
30.Terminal(Local)time setting
31.TCP/UDP Switch
31.Reset
Send SMS "reset+password" to tracker, it will reply " reset ok", the GSM and GPS module of the tracker will be reset.
32.Less GPRS Traffic
All our trackers are real time tracking system with google map, have the following 5tracking solutions:
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-PC Installation software tracking.
-Web site server online tracking. Capable of monitor 10,000 objects (www.gpstrackerxy.com user id :demo,password:8888)
-Andriod / Iphone App
| Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
