| Prod Model: |
303F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
65g |
| Size: |
89*50*16mm |
| Shipment: |
by Express or Air |
| Delivery Time: |
1-3 Working Days |
| Car Security Tracking Device: |
Engine Immobilizer Remotely, Acc Working Alarm |
| Engine Immobilizer: |
Shut off Engine Remotely |
| Feature: |
Waterproof, Internal Anntennas |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPS303f |
| Screen Size: |
No |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description
Tracker for motorcycle
Model: GPS 303
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2. Features
1. Handheld and Vehicle purpose.
2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
This device is divided into the following four types according to the function parts:
Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.
Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.
Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement

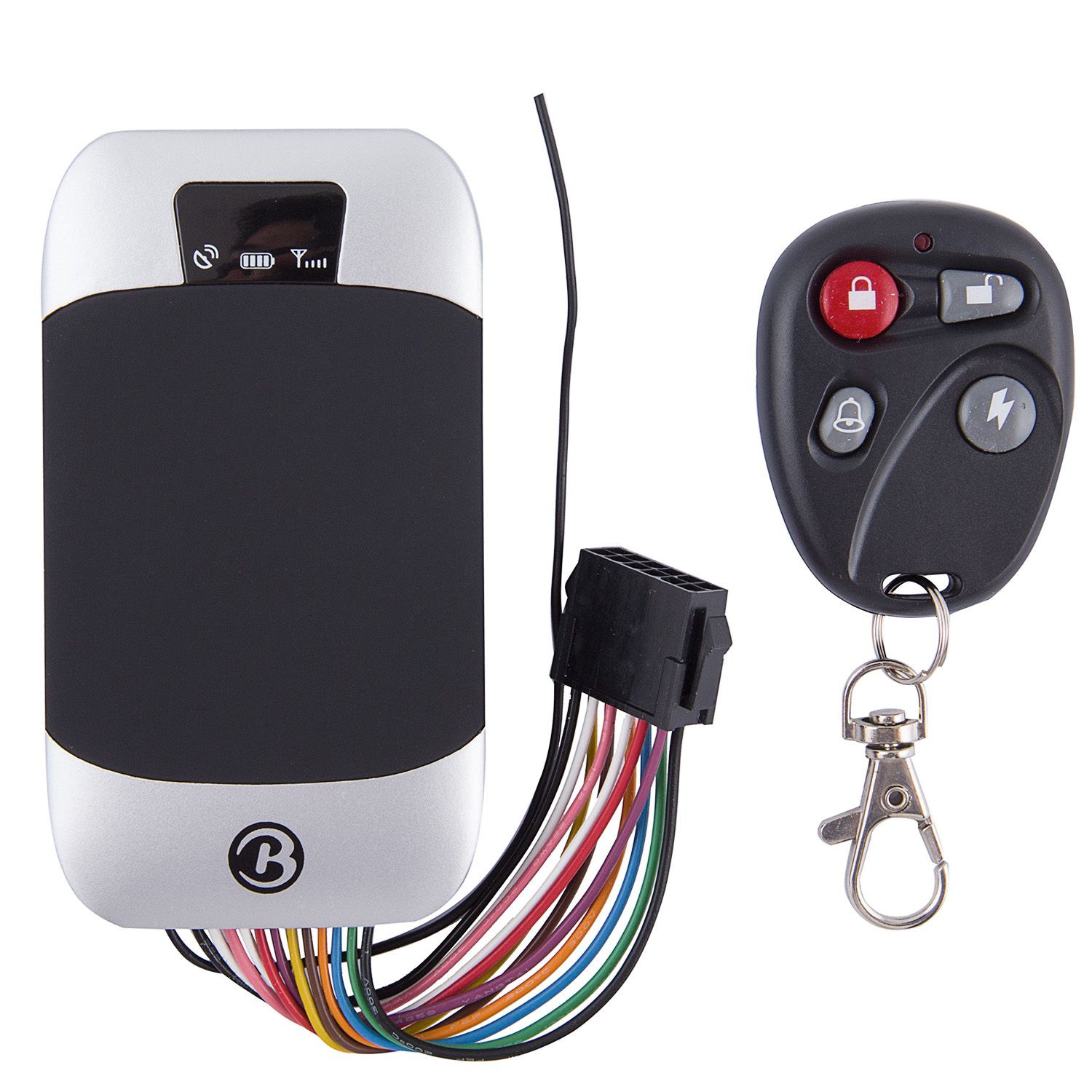

Type D: Add remote controller to ARM & DISARM on the basis of type C.
3. Fuctions
-Auto track continuously
-Automatic update positions of vehicle turns
-Location based service (LBS)
-Voice Monitor
-Low battery alarm
-External Power off alarm (Suitable for B, C and D model)
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm (Option, for model B, C, D)
-Fuel alarm (Option, for model C, D)
-Remote cut off the Oil and Power System (Option, for model C, D)
-Function of Remote Controller (Option, for model D ONLY)
-Check the Vehicle State
-Reset Hardware
-Sleep Mode(save battery mode)
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting/tracking
| Content | Specifications |
| DIM | 80*59*16mm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Sim900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
FIVE tracking solutions:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones
