| Prod Model: |
GPS303B |
| GPS Accuracy: |
5m |
| GPS Chip: |
Ns1315 |
| Band: |
850/900/1800/1900MHz |
| Network: |
GSM/GPRS |
| GPS Sensitivity: |
-159dBm |
| Cert: |
Ce, FCC |
| Warranty: |
1 Year GPS Tracking System |
| Features: |
Easy Hidden Installed GPS Tracker, Waterproof |
| Applied Area: |
Vehicle, Motorcycle GPS Tracker |
| Service: |
OEM &ODM |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Model: |
GPS Tracker GPS303b |
| Brand: |
Coban |
| Chip: |
Ns1315 |
| Certification: |
ISO9001 |
Product Description

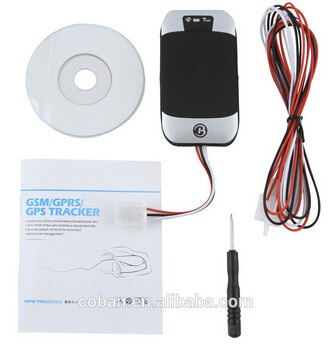

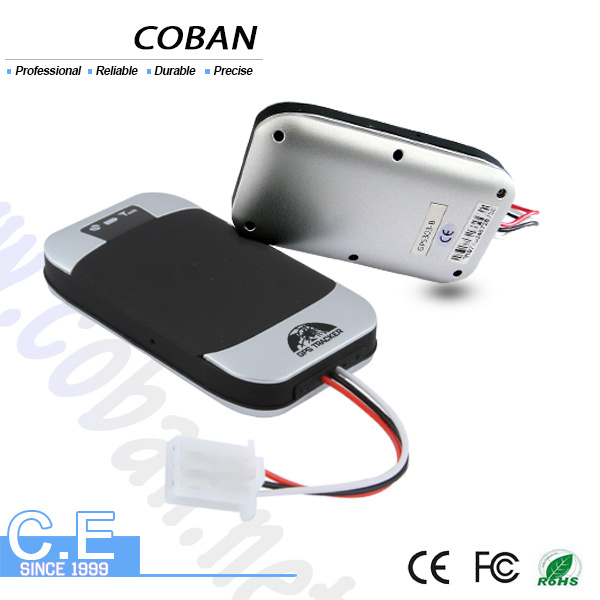

Motorcycle GPS tracker 303B with 3 Pin harness easy installed gsm gps tracking device How does it work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.

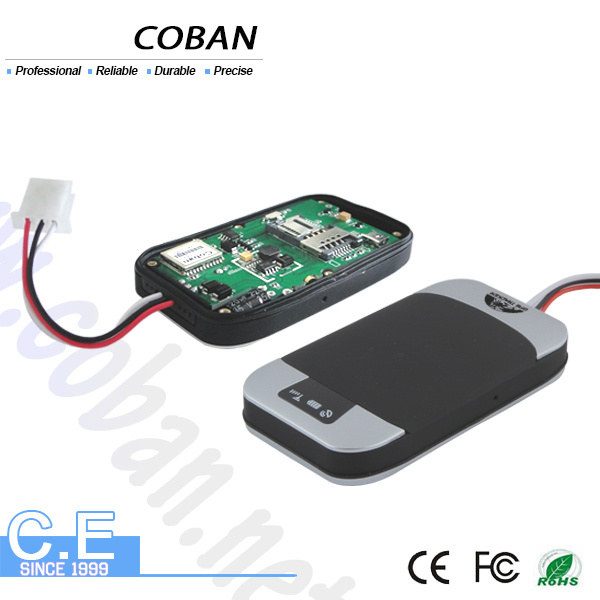

With internal GSM,GPS antenna , this device is easy to hide and install on vehicle or motorcycle . It is powered by both internal battery and the automotive battery .
Main Function
-Change Password
-Authorization
-Single Locating
-Auto track continuously
-Automatic update positions of vehicle turns
-GPS drift suppression
-Absolute street address by SMS
-Location based service (LBS)
-Voice Monitor -Data logging
-Data Load
-Forward the third parties' message
-Charges Inquiry
-Alarm Function
-Low battery alarm
-GPS blind Spot alert
-Ext power off alarm
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-Arm
-Silent Mode
-DISARM
-Alarms under Arm State
-Shock Sensor alarm
-Check the Vehicle State
-Reset Hardware
-Sleep Mode
-Sleep by time
-Sleep by shock sensor
-No sleep mode
-Check IMEI
-Set up Terminal (local) Time
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting
-Setting up APN
-GPRS User ID and password Setup
-IP and port setup
-Less GPRS traffic
-Modes Switch between "SMS" and "GPRS"
-Set up monitor center number
Application:
Vehicle fleet/logistics/Vehicle rental
Specification
Content | Specification |
DIM | 8.9×5.0×1.6cm |
Weight | 65g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Car power supply | 12 V -24V |
Back up battery | Chargeable 3.7V 500mAh Polymer Li-Battery |
Storage Temp | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Tracking solutions

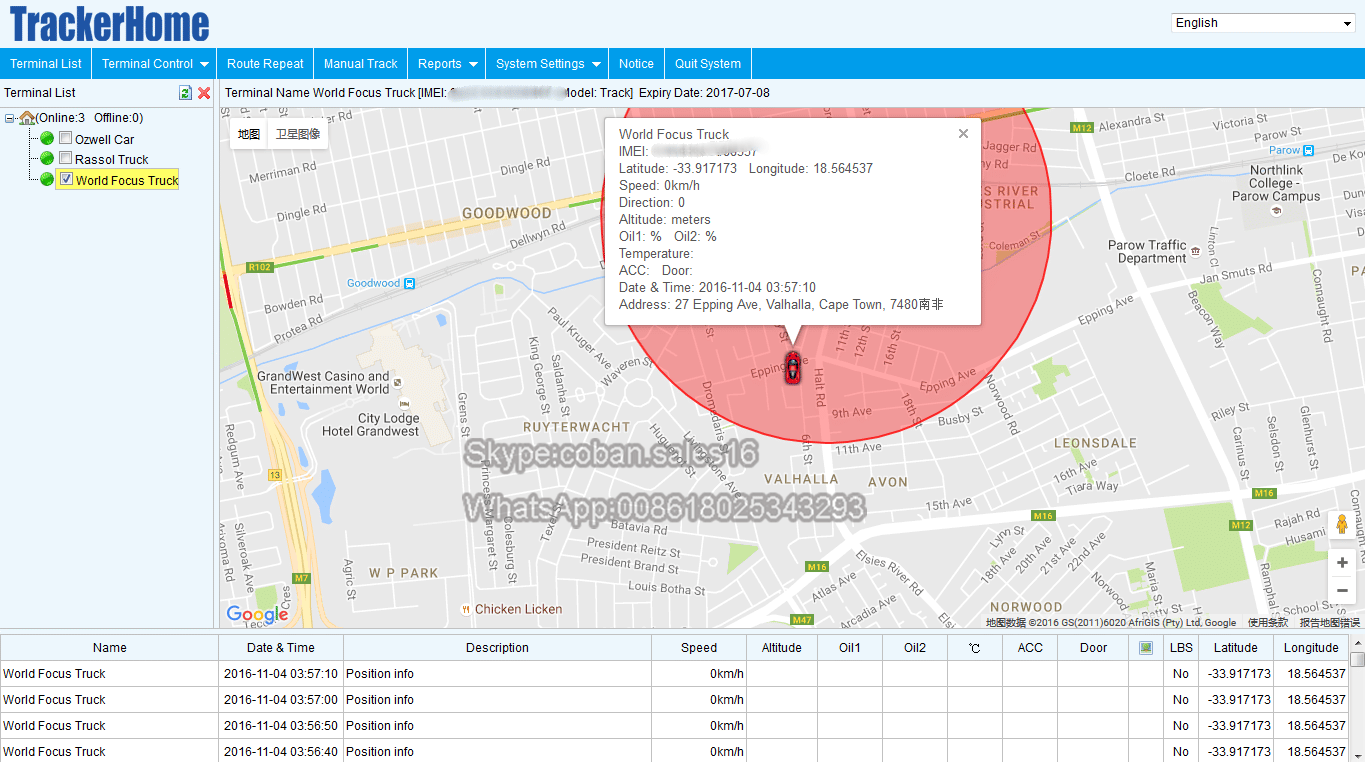

Online tracking system
www.gpstrackerxy.com(demo account: demo, password: 8888.)
Android and IOS APP
Our Services
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
4.We offer one year free trial time on our tracking platform www.gpstrackerxy.com.
