| Prod Model: |
motorcycle hide GPS304 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
GPS304 |
| GSM Frequency: |
850/900/1800/1900MHz |
| Size: |
75*50*24mm |
| Weight: |
50g |
| Shipment Terms: |
by Express/Air |
| Delivery Time: |
Within 3 Working Days |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC |
| Features: |
Waterproof, Internal GPS GSM Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
Baanool GPS Tracker 304b |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

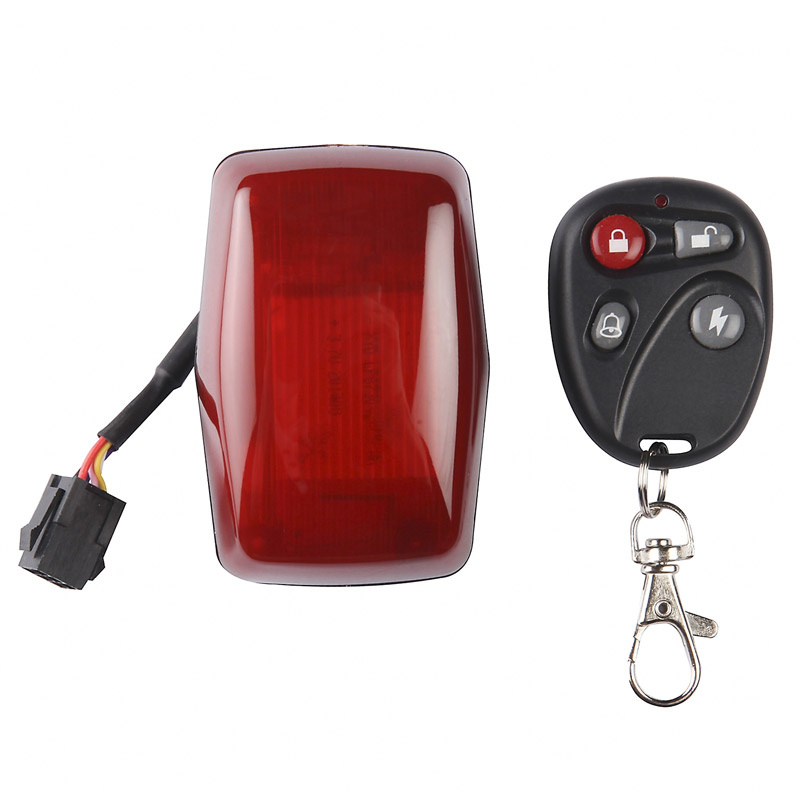

motorcycle GPS Tracker with Engine Cut and Acc Working GPS304B
1. Summary
1.1 Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
1.2Features
1.2. 1 Taillights shape, easy to hide, waterproof design, and outdoor installation.
1.2. 2 Built-in GSM, GPS antenna.
1.2. 2 Support GPS and LBS (location based service) double tracking solution
1.2. 3 Support SMS / GPRS / Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
1.2. 4 Support configures the settings remotely
1.2. 5 Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
2. Applications
Used widely for motorcycle and other moving objects tracking.
Function
Automatic update positions of vehicle turns
-GPS drift suppression
-Location based service (LBS)
-Low battery alarm -External Power off alarm
-GPS blind Spot alert
-SOS Alert
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm
-Cut off the Oil and Power System -Function of Remote Controller (Option, for model B ONLY)
Alarm -Shock Sensor alarm
-Alarm without GSM network service
-Check the Vehicle State
-Reset Hardware
-Sleep Mode
-Set up Terminal (local) Time
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting -Setting up APN
-GPRS User ID and password Setup
-IP and port setup
-Less GPRS traffic
-Modes Switch between "SMS" and "GPRS"
-Set up monitor center number
Four tracking solutions:
- SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
- -Get absolute address by SMS
-Optional Android IOS app tracking
- Web server online tracking www. baanool. COM (Demo ID: Demo; Password: 8888. ) It is ok to track 10, 000PCS units in platform at one time!
| Content | specifications |
| DIM. | 75*50*24mm |
| Weight | 75g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| | |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | Chargeable 3.7V 1000mAh Li-ion battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
