| Prod Model: |
TAIRONG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CE: |
ISO9001 |
| Certification: |
CCC |
| Type: |
Temperature Controller |
| Usage: |
Air Conditioner |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Stainless Steel |
Product Description

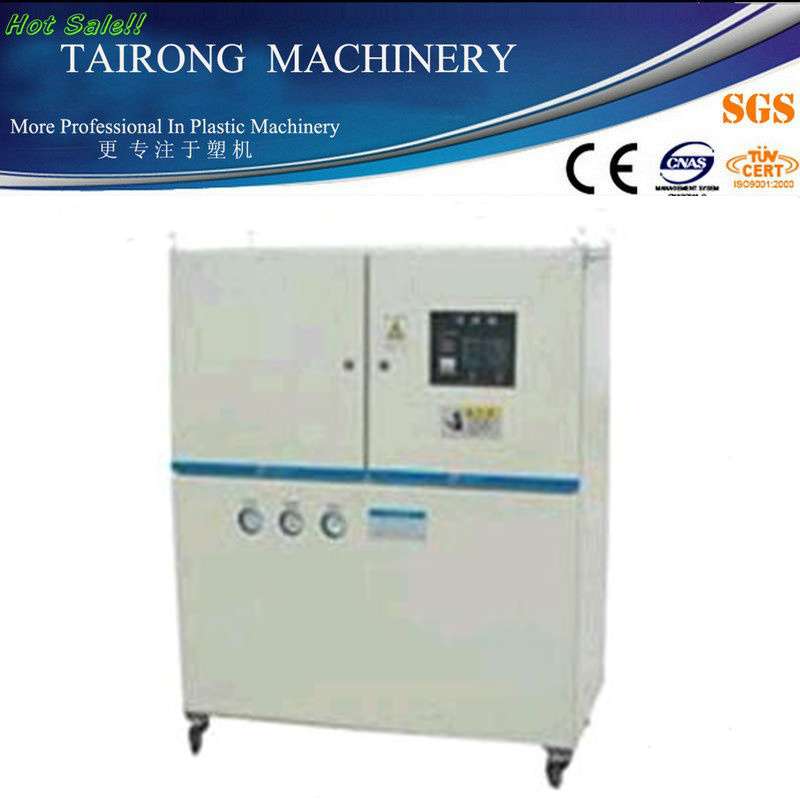

Mould Cooler/Cold Water Machine/Water Chiller
Application
The products are mainly suitable for cooling plastics mould and injector fuel tank. Through rapidly cooling, it will shorten the cycle time of operation so as to raise productivity and improve plastics quality, and it also serves as a necessary refrigerating device for computerize tomography machine(CT) in hospital, chemical reaction pool, precision instrument, workshop and etc.
Features
Import positive seal compressor which provides and efficiency and strong ability of freezing
Sweden transheater in Sweden AFLA valve style
Japan RKC meter, providing high precision of controlling temperature
Attachment of refrigeration produces by American ALCO Inc. Assures the main engine in high quality motion.
This product is in high level of automation, well-knit moulding, graceful appearance, simple operation and economical energy.
1. SML Series Mould Cooler (Cold Water Machine)
Application
The products are mainly suitable for cooling plastics mould and injector fuel tank. Through rapidly cooling, it will shorten the cycle time of operation so as to raise productivity and improve plastics quality, and it also serves as a necessary refrigerating device for computerize tomography machine(CT) in hospital, chemical reaction pool, precision instrument, workshop and etc.
Features
Import positive seal compressor which provides and efficiency and strong ability of freezing
Sweden transheater in Sweden AFLA valve style
Japan RKC meter, providing high precision of controlling temperature
Attachment of refrigeration produces by American ALCO Inc. Assures the main engine in high quality motion.
This product is in high level of automation, well-knit moulding, graceful appearance, simple operation and economical energy.
SML Series Product Line
Main Technical Parameter (Water Cooled):
Model SML-2S SML-3S SML-4S SML-6S SML-7S
Power 380V, 50Hz
Cooling volume(Kcal/h) 6000 7500 12500 18000 22600
Pressor way COPELAND AIRPROOF, USA
Power ratio(HP) 2 3 5 7.5 10
Cool coal water cooling additive R22
Running method self operating
Steamer plate or pipe
Water temp. 15 (5-30)
Frozen water(m3/h) 3.2 3.2 6.3 6.3 8
Inlet water pipe 1" 1" 1" 1" 1.5"
Cooling water condenser
Water temp. ≤ 36
Cooling water flow m3/h 3 4 5 7 8
Entry water pipe 1" 1" 1" 1" 1"
Safe device high, low pressure, stop water, overload, anti-frozen, water keeping in compressor.
Appearance Size(L× W× H)mm 500× 780× 1300 1105× 600× 1400
Weight (kg) 150 200 250 300 350
Model SML-9S SML-10S SML-11S SML-12S
Power 380V, 50Hz
Cooling volume(Kcal/h) 34000 47000 68000 94000
Pressor way COPELAND AIRPROOF, USA
Power ratio(HP) 15 20 15x2 20x2
Cool coal water cooling additive R22
Running method self operation
Steamer plate or pipe
Water temp. 15 (5-30)
Frozen water(m3/h) 16 16 18 22
Inlet water pipe 2" 2" 2-2" 2-2"
Cooling water condenser
Water temp. ≤ 36
Cooling water flow m3/h 15 17.5 30 35
Inlet water pipe 1.5" 1.5" 2-11/2" 2-11/2"
Safe device high, low pressure, stop water, overload, anti-frozen, water keeping in compressor.
Appearance Size(L× W× H)mm 1700× 800× 1200 2000× 800× 1700
Weight (kg) 550 600 700 750
TAIRONG Group is founded in 1998, We are the leading brand of plastic machinery manufacturer in China. TAIRONG Group have 4 main business sections:
• High efficiency, Energy saving European standard extrusion line
• Plastic recycling & washing line
• PVC mixing and precision metering system
TAIRONG Group owns two subsidiary companies:
• Zhangjiagang Tairong Machinery Co., Ltd.
• ANHUI YIDA Extrusion Pipe Co., Ltd
TAIRONG Group is located in national economy development zone, Zhangjiagang city, Jiangsu province(120KM from Shanghai), the headquarters have 60000m2 office building and high standard workshops with 300 well trained professional employees. By the company's philosophy "Quality is our foundation, Credibility is our faith, aspire for win-win ", team of TAIRONG have clear goal and dedicate to development of technology and quality. Now we are ranked as the top 5 plastic extrusion machinery corporation in China. The champion of exporting in Zhangjiagang for 9 years-in-a-row. Our products serviced hundreds of plastic companies over 70 nations and regions worldwide, generated great value for our client to develop business in different field. TAIRONG Group is awarded as National high & new technology enterprises, national Torch Program enterprises, provincial famous trademark, provincial contract and trustworthy enterprise.
In the future, TAIRONG Group will follow the strategy of Industry 4.0 and China Industry 2025, focus on intelligence manufacturing, informationization management and technological innovation. We had setup several platforms for innovation and research:
• The provincial enterprise R&D center
• Trashed plastic recycling engineer research center
• Post-doctor laboratory
• Workstation of the municipal program "Thousand talents recruitment"
Since 2003, above platforms was born 80 national patents, 30 of it are innovation patents. 50 patents for utility model, 30 authorized patents and provincial high & new technology accomplishment. Award as high & new technology enterprise by office of science and technology of provincial government. For the purpose of supply well cost/performance industry solution to our clients, TAIRONG Group recruited a European engineer team which members are specialized in top plastic machinery engineering. They work together with our R&D team to improve quality and design of the product to narrow the gap toward the top European machines.
Our mission is to provide leading solutions to our customers with our sincere attitude, both in terms of performance and energy efficiency. Our vision is achieve the goal of top global plastic machinery system manufacturer. As the standing council unit of the China plastics machinery industry association, we work closely with up & down stream business partners, as well as build up long term strategy partnership with international and domestic universities and institutions. We aspire the best combination of theoretical research, practical applications and mass production, in order to explore a sustainable development path toward success.
