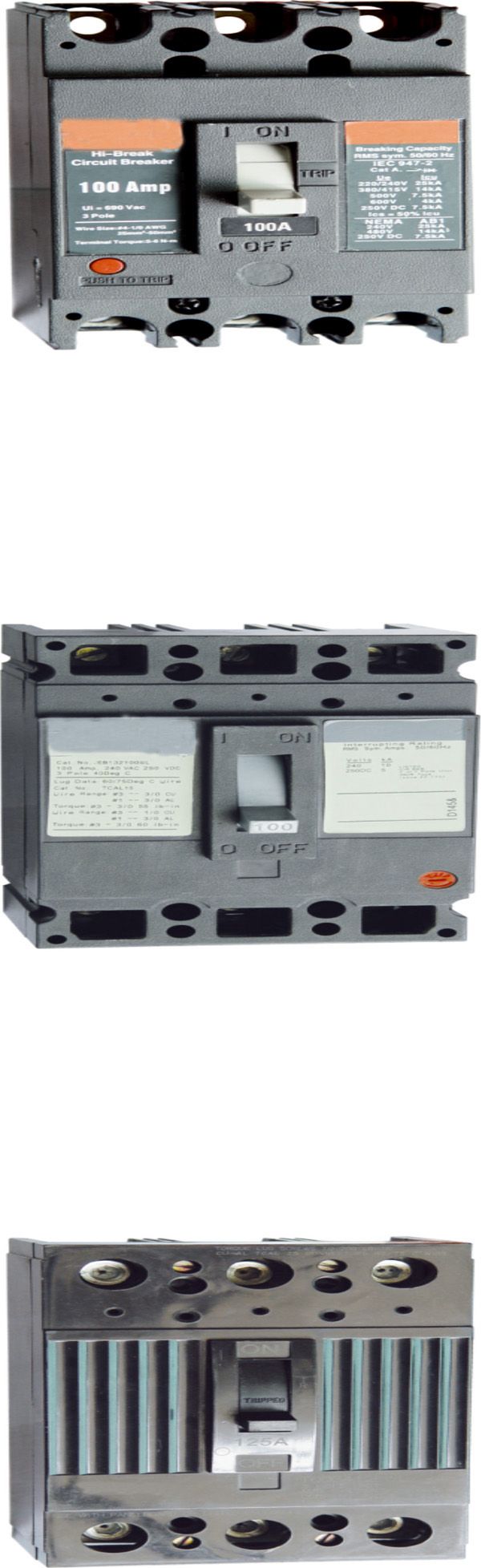

Moulded Case Circuit Breaker (ETCD\EEB\EQD Series)

Prod Model:	ETCD\EEB\EQD Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	3/4
Rated Current In:	12.5,16,20,25,32,40,50,63,400,630,800,1250,1600
Rated Insulation Voltage Ui:	500V/400V/690V
Rated Operating Voltage Ue:	230V/400V
Dielectric Property:	2500V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	Semko
Poles Number:	3p,4p

Product Description

Application
ETCD\EEB\EQD Series moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 660V and used for circuit of A.C.50Hz, rated operating voltage AC 380V.  (Or below), rated operating current up to 225A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short-circuit and under-voltage, the products are capable of preventing damage of  circuits and supply units.

About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
