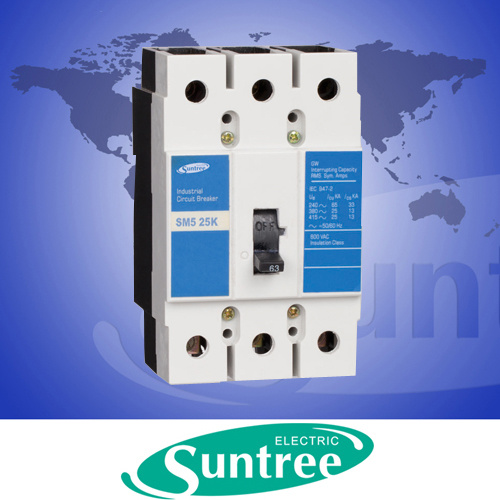

Moulded Case Circuit Breaker (Fixed Thermal -Magnetic Type)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SM5-25K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Payment: |
T/T, L/C, Paypal |
| Brand: |
Suntree |
| MOQ: |
10set |
| Quality: |
Best |
| Pole: |
3p, 4p |
| Voltage: |
660V/690V |
| Wiring: |
with an External Line |
| Hs: |
853620000 |
| Type: |
Sun1 |
| Function: |
Overcurrent Protection~@~Circuit-Breaker Failure P |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
Product Description
SM5 series circuit breaker including 7 basic frames, frame current
from 100 to 1600A. each frame has up to 415V 100kA short circuit
breaker capacity multiple choice, more flexibility in design, and save
space as well.
SM5 series circuit breaker can be used in DC situation as well. 630A
frame 3p circuit breaker concatenation used in DC600V breaking
capacity can reach 40kA.
|
Frame current(A) |
100 |
160 |
225 |
225 |
250 |
|
Model |
GWF |
FWF |
FW |
HFW |
FWC |
FWF |
HFWF |
FWCF |
JW |
HJW |
JWC |
|
|
|
Breaking capacity(kA ms)
AC 50 |
/60Hz lcu |
18 |
|
65 |
40 |
85 |
100 |
200 |
85 |
100 |
200 |
85 |
100 |
200 |
|
220-240VAC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
lcs |
9 |
|
33 |
40 |
85 |
100 |
150 |
85 |
100 |
150 |
85 |
100 |
150 |
|
|
lcu |
- |
|
25 |
- |
40 |
70 |
100 |
40 |
70 |
100 |
40 |
70 |
100 |
|
380-415VAC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC |
lcs |
- |
|
13 |
- |
40 |
70 |
75 |
40 |
70 |
75 |
40 |
70 |
75 |
|
60974-2 |
lcu |
- |
|
- |
- |
12 |
14 |
18 |
12 |
14 |
18 |
14 |
18 |
22 |
|
660-690VAC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
lcs |
- |
|
- |
- |
6 |
7 |
9 |
6 |
7 |
9 |
7 |
9 |
11 |
|
|
lcu |
- |
|
10 |
- |
10 |
20 |
20 |
10 |
20 |
20 |
10 |
20 |
20 |
|
250VDC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
lcs |
- |
|
5 |
- |
5 |
10 |
10 |
5 |
10 |
10 |
5 |
10 |
10 |
|
240VAC |
|
18 |
|
65 |
- |
65 |
100 |
200 |
65 |
100 |
200 |
65 |
100 |
200 |
|
NEMA 480VAC |
|
- |
|
22 |
25 |
25 |
65 |
100 |
25 |
65 |
100 |
35 |
65 |
100 |
|
600VAC |
|
- |
|
- |
- |
18 |
25 |
35 |
18 |
25 |
35 |
18 |
25 |
35 |
|
Number of poles |
|
1 |
|
2, 3 |
1 |
|
|
|
2, 3, 4 |
|
|
|
2, 3, 4 |
|
|
Rated current |
|
|
16-100A |
|
16-160A |
|
16-225A |
|
|
16-25A |
|
|
125-250A |
|
|
Trip unit |
Interchangeable type Fixed type |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fixed thermal type |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Thermal-magnetic |
Adjustable termal type Magnetic type |
|
Fixed |
|
Fixed Fixed Fixed, Adjustable |
Fixed |
Adjustable |
|
|
|
|
|
|
|
|
|
LS |
|
- |
|
- |
|
- |
|
|
|
|
|
|
|
|
|
LSI |
|
- |
|
- |
|
- |
|
|
|
|
|
|
|
|
Rms solid |
LSG |
|
- |
|
- |
|
- |
|
|
|
|
|
|
|
|
|
LSIG |
|
- |
|
- |
|
- |
|
|
|
|
|
|
|
|
|
|
H |
W |
D |
H W |
D |
H W D |
|
|
|
|
|
|
|
|
|
1P |
123.8 |
254.4 |
66.7 |
152.4 35 |
86 |
--- |
|
|
|
|
|
|
|
|
Dimensions |
2P |
123.8 |
50.8 |
66.7 |
152.4 70 |
86 |
--- |
|
|
|
|
|
|
|
|
(mm) |
3P |
123.8 |
76.2 |
66.7 |
152.4 105 |
86 |
177.8 105 103 |
|
|
|
|
|
|
|
|
|
4P |
|
|
|
152.4 140 |
86 |
177.8 140 103 |
|
|
|
|
|
|
|
|
Weight(kg) |
|
IP0.4 |
2P0.7 |
3P1 |
|
|
2P5.2 3P5.2 4P7.0 |
|
|
|
|
|
|
|
