| Prod Model: |
RDM108 |
| Frequency: |
AC50Hz |
| Rated Current: |
0.1A up to 63A |
| Rated Operate Voltage: |
up to 660V |
| Using Type: |
Distribute Power, Motor, Overload, Short-Circuit |
| Rated Insulation Voltage: |
660V |
| Pole: |
3p |
| Tripping Current Range: |
Selectable |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Application

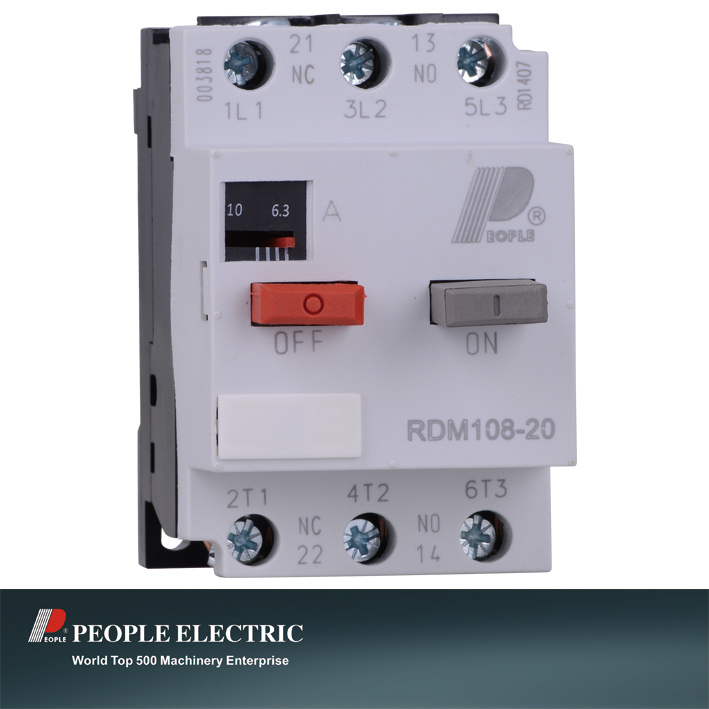

RDM108 series Moulded case circuit breaker(MCCB), is applied to circuit of AC50Hz or 60Hz,rated operate voltage up to 660V,rated current from 0.1A up to 63A,as voerload and short-cirucit protection for low-capacity motor and circuit,and it also can work for unfrequent transfering circuit or directly motor starting. Under AC-3 load condition,this product can be used for direct starting and stoping motor under full-voltage,and protect motor against oveload and short-circuit .
This production conforms to the standard of IEC60947-2 and GB14048.2.
Normal operational conditions and installation conditions
3.1 Temperater: no higher than +40ºC,and no lower than -5ºC,and the day average temperature no higher than +35ºC.
3.2 Altitude: no higher than 2000m
3.3 The relative humidity: no more than 50%,when temperature is +40ºC.The product can withstand higher humidity under lower temperature,for instance,when it at +20ºC,the production can withstand 90% relative humidity.
The condensation that happened because of temperature changes should be taken care.
And Installation location should have no exploresion danger, and no gas and conductive dust which can cause corrosion and insulation damage.
3.4 Class of pollution: 3 Calss
3.5 Main circuit breaker installation type:III Class
3.6 Installation basic conditon:Vertical installation,no obvious vibration and impact,no rain and snow influence.
For more details and information,please contact us with no hesitate
Or visit our website: http://www.chinapeople.com
| Model | Rated current A | Release current setting range A | Model | Rated current A | Release current setting range A |
RDM108-20 | 0.16 | 0.1~0.16 | RDM108-32 | 1.6 | 1~1.6 |
| 0.25 | 0.16~0.25 | 2.5 | 1.6~2.5 |
| 1.4 | 0.25~0.4 | 4 | 2.5~4 |
| 0.63 | 0.4~0.63 | 6.3 | 4~6.3 |
| 1 | 0.6~1 | 10 | 6.3~10 |
| 1.6 | 1~1.6 | 12.5 | 8~12.5 |
| 2.5 | 1.6~2.5 | 16 | 10~16 |
| 3.2 | 2~3.2 | 20 | 12.5~20 |
| 4 | 2.5~4 | 25 | 16~25 |
| 5 | 2.5~4 | 32 | 22~32 |
| 6.3 | 3.2~5 | RDM108-63 | 10 | 6.3~10 |
| 8 | 5~8 | 16 | 10~16 |
| 10 | 6.3~10 | 25 | 16~25 |
| 12.5 | 8~12.5 | 32 | 22~32 |
| 16 | 10~16 | 40 | 28~40 |
| 20 | 14~20 | 50 | 36~50 |
|
| 63 | 45~63 |
