Moulded Case Circuit Breaker

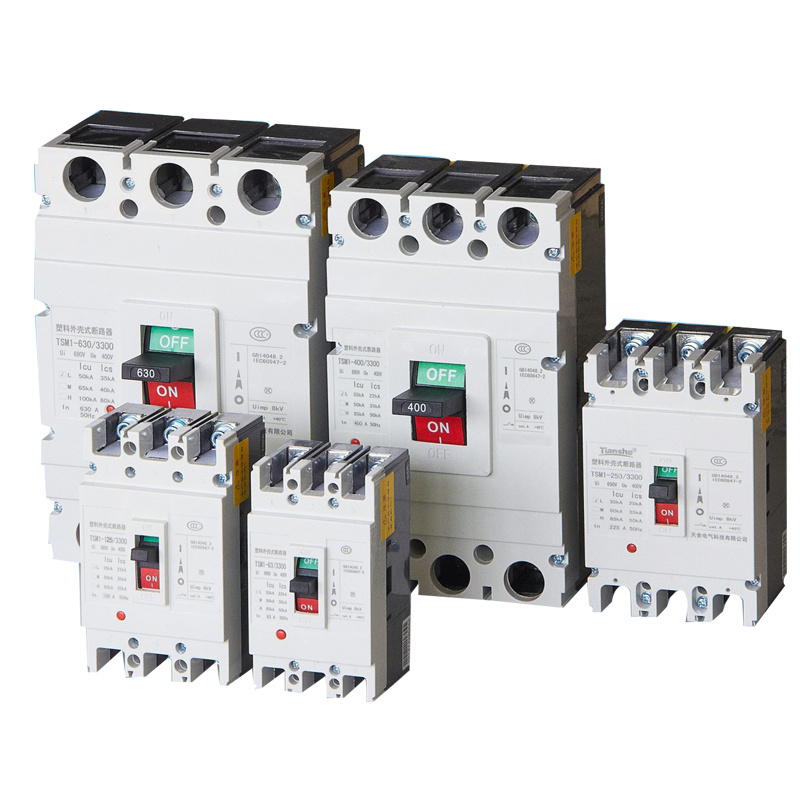

Name: Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 818324825
Availability: InStock
Rating: 5 (130 reviews)

Price:	US $ 10-30/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPD-11
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC
Operation:	electric Type or Manual Type

Product Description

Application:

PRM1moulded case circuit breaker is suitable for circuit AC 50Hz, rated voltage up to and below AC 690V, rated operating current to 800A.
Merged with international latest advanced technology, it is compact, modularized, environment-friendly, with high breaking and zero arc-over capabilities. MCCB works well under electric circumstance of AC50Hz, 690V(or lower), 12.5-1600A, which can effectively increase the efficiency of power distributing & protect the whole system against harms caused by overload, undervoltage or short circuit to protect lines and power appliances from damage. It also can be used as a non-frequent switch for your engine/system.

Type:

The MCCB can be devided into L;M;H types according to their rated limit short-circuit breaking capacity.
The MCCB can be devided into Vertical and Horizontal according to the Installation classification.

Normal working situation:

Altitude 2000m and below;
Temperature no higher than+40ºC(45ºC for watercraft)no less than-5ºC;
Withstand moist air;
Withstand salty&oil pollution, the impact of nuclear radiation
Most gradient 22.5°;
Atmosphere without corrupt&electric air and no danger of explosion;
Without rain effect.
Pollution level:three
should be installed where no rain and snow

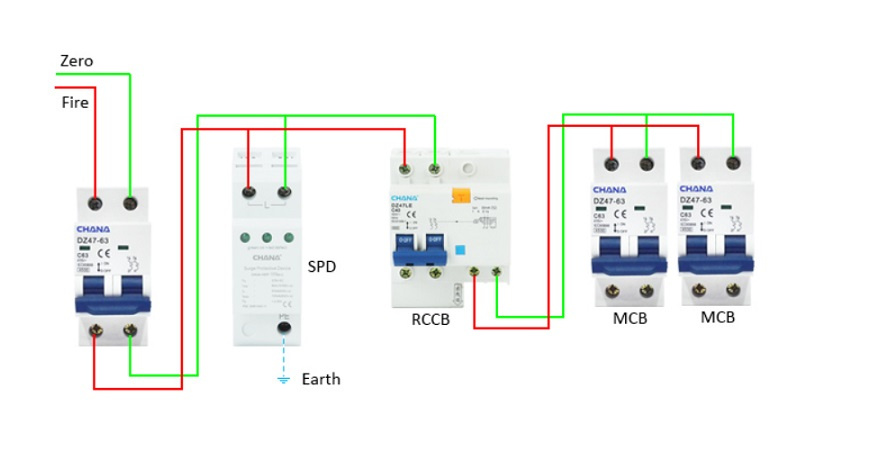

Circuit diagram:
