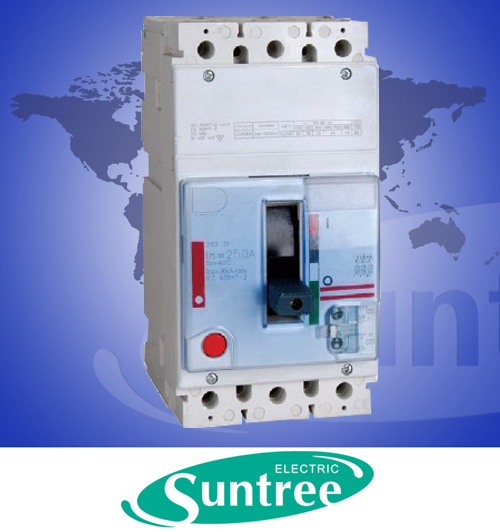

Moulded Case Circuit Breakers (SDPX type)

Name: Moulded Case Circuit Breakers (SDPX type)
Brand: all-electronics-online.com
SKU: 695266915
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	690V
All Standard:	Iec947-2
Type:	Circuit Breaker
Function:	OVP(Overvoltage Protection)
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

DPX series is one of the most advanced type breakers in the world,
Which adopt international advanced design and manufacture technology.
They are suitable for short circuit and overload protection for circuit of AC 690V, 50/60Hz,
Rated current from 12.5 to 1600A 3P 4P ALLOWED. It can make and break non-frequent, breaking off working and protecting overload, short circuit and under voltage.
It con-forms to IEC60947-2 standard

Rated current of release(A)	Thermodynamic release(ambient temp+40)		Operational current of magnetic release(A)
Rated current of release(A)	1.05In(cold state) inoperative time(h)	1.30In(heat state) inoperative time(h)	Operational current of magnetic release(A)
In≤ 63	≥ 1	< 1	10In± 20%
63< In≤ 100	≥ 2	< 2	10In± 20%
100< In≤ 630	≥ 2	< 2	5-10In± 20%

Rated current of release(A)	Thermodynamic release(ambient temp+40)				Operational current of magnetic release(A)
Rated current of release(A)	1.0In(cold state) inoperative time	1.2In(heat state) inoperative time	1.50In(heat state) inoperative time	7.2In(heat state) inoperative time	Operational current of magnetic release(A)
12.5≤ In≤ 400	≥ 2h	< 2h	≤ 4min	2S< Tp≤ 10S	12In± 20%
