Movable Connector Temperature Transmitter for Water or Oil Measurement
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PCT200B |
| Temperature Range: |
-50ºC~250ºC |
| Supply & Output: |
4~20mA(16~36VDC) |
| Sensing Element: |
PT100 Grade a |
| Response Time: |
≤30s |
| Long Term Stability: |
≤0.2%Fs/Year |
| Insertion Diameter: |
Φ8mm |
| Storage Temp.: |
-40ºC~85ºC |
| Electrical Connection: |
DIN43650 |
| Material: |
304 |
| Max. Mounting Torque: |
25nm |
| Accuracy Grade: |
±0.5%Fs(Typ.) |
Product Description
Product overview PCT200B Temperature Transmitter with Normal / Movable Connector is a specially designed transmitter for easy installation. It adopts imported high-performance, high-reliability platinum resistance, goes through precise temperature and non-linear compensation, and employs good performance modular signal processing technology to measure and calibrate medium temperature and output industrial control standard signals.The product shell adopts all-stainless steel integrated processing, featuring small size, fast thermal response, etc. The wire adopts special shielded wire which has a wide temperature range. PCT200B is easy to install and has extremely high vibration resistance and shock resistance.FeaturesMovable connector, easy to installHigh strength, high pressure resistanceIntegrated structureLong-term stable workFast responseReliable structureApplicationsEquipment supportAutomatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc. Performance parameters
|
| Temperature range | -50ºC~250ºC |
| Supply & output | 4~20mA(16~36VDC) |
| Accuracy | ±0.5%FS(typ.) |
| Sensing element | Pt100 Grade A |
| Insulation strength | 100MΩ/250VDC |
| Response time | ≤30s |
| Long term stability | ≤0.2%FS/year |

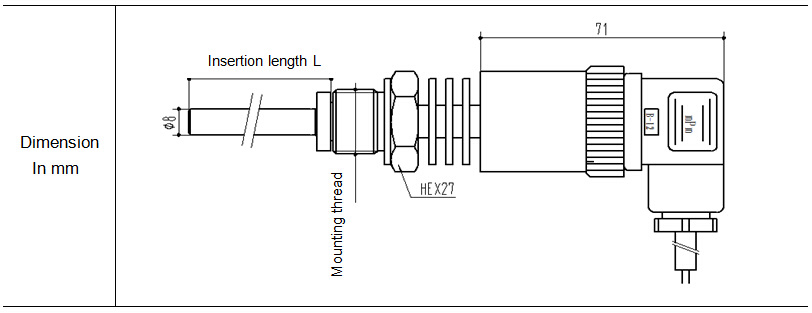

| Insertion diameter | Φ8mm |
| Storage temp. | -40ºC~85ºC |
| Electrical connection | DIN43650 |
| Protection | IP65 |
| Material | 304 |
| Max. mounting torque | 25Nm |
Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure. Pressure range selection
|
| Pressure range code | Pressure range | Remark |
| T1 | -50ºC~100ºC | |
| T2 | -50ºC~150ºC | |
| T3 | -50ºC~200ºC | |
| T4 | -50ºC~250ºC | |
| T5 | 0ºC~100ºC | |
| T6 | 0ºC~150ºC | |
| T7 | 0ºC~200ºC | |
| T8 | 0ºC~250ºC | |

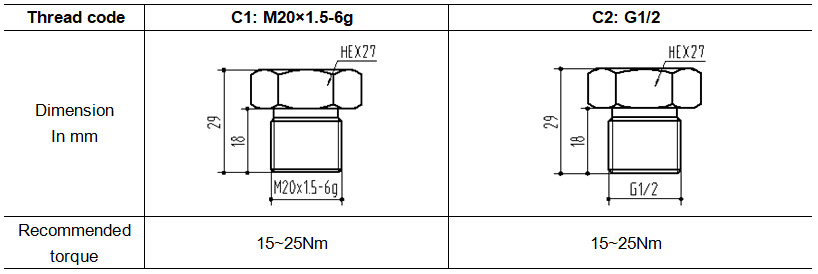

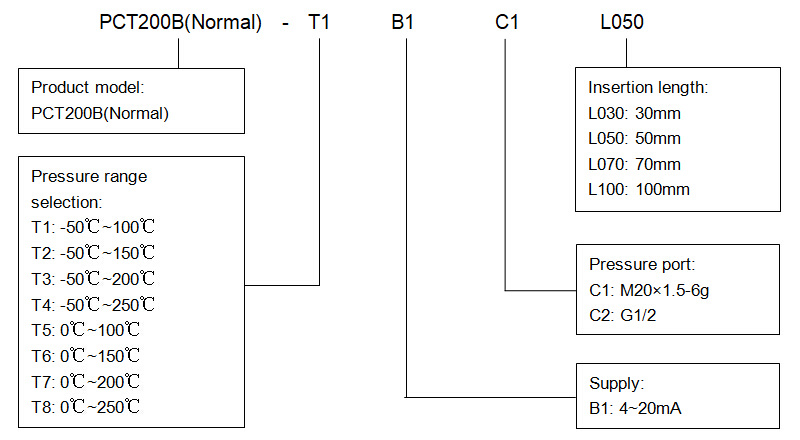

Example: PCT200B(Normal)-T2B1C1L050Refer to product model PCT200B(Normal), temperature range -50ºC~150ºC, supply 16~36VDC, output signal 4~20mA, pressure port M20×1.5-6g, insertion length 50mm.Ordering tips:- Ensure compatibility between measured media and contacting part of product.
- For special requirements on the product appearance and performance parameters, customization is available.
