| Prod Model: |
MP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage Ui(V): |
660V |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CB |
Product Description
Application

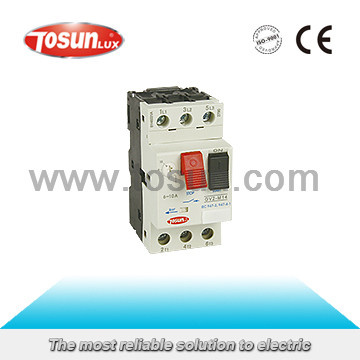

MP Motor Protection Circuit Breaker MPCB is mainly used for the overload and short circuit protection of the motor in AC 50/60 Hz,up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
Specification
Type | Rated standard power of 3-phase motors 50/60 Hz in category AC-3 | Setting Range(A) |
220V | 380V | 415V | 440V | 500V | 660V |
| KW | KW | KW | KW | KW | KW |
MP2-M01 | - | - | - | - | - | - | 0.1-0.16 |
MP2-M02 | - | - | - | - | - | - | 0.16-0.25 |
MP2-M03 | - | - | - | - | - | - | 0.25-0.4 |
MP2-M04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
MP2-M05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
MP2-M06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
MP2-M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
MP2-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
MP2-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
MP2-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
MP2-M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
MP2-M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
MP2-M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
MP2-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
MP2-M32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
MP2-M25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
MP2-M40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
MP2-M63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
MP2-M80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |
Why Choose Us?1. Client's benefit first2. ReputationThe reputation of our company is much more previous than the profit of business!3. Specialized Have been focusing on this line specially for more than 21 years!4. Fully guaranteed qualityAny defective occurs during the warranty period, 100% free replacement!5. Competitive priceCountrywide networked supply of spare parts and goods makes our products be competitive.6. InnovationDeveloping new idea for products, packing, service, and so on continuouslyAbout Us We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products and so on.· Qualifications and Technological Strength We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "ROHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.· Contact Us Today We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.Let's get busy and pull together to create a better future.
For Further Informationwww.tosun.comwww.tosunlux.com
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
· Qualifications and Technological Strength

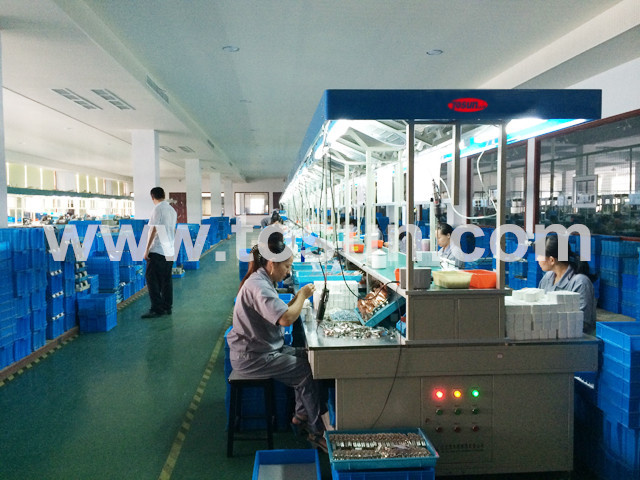

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.
