| Prod Model: |
MPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Medium: |
Single-Mode |
| Structure: |
Sc |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(Upc) |
| Shape: |
Strip |
| Fabrication Process: |
Moulded |
| Light Source Type: |
Laser |
| Connector Type: |
Sc-PC |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
FC-MTRJ |
| Certification: |
CE |
| Application: |
Network Equipment |
| Brand: |
OEM or Geyida |
| Sheath Material: |
PVC/LSZH |
Product Description

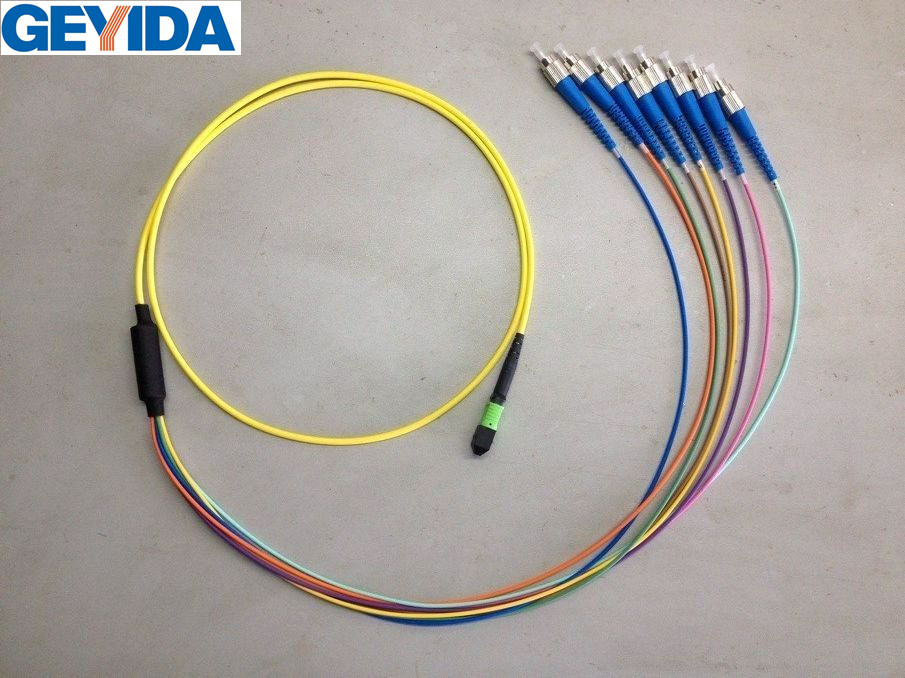

MPO Female 8-ST/UPC
Features:
High Performance in IL & RL
Available in 8, 12 and 24 fiber
Precise dimension
100% in-house tested
Customized furcation length to cater for different installation situations
Single-fiber connector interface available in SC, ST, LC, E2000, MTRJ, in forms of Simplex or Duplex channelling
The choice of the supports higher speed Ethernet and Fibre Channel applications (OM3, OM4 and OS1/OS2 fibers),
And applications with legacy multimode fiber (OM1 or OM2)
Applications:
Data Centre Infrastructure
Storage Area Network-Fiber Channel
Emerging 40 & 100GPS Protocols
MPO CONNECTOR
Fiber Type Singlemode (APC Polish) Multimode (PC / Flat Polish)
Parameter Standard Lowloss Standard Lowloss
Insertion Loss Maximum <0.70dB <0.35dB <0.70dB <0.35dB
Return Loss >60dB None
Durability 500Matings
Operating Temperature -40 C to 80 C
Test Wavelength 1310nm 850nm
CENERIC CONNECTOR
Fiber Type Singlemode Multimode
Parameter UPC APC UPC
Insertion Loss Maximum <0.30dB
Return Loss >55dB >60dB >25dB
Durability 1000Matings
Operating Temperature -40 C to 80 C
Test Wavelength 1310nm 850nm
Company's main products:
The product line includes all kinds of outdoor optical cable, indoor optical cable, optical line jumpers, and optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat with "business" spirit of enterprise, and in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. We committed to building brand integrity, and in order to become the optic communication market-oriented, we need to have innovative efforts to develop and produce products with excellent performance. Our mission is to let the company become the first-class modernized enterprise and we will keep trying with unremitting efforts. Hope that our company can have mutual benefit while establishing business relations and cooperate with domestic and foreign enterprises, and develop and create a brilliant future with you! !

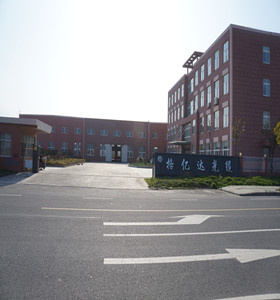

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.
