MPO Female to MPO Female 12 Cores Multi-mode Trunk Cable

Name: MPO Female to MPO Female 12 Cores Multi-mode Trunk Cable
Brand: all-electronics-online.com
SKU: 822272335
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 20-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-002
Color:	Aqua
Jacket Material:	LSZH
Fiber Count:	12
Lenth:	16FT
Connector A:	MPO
Connector B:	MPO
Polarity:	A
Method:	A
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO

Product Description

MPO Female to MPO Female 12 Cores Multi-mode Trunk Cable

PUNO's MTP^® Trunk Cable, a cost-effective alternative to time-consuming field termination, is designed for
high-density fiber patching in data centers which need space saving and reduce cable management troubles. Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Feature:

√ Precision molded MT ferrule;
√ High precision guide pins for exact alignment;
√ Compact design, up to 4,8,12,24 fibers;
√ IEC 61754-7 Compliant;
√ EIA/TIA-604-5 Compliant.

Applications

√ Access Network
√ Telecom/CATV Systems
√ FTTx

Product Details:

Connector A	MPO	Connector B	MPO
Fibre Mode	Multimode, OM3	Wavelength	850/1300nm
Polish Type	UPC to UPC	Mini Bend Radius	30mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N

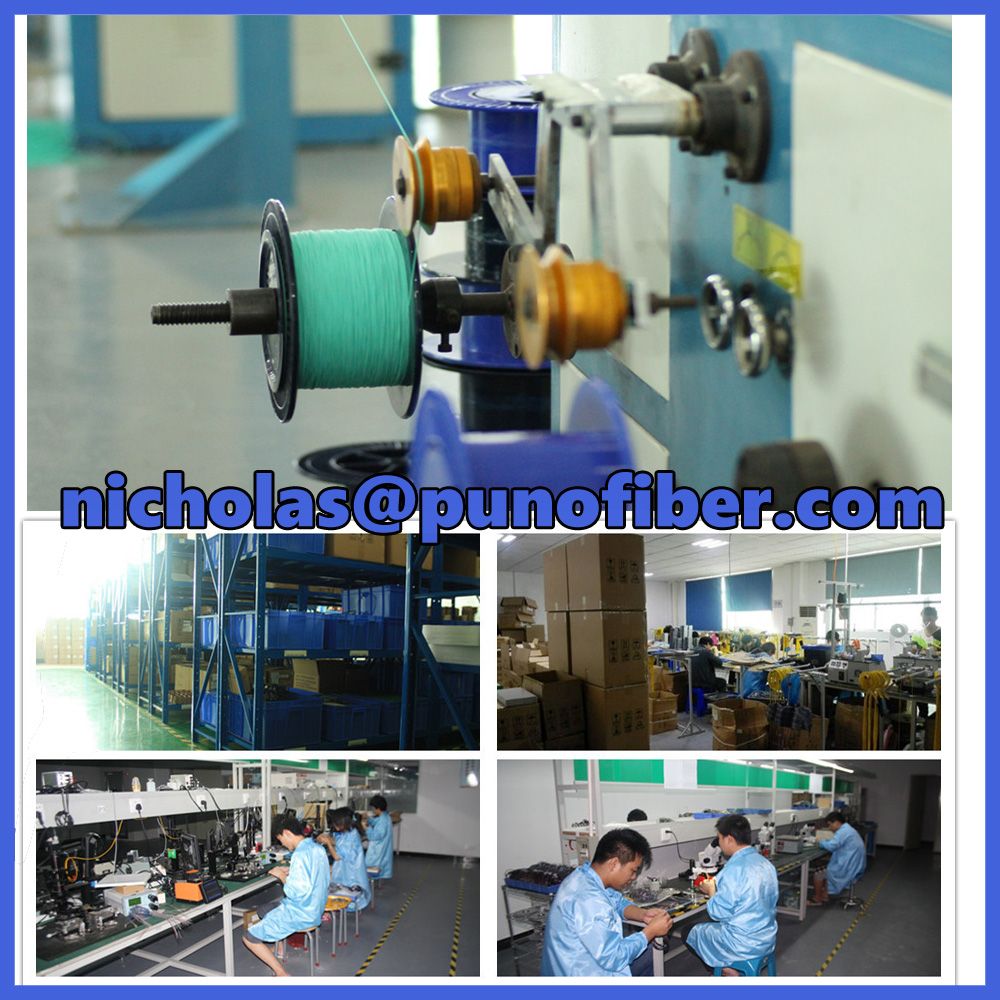

Workshop Overviews:

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
